Test B: Scan Tool Will Not Communicate With Class 2 Data Line

Refer to flowchart. See Fig 1 and Fig 2 .

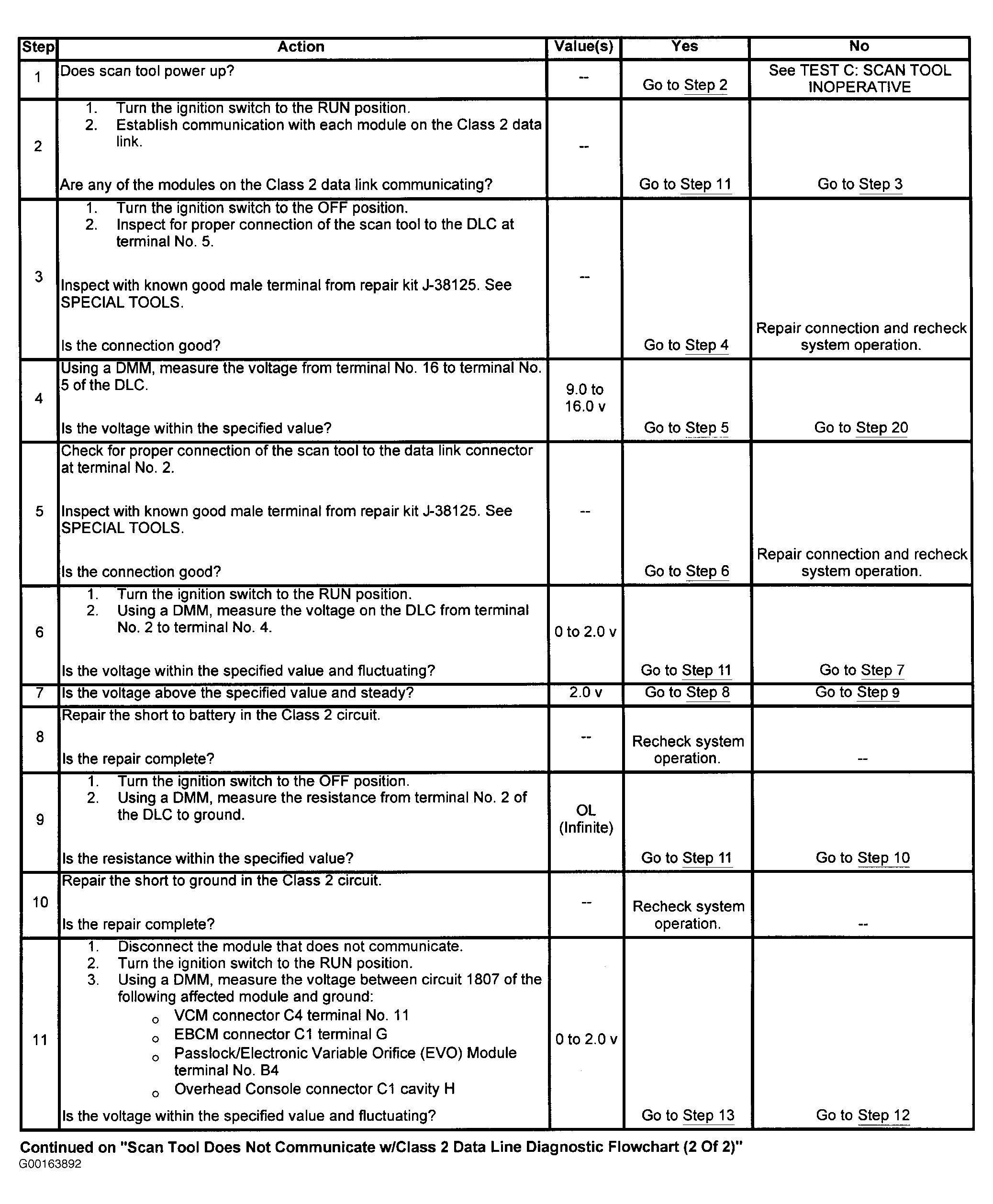

Fig 1: Scan Tool Will Not Communicate With Class 2 Data Line Diagnostic Flowchart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

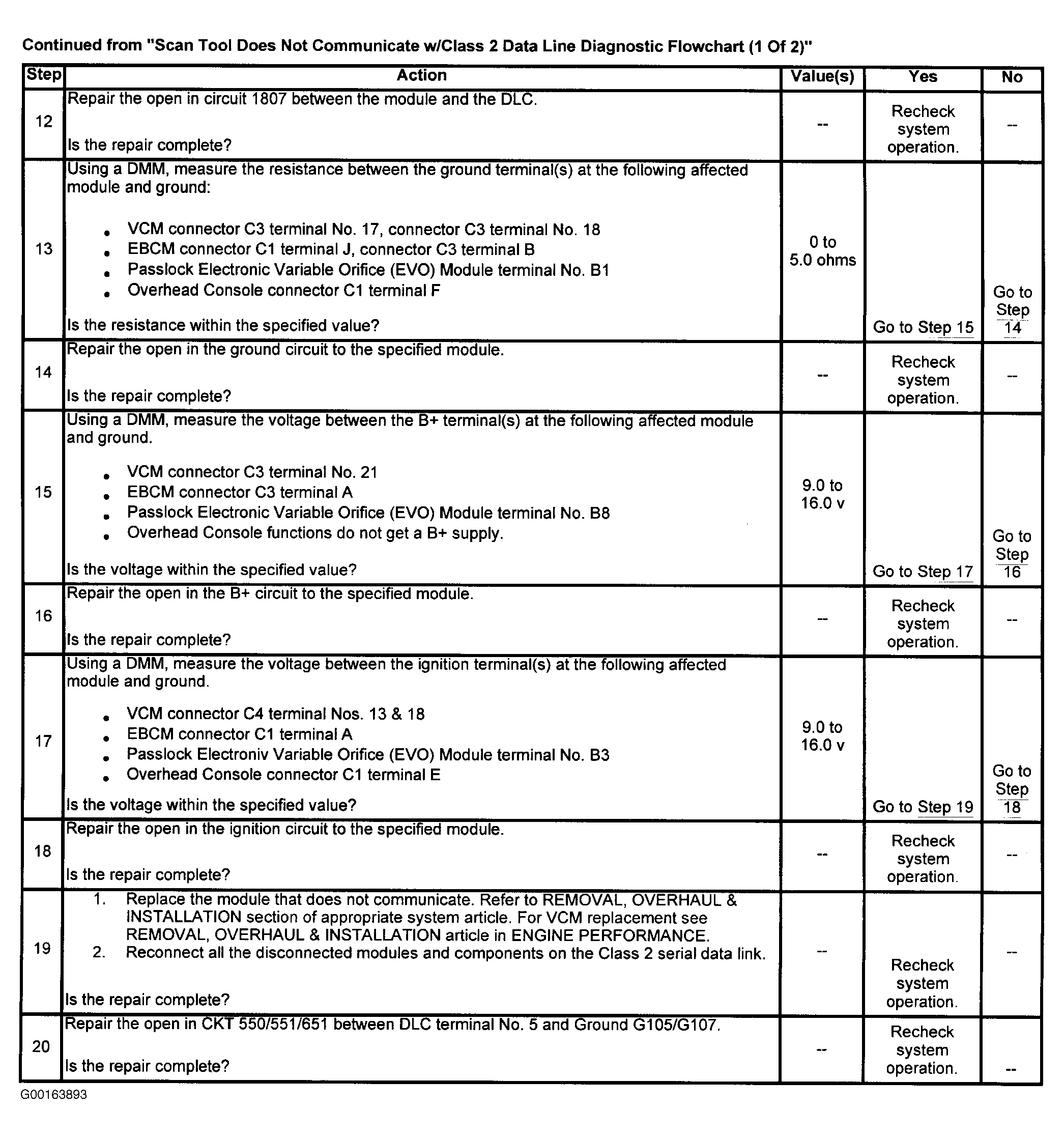

Fig 2: Scan Tool Will Not Communicate With Class 2 Data Line Diagnostic Flowchart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
