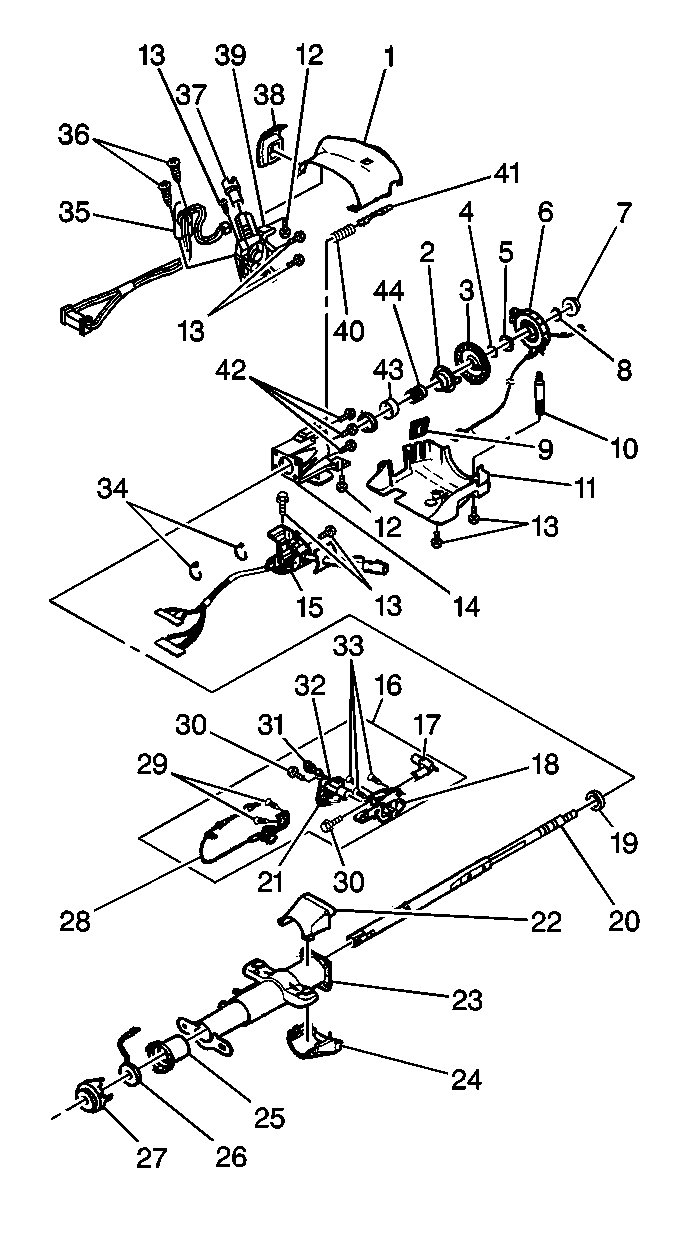

Steering Column Disassembled View
Steering Column Disassembled View Callouts
| 01 | Shroud, Upper |
| 02 | Cam Asm, Turn Signal Cancel |
| 03 | Shield Asm, Shaft Lock |
| 04 | Ring, Retaining |
| 05 | Washer, Wave |
| 06 | Coli Asm, SIR |
| 07 | Nut, Locking |
| 08 | Ring, Retaining |
| 09 | Protector, Shroud |
| 10 | Stud, Shroud Mounting |
| 11 | Shroud, Lower |
| 12 | Screw, TORX® Head |
| 13 | Screw, Pan Head Tapping |
| 14 | Housing Asm, Steering Column |
| 15 | Switch Asm, Multifunction |
| 16 | Shift Asm, Linear |
| 17 | Clevis, Shift Lever |
| 18 | Bracket, Lever Asm Support |
| 19 | Ring, Retaining |
| 20 | Shaft Asm, Steering |
| 21 | Bushing, Cam |
| 22 | Guide Asm, Steering Column |
| 23 | Jacket Asm, Steering Column |
| 24 | Guide Asm, Steering Column |
| 25 | Bearing Asm, Adapter |
| 26 | Sensor, Steering Wheel Speed |
| 27 | Cover, Protective |
| 28 | Cable Asm, Park Lock |
| 29 | Screw |
| 30 | Bolt, Hex Flange Head |
| 31 | Actuator Asm, Ball |
| 32 | Cam Asm, Cable Shift |
| 33 | Screw |
| 34 | Strap, Wire Harness |
| 35 | Switch Asm, Ignition and Key Alarm |
| 36 | Screw, Tapping |
| 37 | Lock Cylinder Set, Steering Column |
| 38 | Seal, Shift Lever |
| 39 | Module Asm, Lock |
| 40 | Spring, Lock Bolt |
| 41 | Bolt Asm, Lock |
| 42 | Screw, TORX® Head |
| 43 | Washer, Thrust |
| 44 | Spring, Upper Bearing |
