UNDERHOOD Fuse Panel Identification: Notes

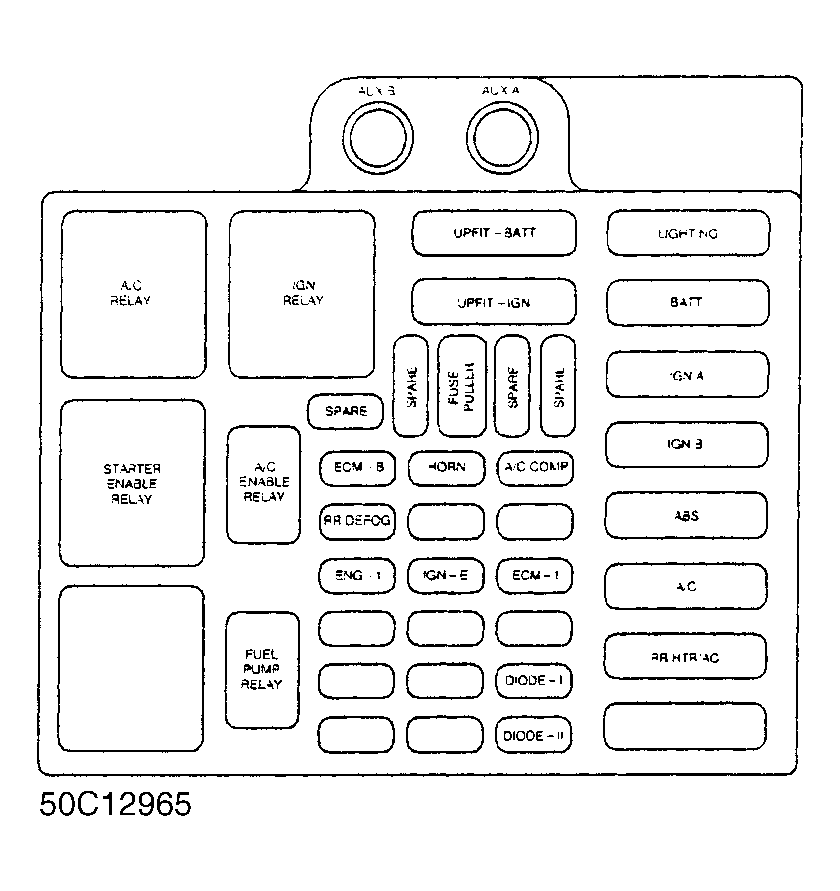

Fig 1: Underhood Fuse Panel Identification

G50C12965

Courtesy of GENERAL MOTORS CORP.
