Front End Discriminating Sensor: Installation
WARNING: This page is about a different car, the 1997 GMC Safari and 1997 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

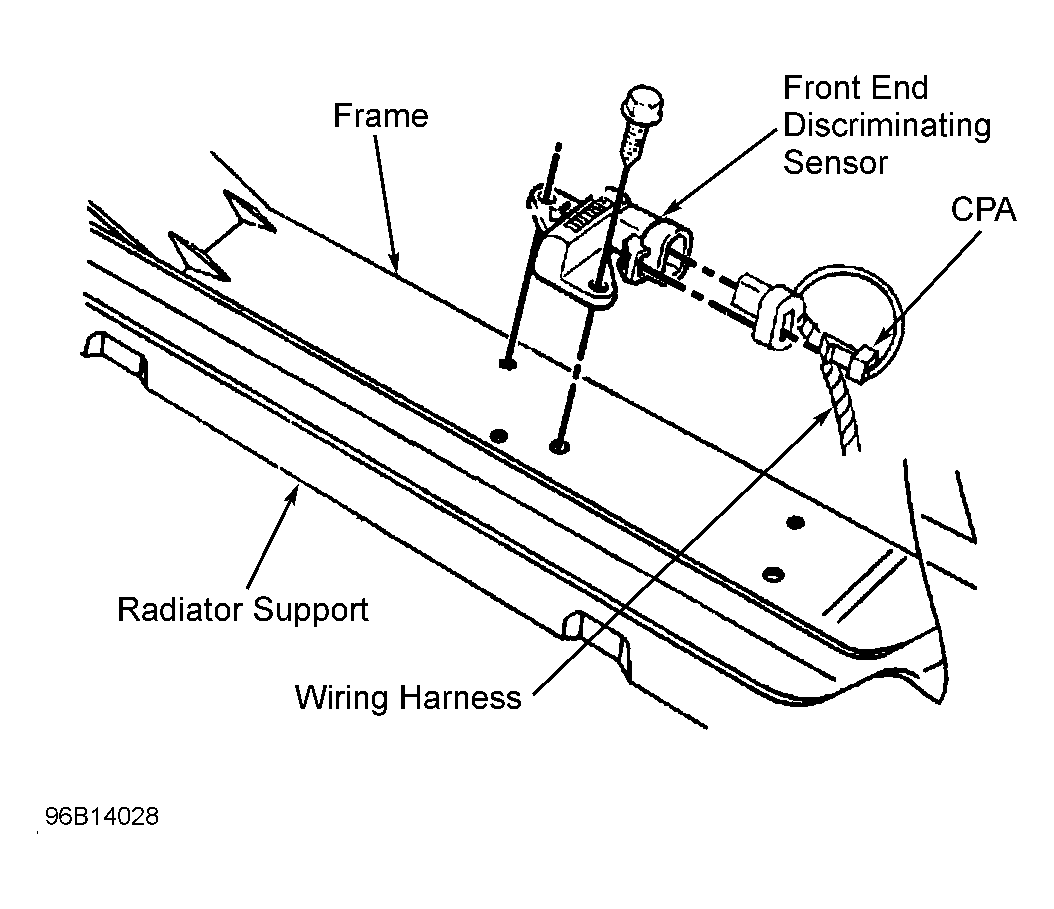

- Align sensor to vehicle, ensuring arrow on sensor body is pointing toward front of vehicle. Install and torque sensor fasteners. See TORQUE SPECIFICATIONS . Reconnect electrical connector and reinstall CPA clip. See Figure .
- Reactivate air bag system. See ACTIVATING SYSTEM . Ensure proper system function. See SYSTEM OPERATION CHECK .
