Measuring Wheel Height: Front

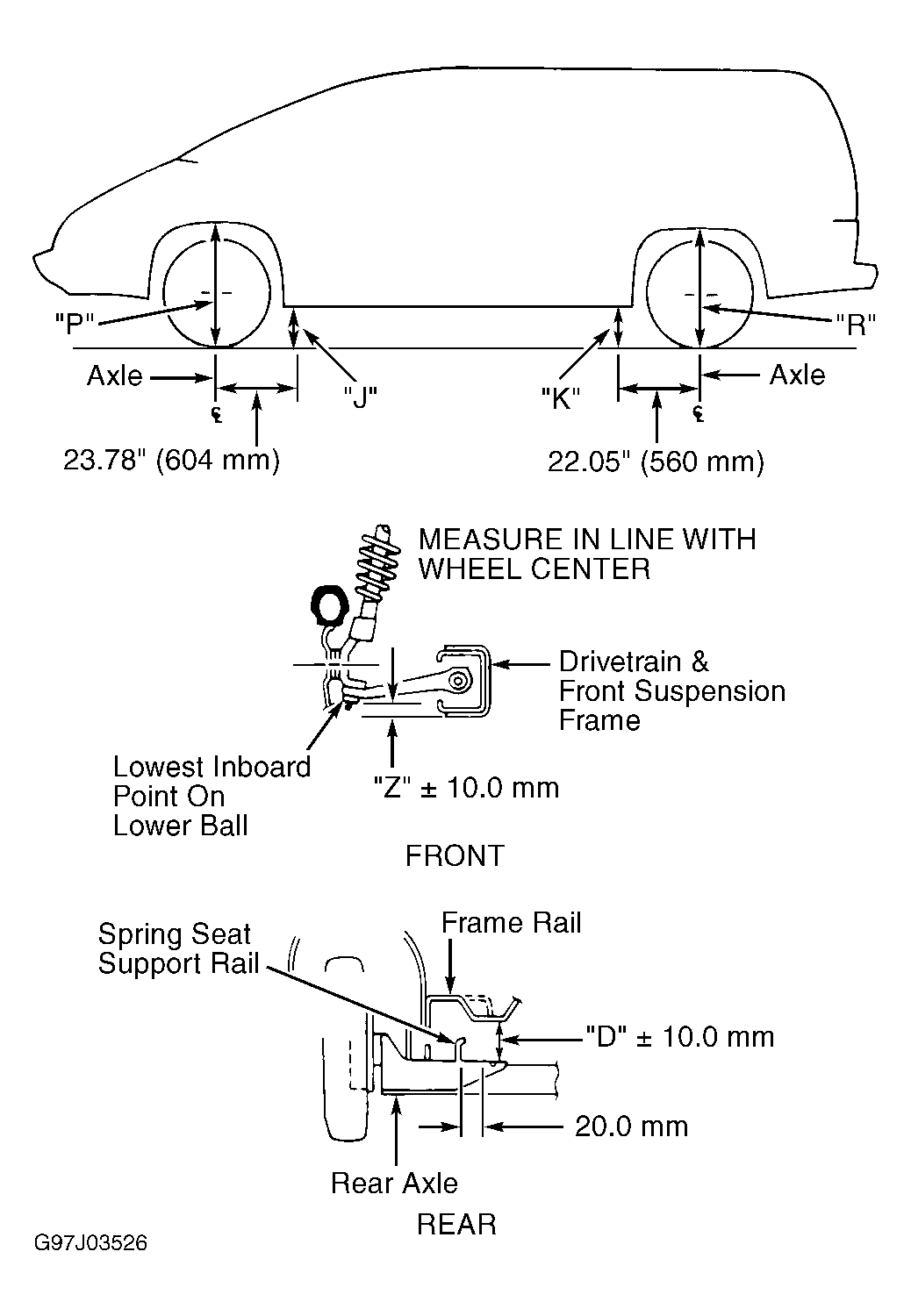

  1. Lift front bumper about 1.5" (38 mm). Gently remove hands and allow vehicle to settle on its own. Do this 2 more times. Measure and record dimensions "Z" and "J". See Figure .
  2. Push front bumper down about 1.5" (38 mm). Gently remove hands and allow vehicle to rise on its own. Do this 2 more times. Measure and record dimensions "Z" and "J" again. To obtain riding height, average the high and low measurements.
  3. If riding height is not as specified, repair or replace suspension components as necessary. See RIDING HEIGHT SPECIFICATIONS  table. If riding height is okay, align wheels. See ADJUSTMENTS  .
