Home >> Chevrolet >> 1997 >> Venture LS >> Repair and Diagnosis >> Maintenance >> Procedures >> Maintenance Information >> Fuses & Circuit Breakers >> UNDERHOOD Fuse Panel Identification >> Notes

UNDERHOOD Fuse Panel Identification: Notes

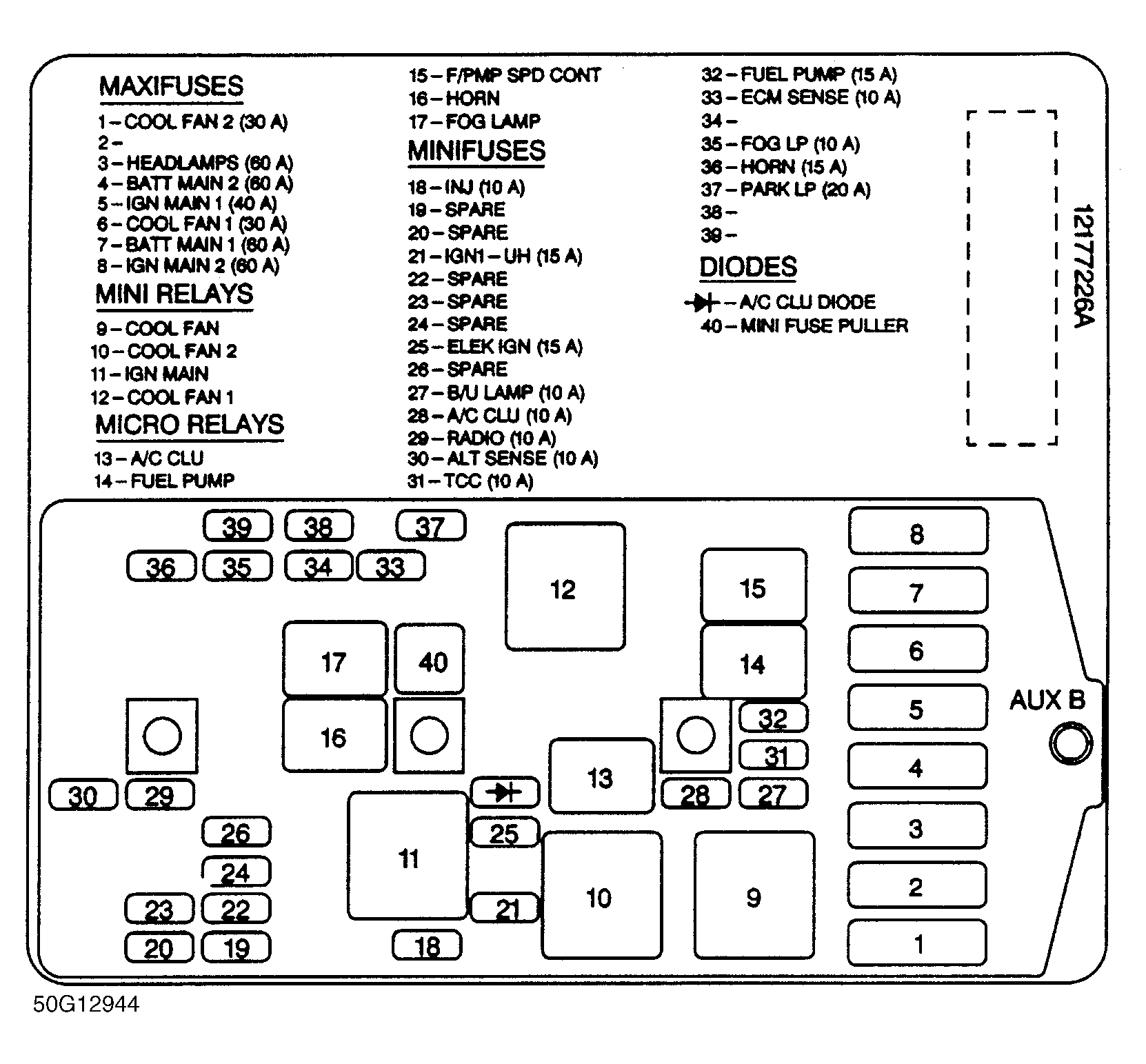

Fig 1: Underhood Fuse Identification - All Model Years

G50G12944

Courtesy of GENERAL MOTORS CORP.
