Fuse Panel Location: Notes

The instrument panel fuse box is located on the right of the glove box. The underhood fuse box is located in the engine compartment in front of the windshield washer fluid reservoir.

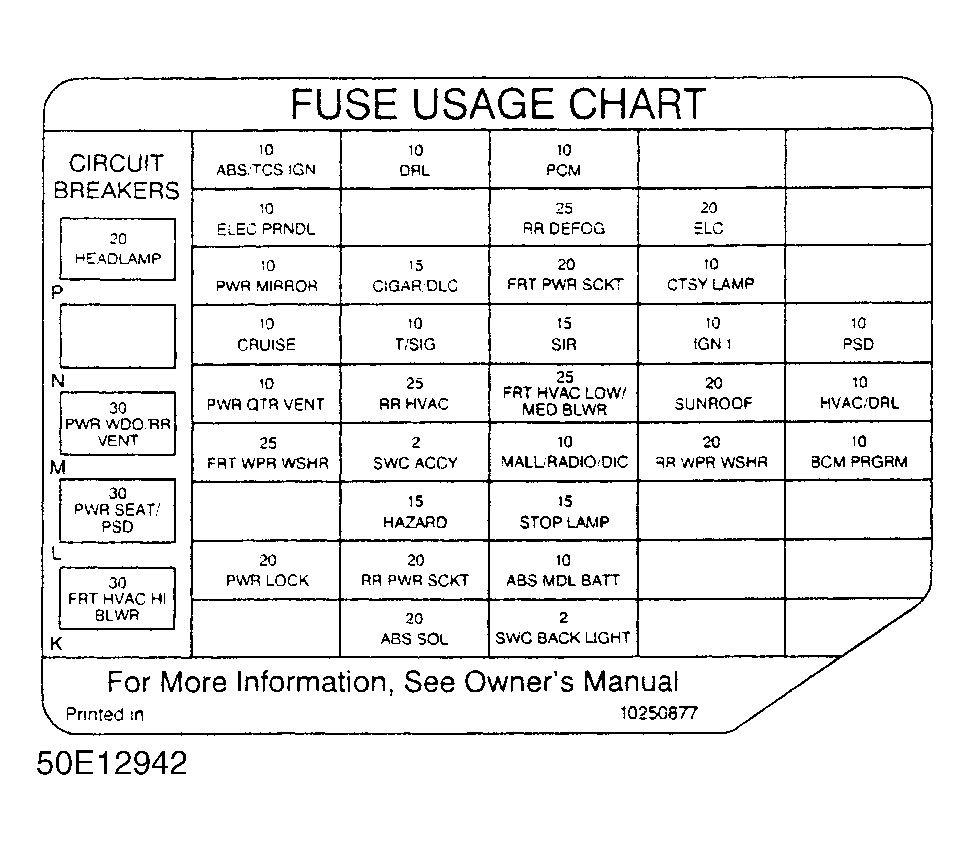

Fig 1: Interior Fuse Identification - 1997 Vehicles

Courtesy of GENERAL MOTORS CORP.

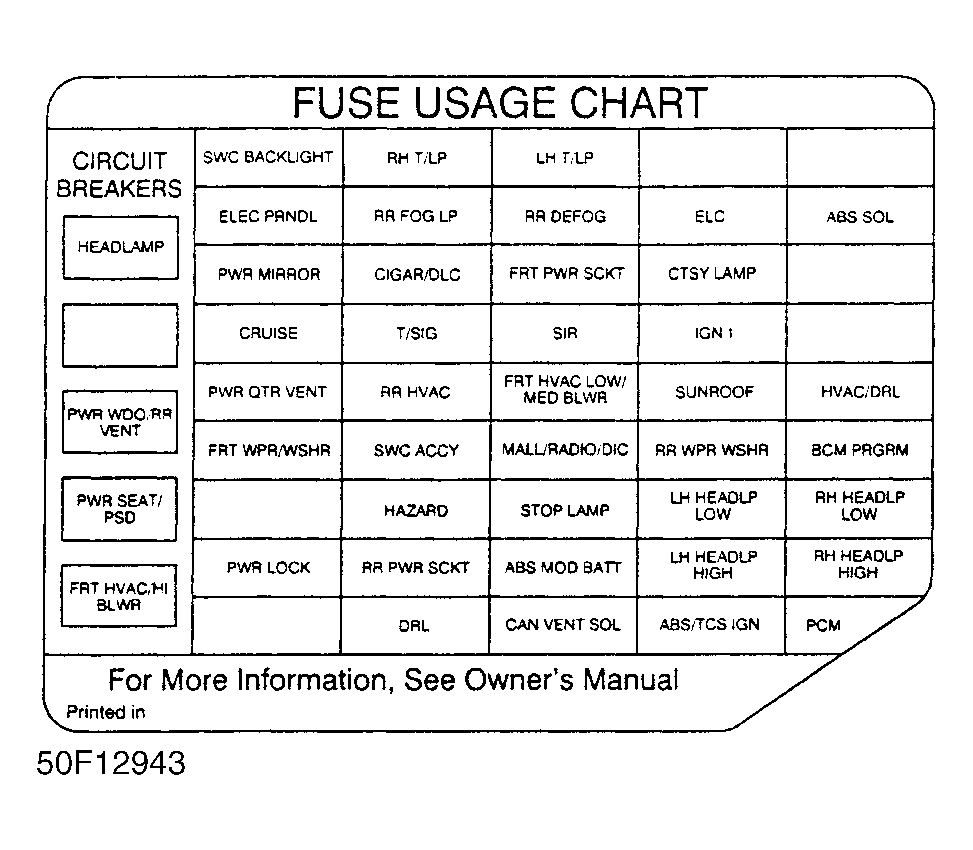

Fig 2: Interior Fuse Identification - 1998 Vehicles

Courtesy of GENERAL MOTORS CORP.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
