Rear Window Wiper/Washer & Multi-Function Switch C3

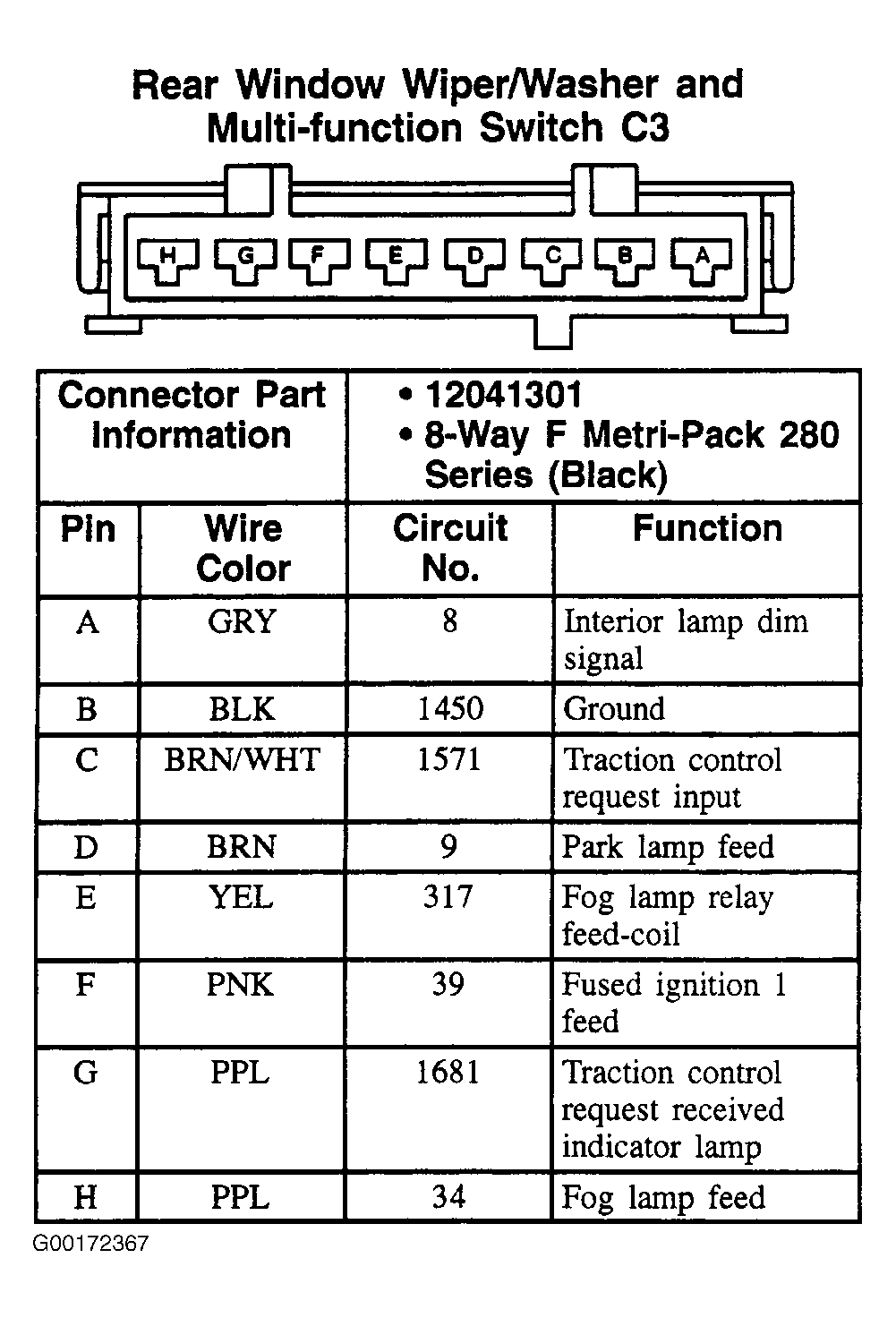

Fig 1: Rear Window Wiper/Washer & Multi-Function Switch C3 - 8-Pin Connector (Black)

G00172367

Courtesy of GENERAL MOTORS CORP.
