Rear Window Wiper/Washer & Multi-Function Switch Connectors
>>
Rear Window Wiper/Washer & Multi-Function Switch C2
Rear Window Wiper/Washer & Multi-Function Switch C2

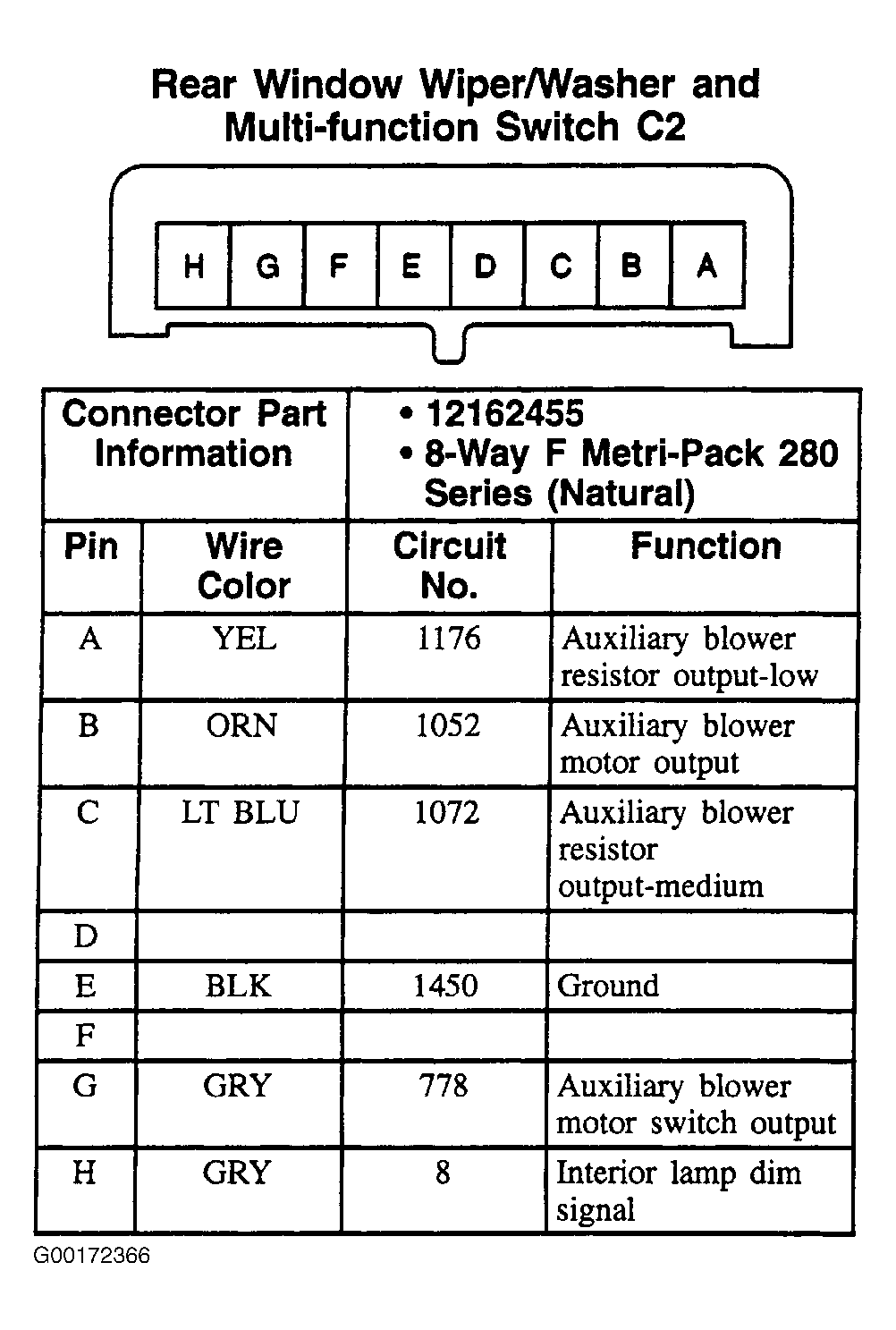

Fig 1: Rear Window Wiper/Washer & Multi-Function Switch C2 - 8-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
