Heater & A/C Control (Front Manual A/C Controls) C3

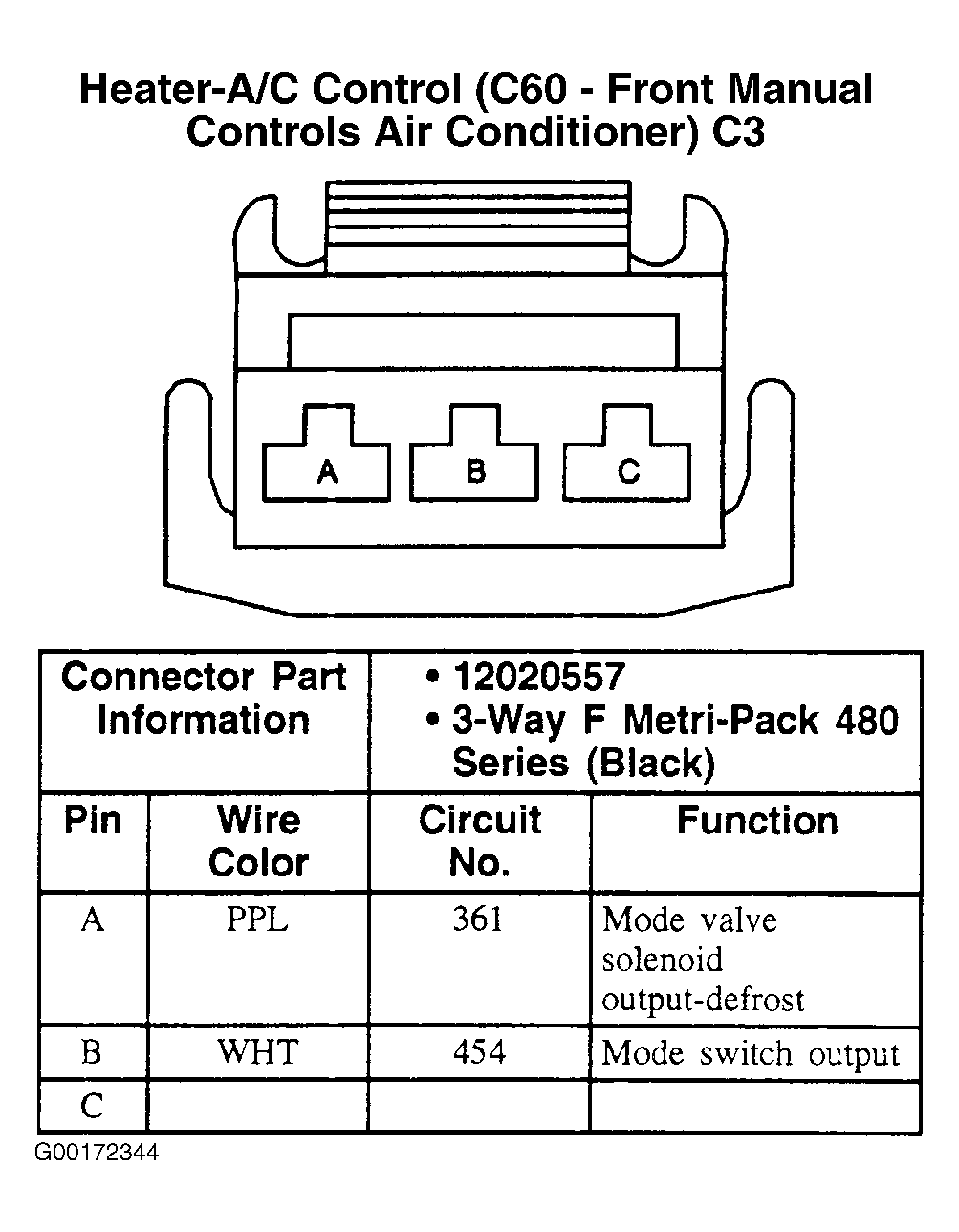

Fig 1: Heater & A/C Control (Front Manual A/C Controls) C3 - 3-Pin Connector (Black)

G00172344

Courtesy of GENERAL MOTORS CORP.
