Heater & A/C Control (Front Manual A/C Controls) C2

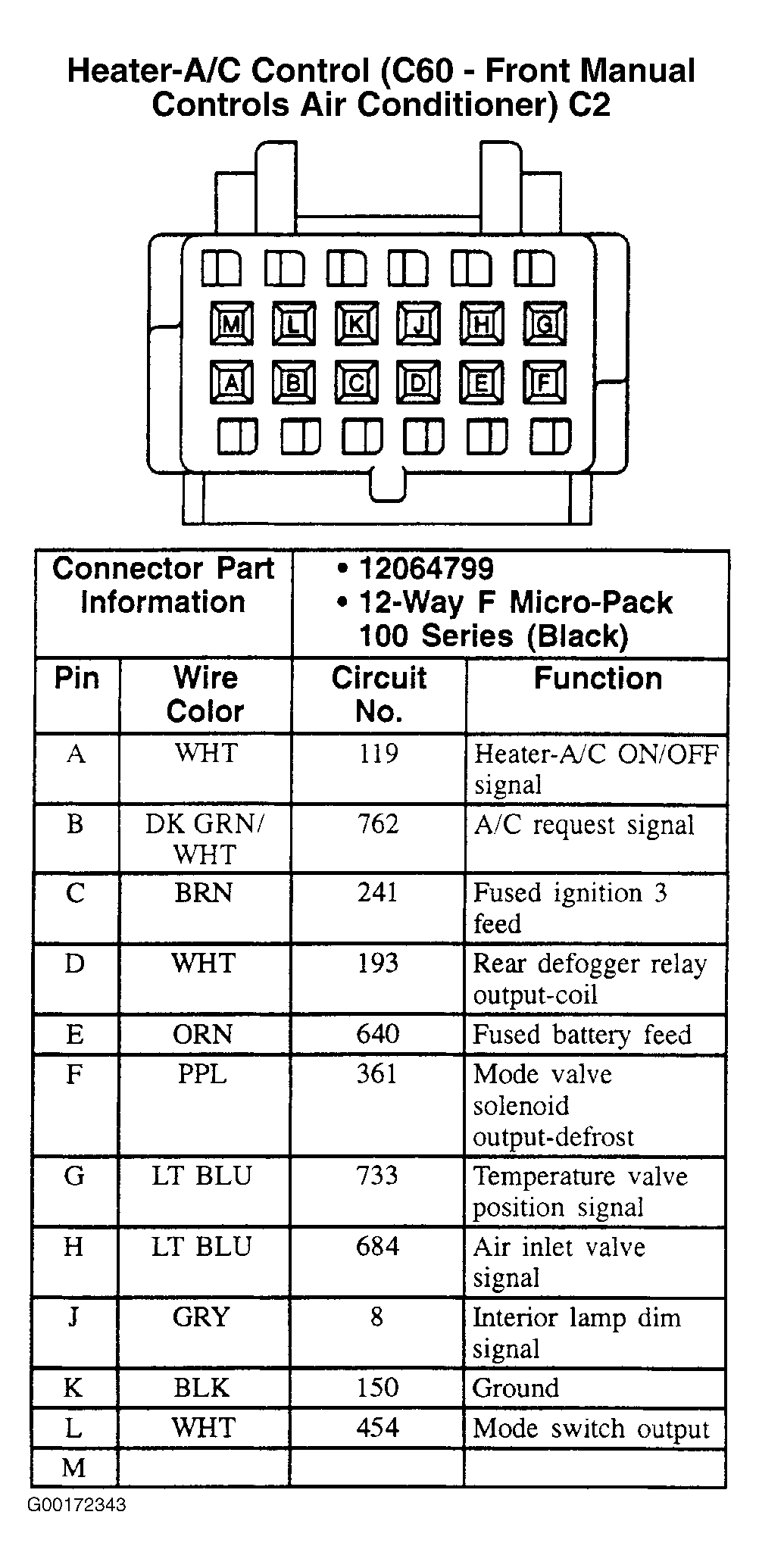

Fig 1: Heater & A/C Control (Front Manual A/C Controls) C2 - 12-Pin Connector (Black)

G00172343

Courtesy of GENERAL MOTORS CORP.
