Transaxle Range Switch C1

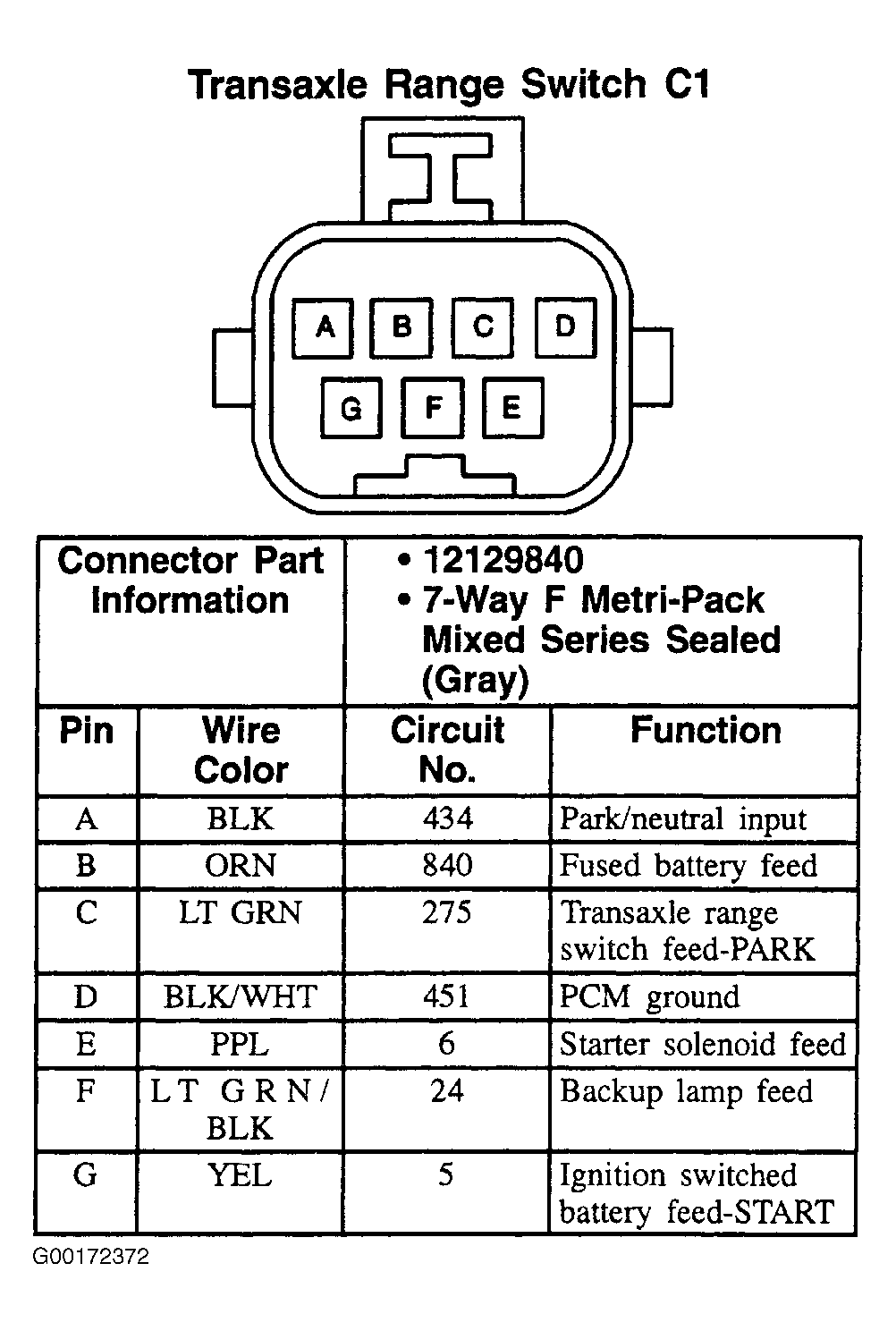

Fig 1: Transaxle Range Switch C1 - 7-Pin Connector (Gray)

G00172372

Courtesy of GENERAL MOTORS CORP.
