Connector Terminal Identification
>>
Window Switch
>>
Century & Regal
>>
Window Switch, Right Rear
Window Switch, Right Rear

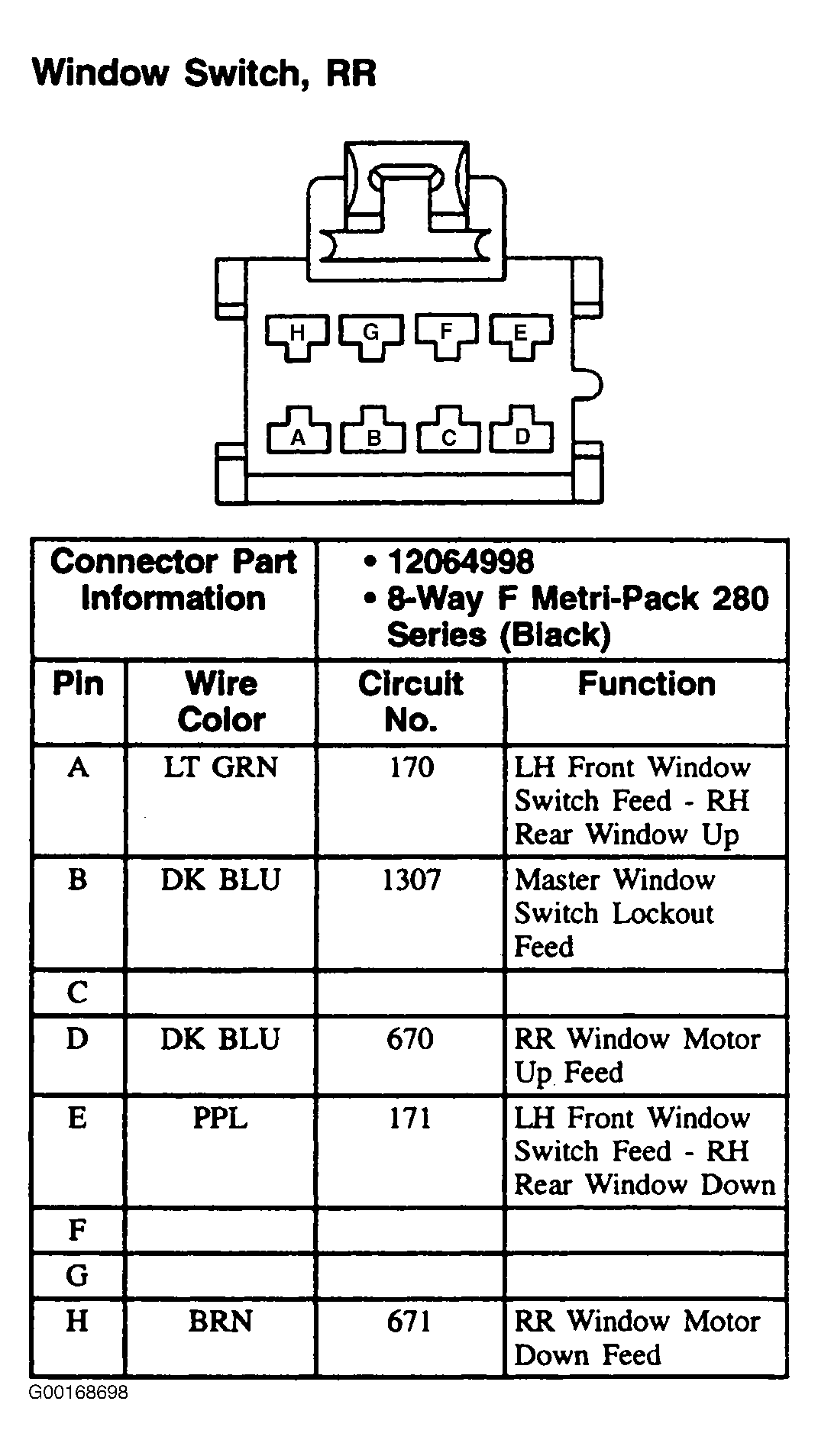

Fig 1: Window Switch, Right Rear (Century & Regal) - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
