Century & Regal

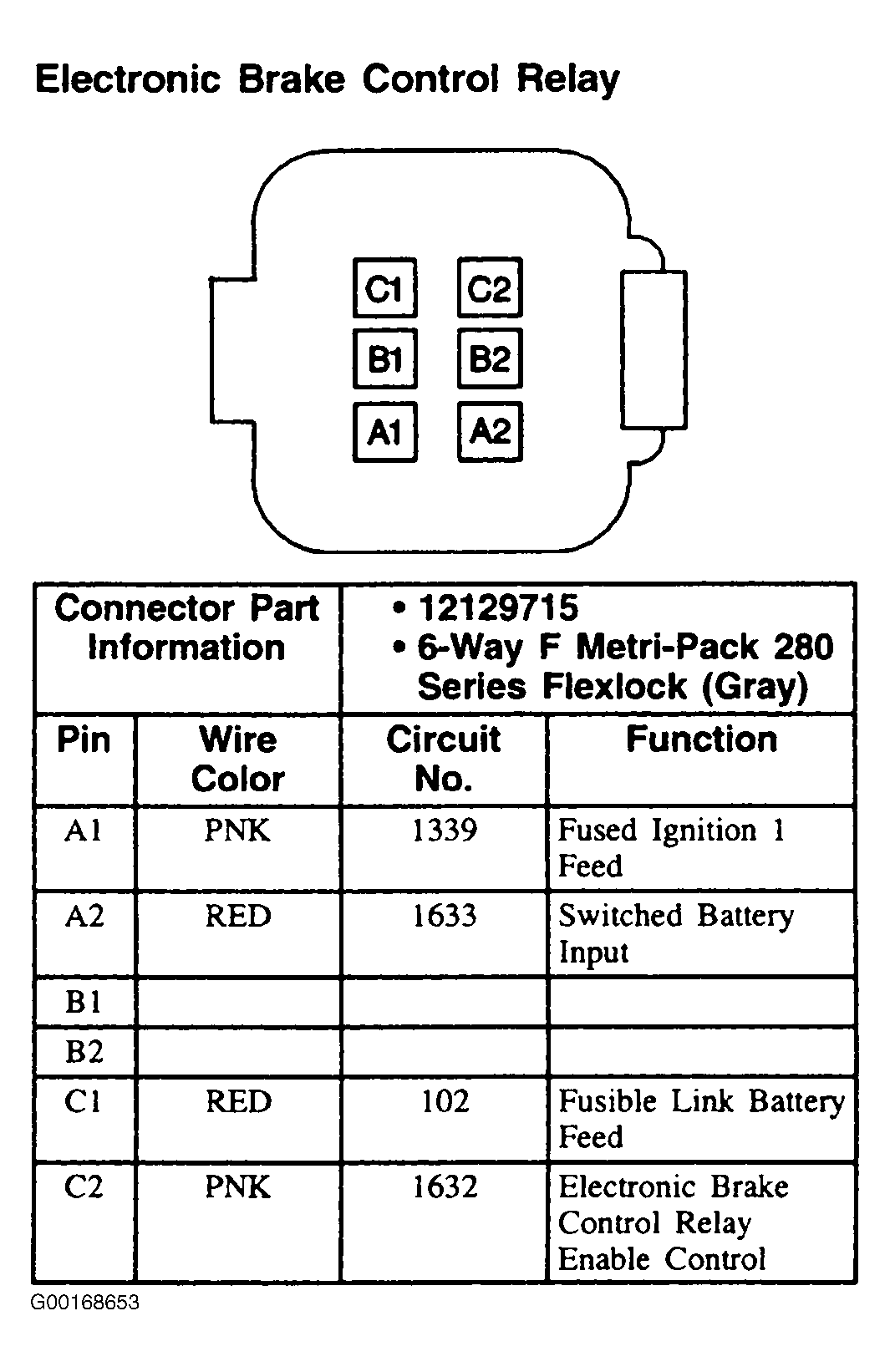

Fig 1: Electronic Brake Control Relay (Century & Regal) - 6-Pin Connector (Gray)
G00168653Courtesy of GENERAL MOTORS CORP.
