Grand Prix

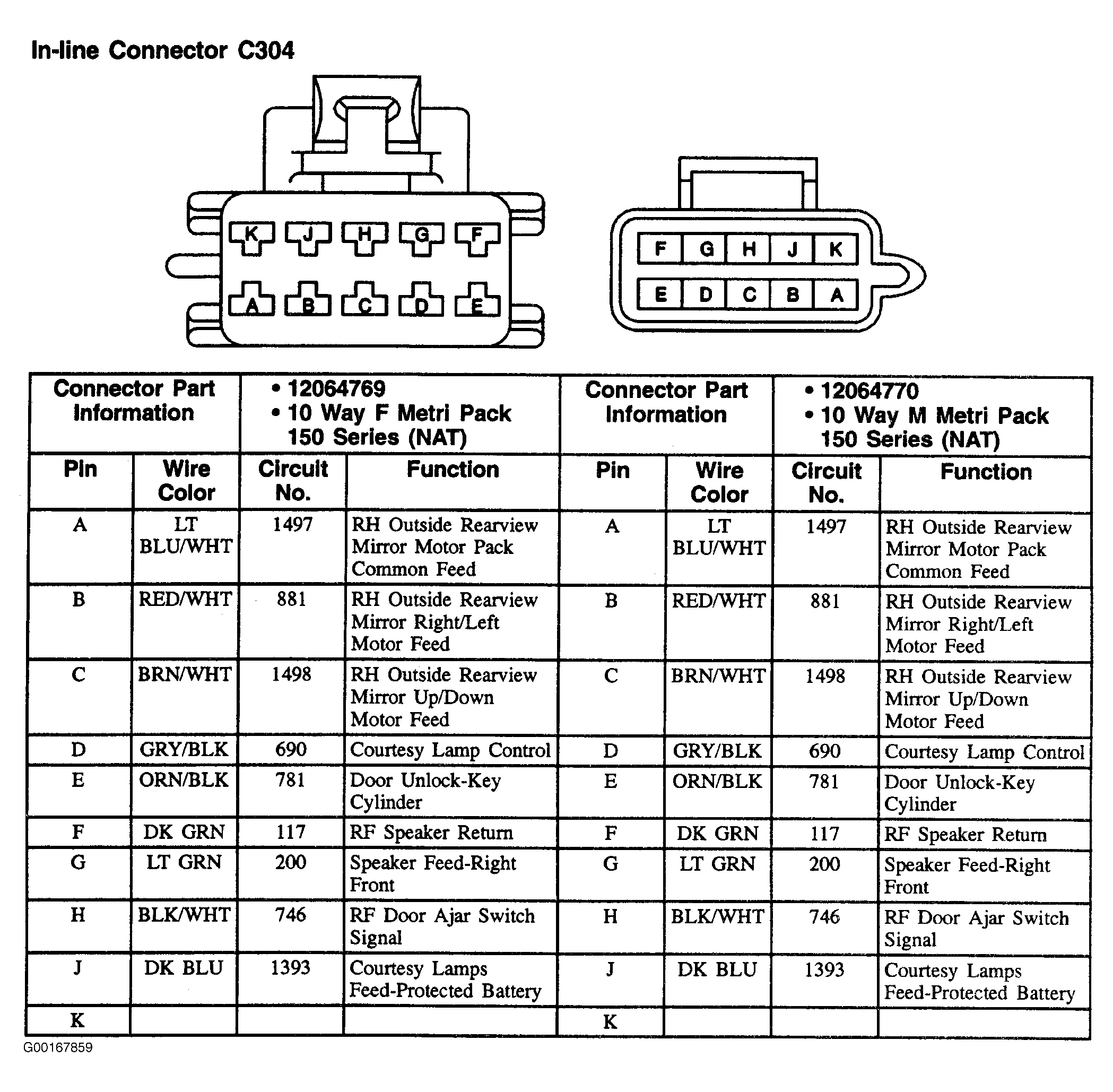

Fig 1: C304 (Grand Prix) - 10-Pin Connector (Natural/Natural)
G00167859Courtesy of GENERAL MOTORS CORP.
