Grand Prix

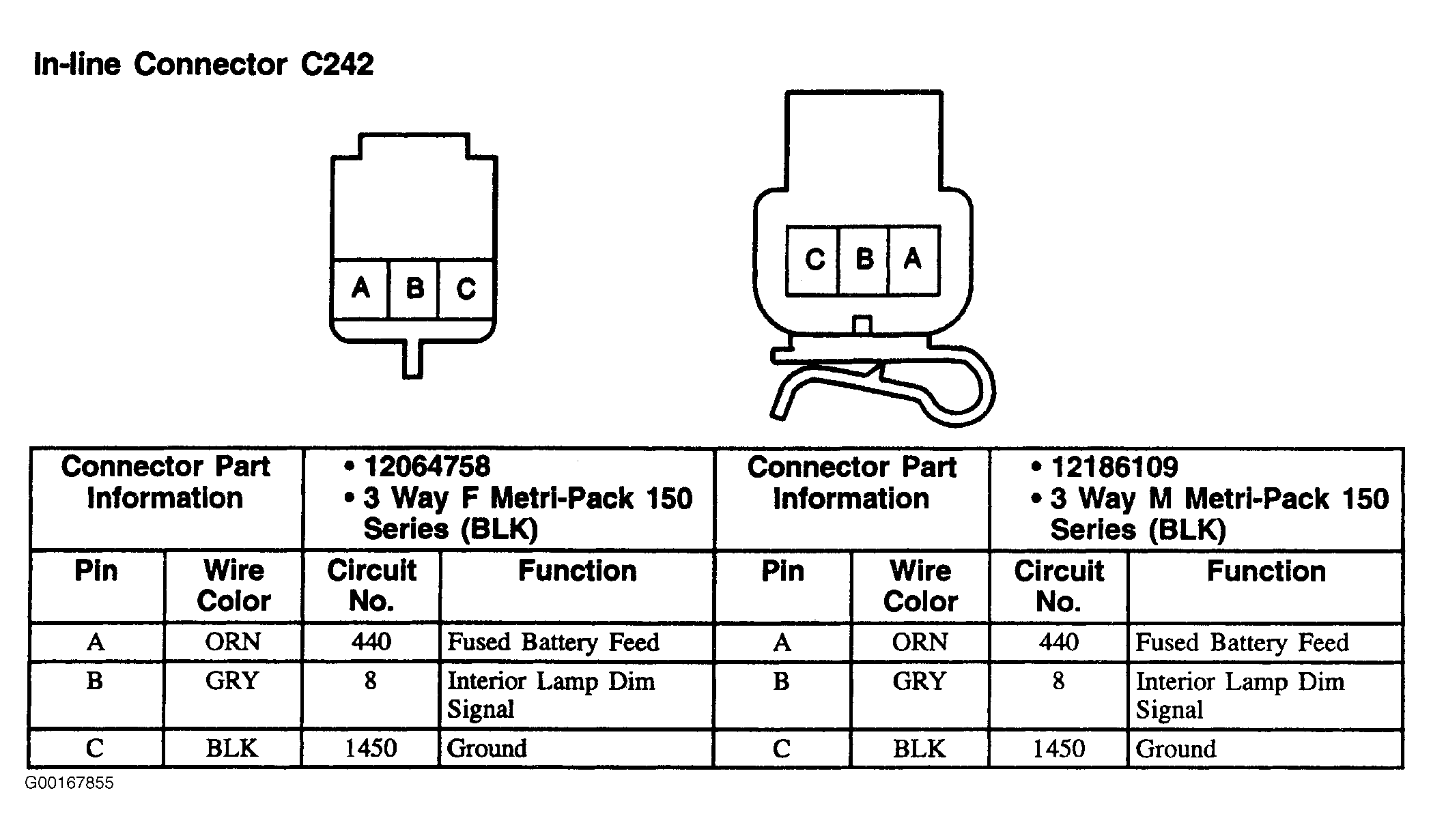

Fig 1: C242 (Grand Prix) - 3-Pin Connector (Black/Black)
G00167855Courtesy of GENERAL MOTORS CORP.
