Grand Prix

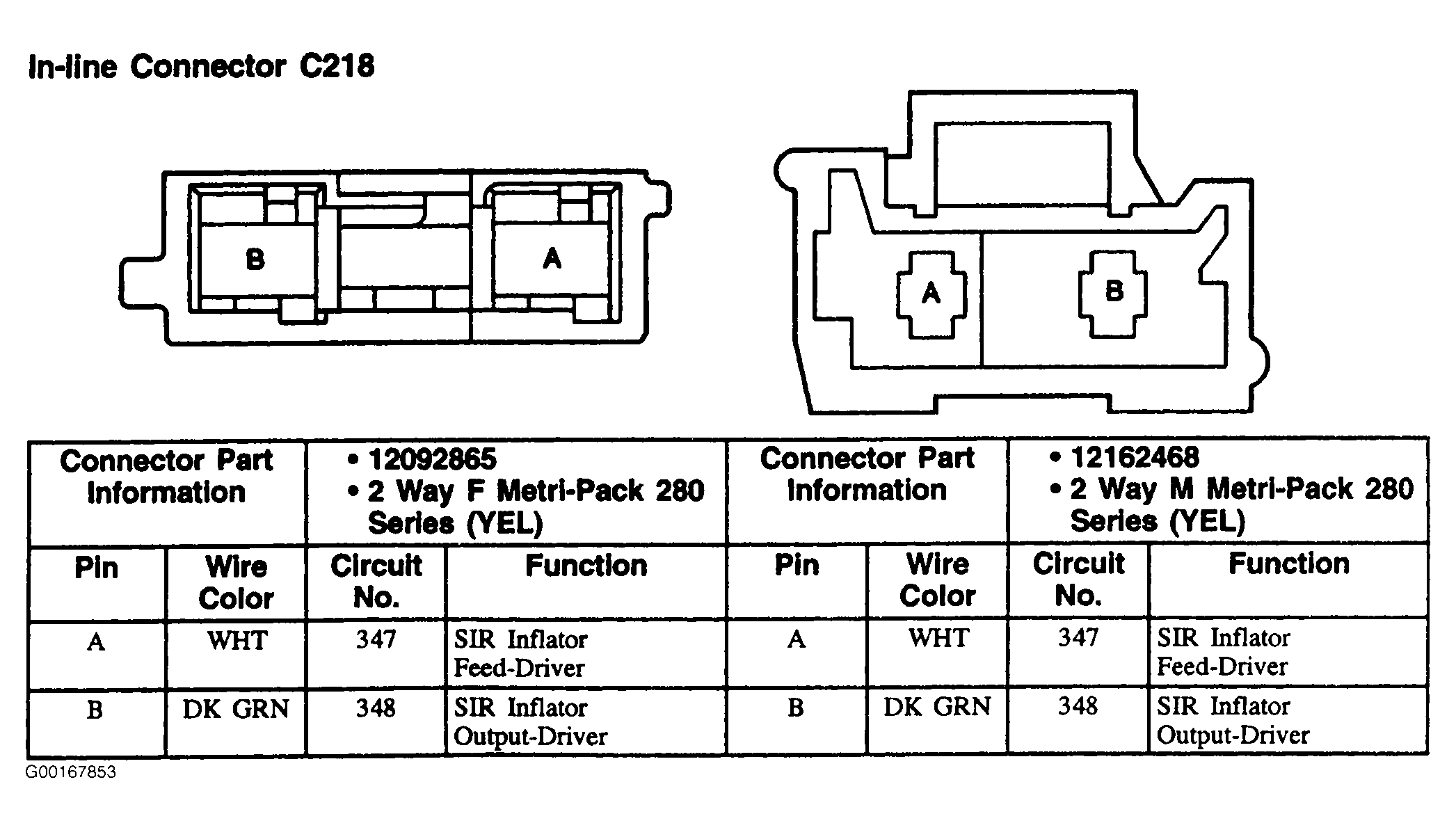

Fig 1: C218 (Grand Prix) - 2-Pin Connector (Yellow/Yellow)
G00167853Courtesy of GENERAL MOTORS CORP.
