Window Switch C2, Left Front (Chevrolet)

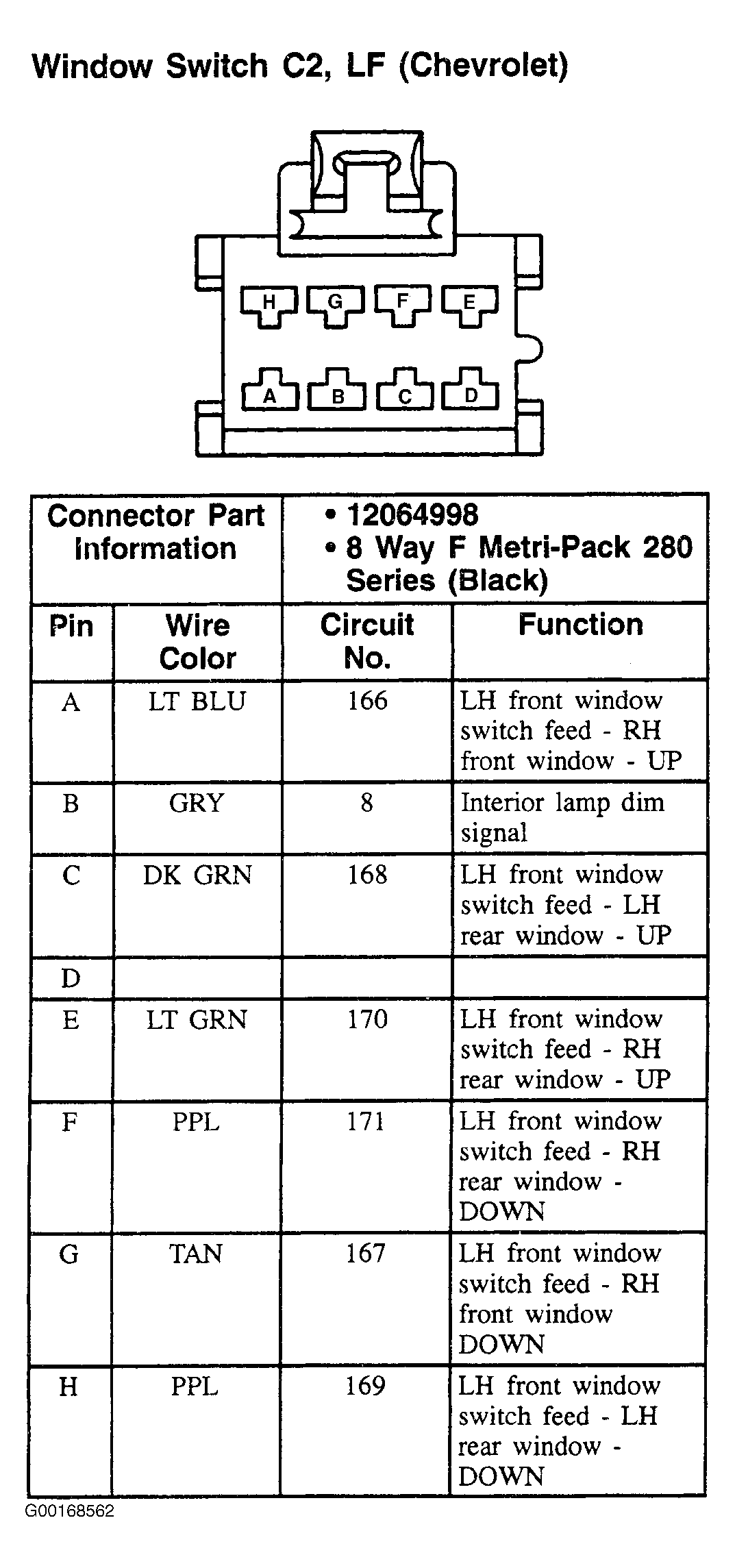

Fig 1: Window Switch C2, Left Front (Chevrolet) - 8-Pin Connector (Black)

G00168562

Courtesy of GENERAL MOTORS CORP.
