Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Anti-Theft Module | Behind Passenger Side Of Instrument Panel, Above Instrument Panel Compartment. Fig 1 |
| Diagnostic Energy Reserve Module (DERM) | Below Front Driver Seat. Fig 2 |
| Data Link Connector (DLC) | Bottom Of Instrument Panel, Right Of Steering Column. Fig 3 |
| Electronic Brake Control Module (EBCM) | Behind Driver Side Of Instrument Panel, Left Side Of Brake Pedal Bracket. Fig 4 |
| Fuse Block | Passenger Side Of Instrument Panel, In Passenger Front Door Opening. Fig 5 |

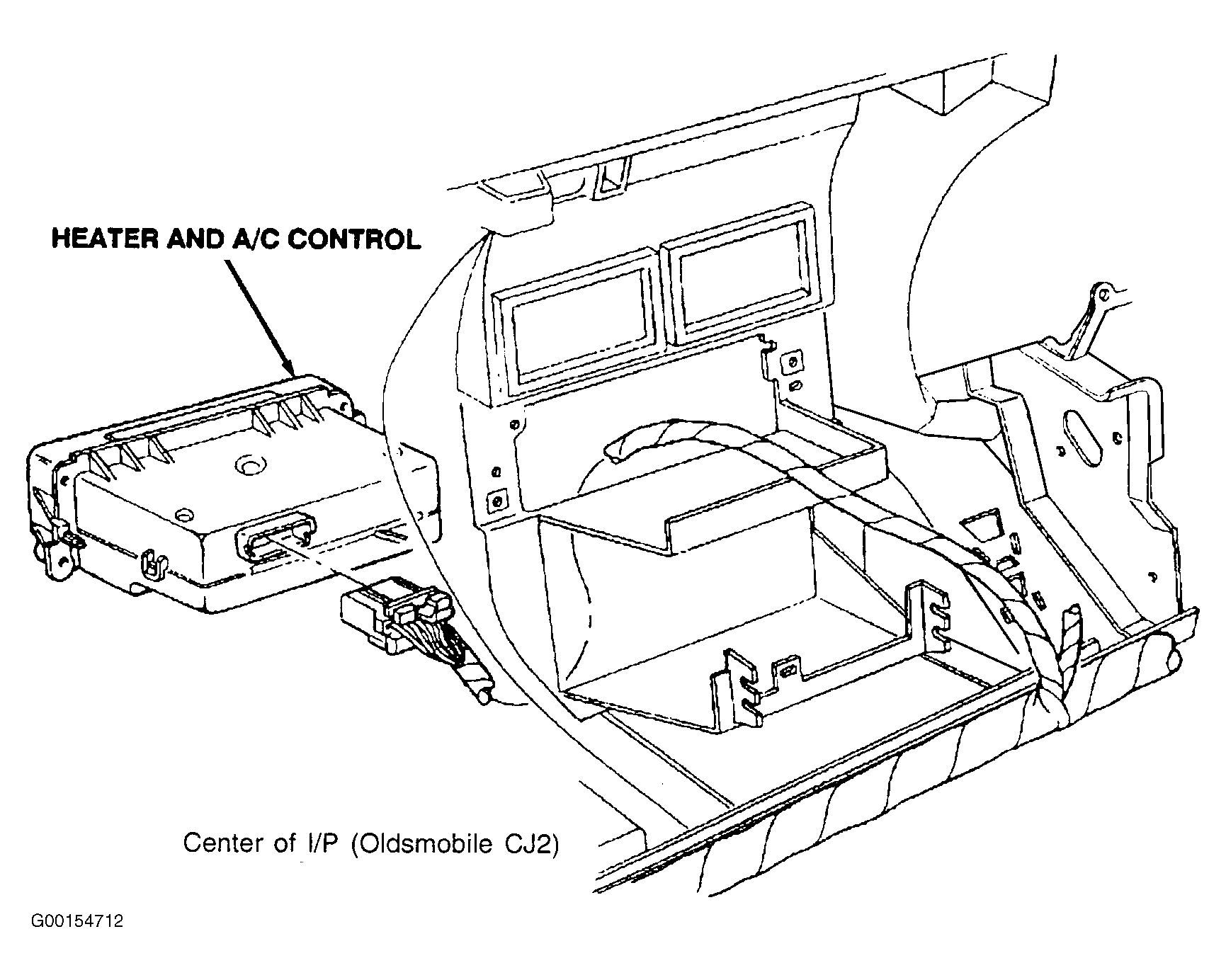

| HVAC Control (Oldsmobile) | Center Of Instrument Panel. Fig 6 |

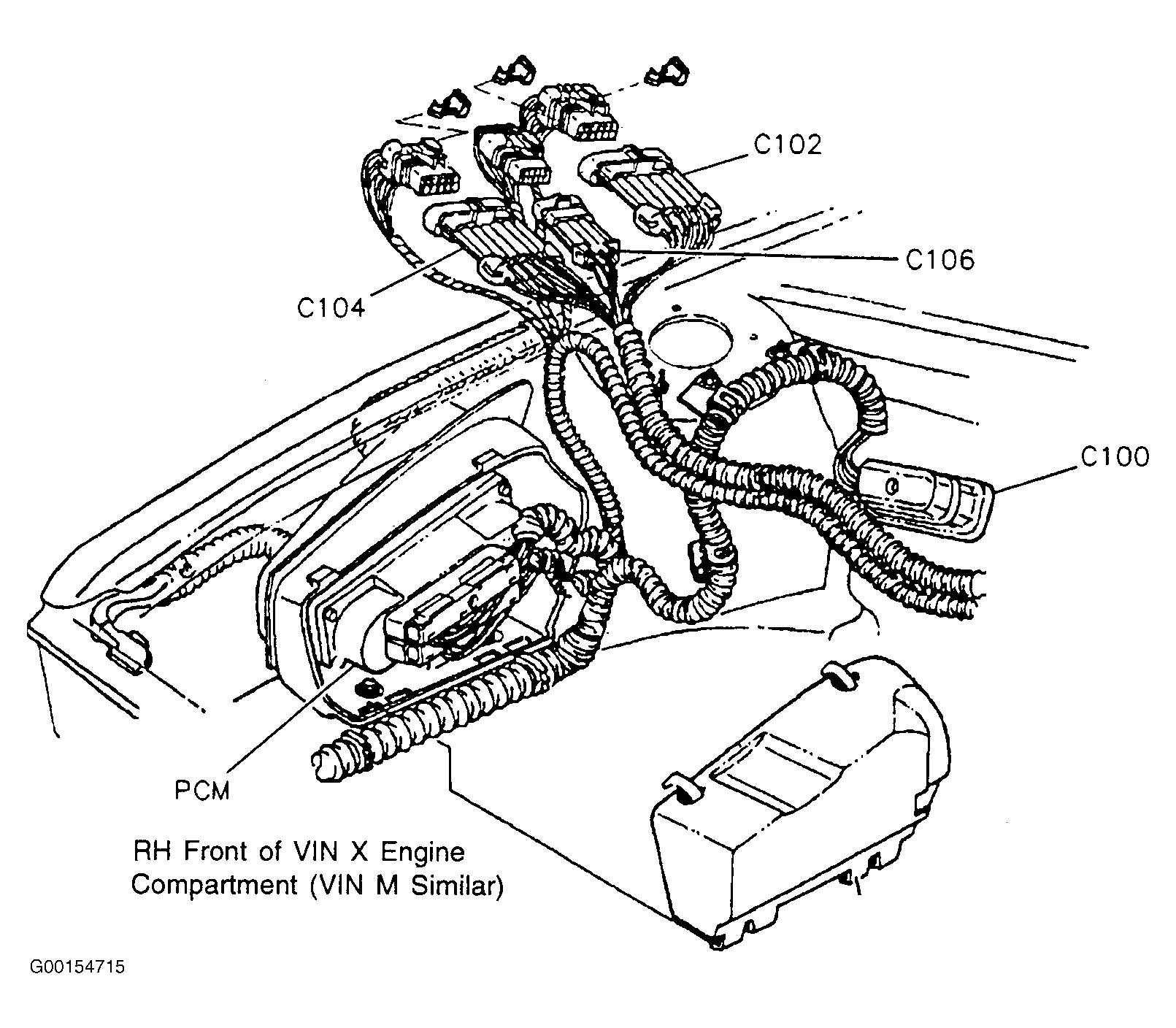

| Powertrain Control Module (PCM) | Passenger Side Of Engine Compartment, Forward Of Strut Tower. Fig 7 |
| C100 (36 Terminals) | Passenger Side Of Dash, Behind Strut Tower. Fig 7 |

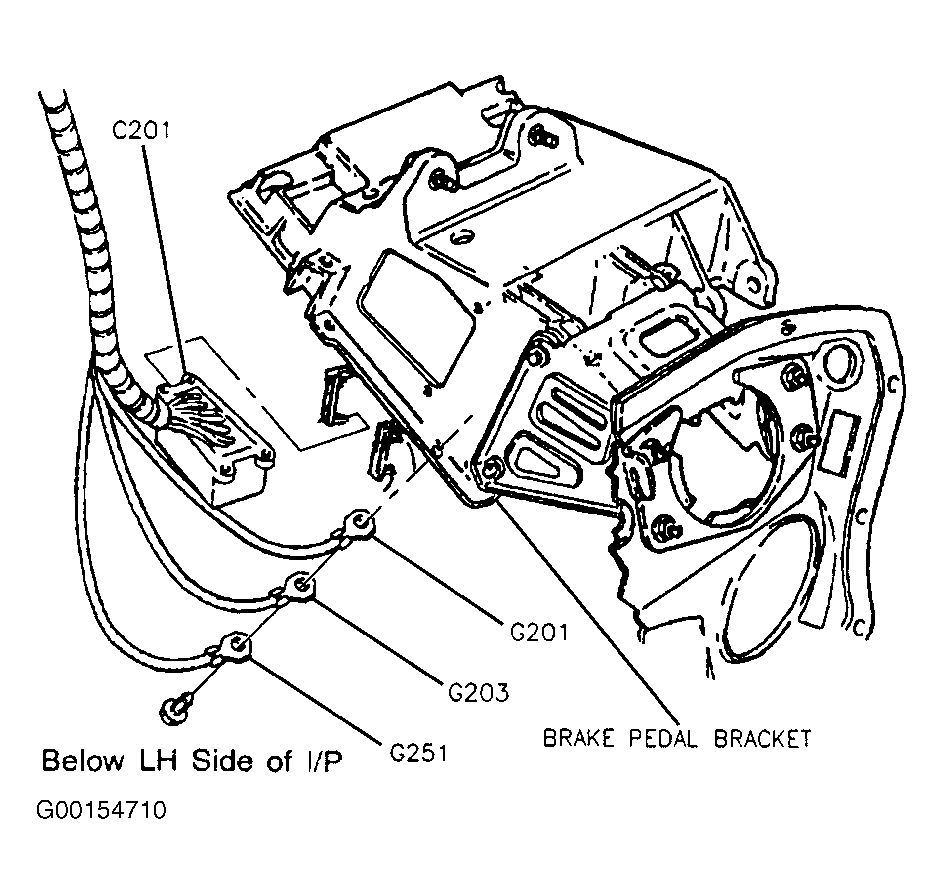

| G201 | Behind Instrument Panel, On Right Side Of Brake Pedal Bracket. Fig 8 |
| S202 (Lumina & Monte Carlo) | Instrument Panel Harness, Below Center Of Instrument Panel Near C240 Breakout. |
| S202 (Cutlass Supreme) | Instrument Panel Harness, Bow Center Of Instrument Panel Near Radio Breakout. |
| S211 (Lumina & Monte Carlo) | Instrument Panel Harness, Behind Passenger Side Of Instrument Near Radio Breakout. |
| S211 (Cutlass Supreme) | Instrument Panel Harness, Near Steering Column And G203 Breakout. |
| S237 | Instrument Panel Harness, Below Instrument Panel Compartment Near Blower Motor Relay Breakout. |
