Anti-Theft Module Data Line

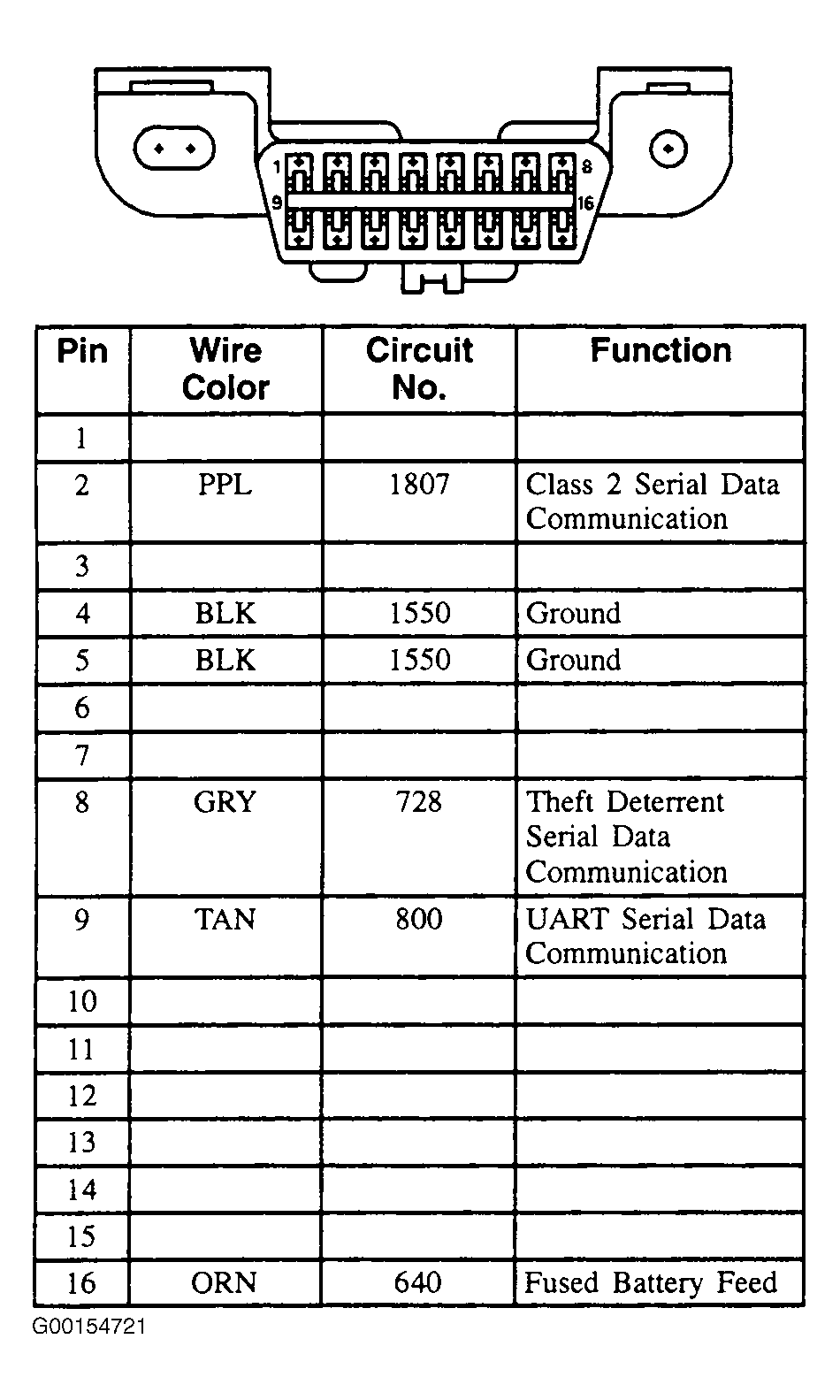

If the anti-theft module is not accessible with a scan tool, check for an open or short between anti-theft module and DLC terminal No. 8. See Figure and WIRING DIAGRAMS  .
