Connector Terminal Identification (P Series)
>>
Fuel Injector (L29)
Fuel Injector (L29)

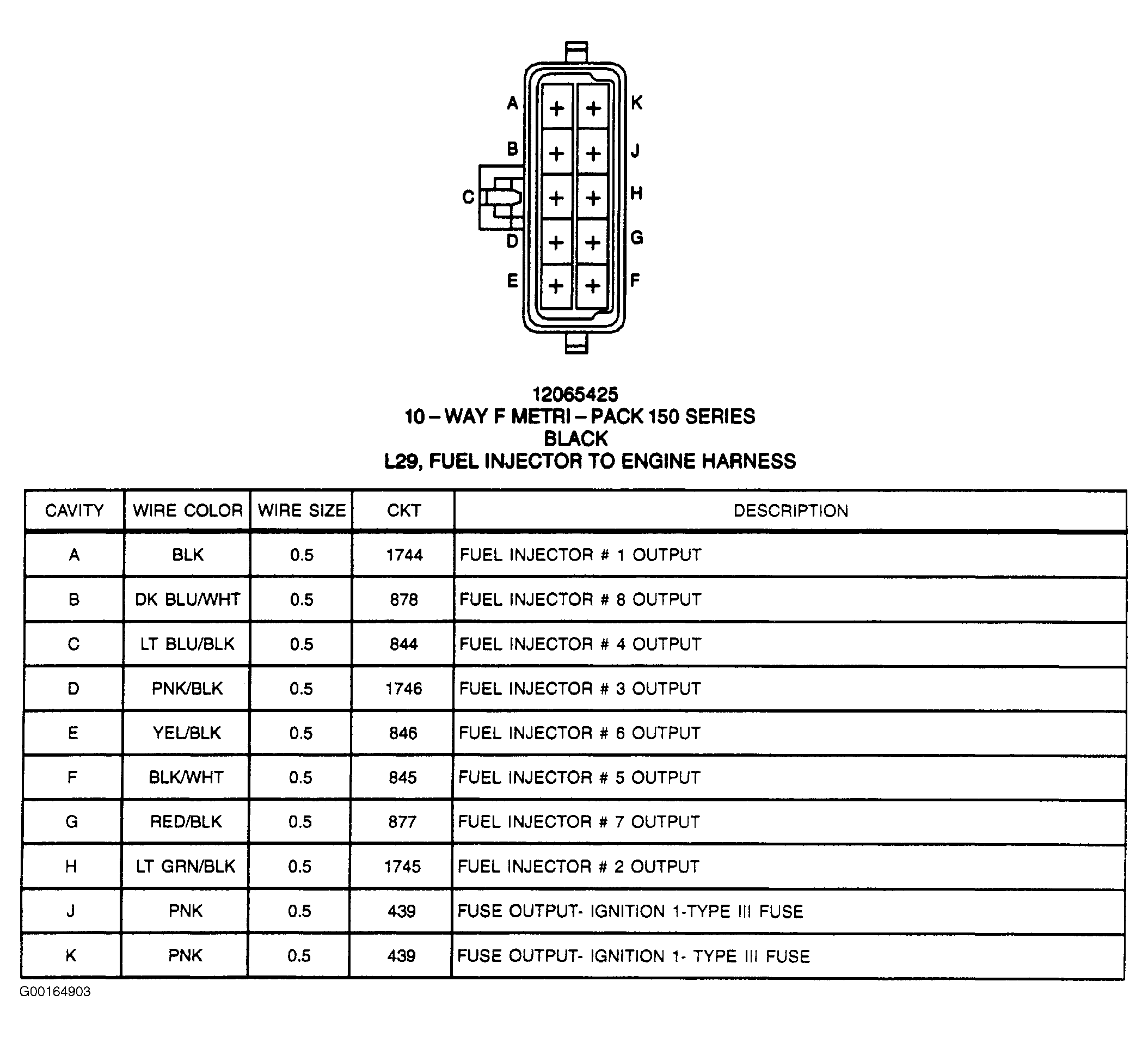

Fig 1: Fuel Injector (L29) - 10-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
