Connector Terminal Identification
>>
Ambient Light Sensor & Instrument Panel Courtesy Lamp (LH)
Ambient Light Sensor & Instrument Panel Courtesy Lamp (LH)

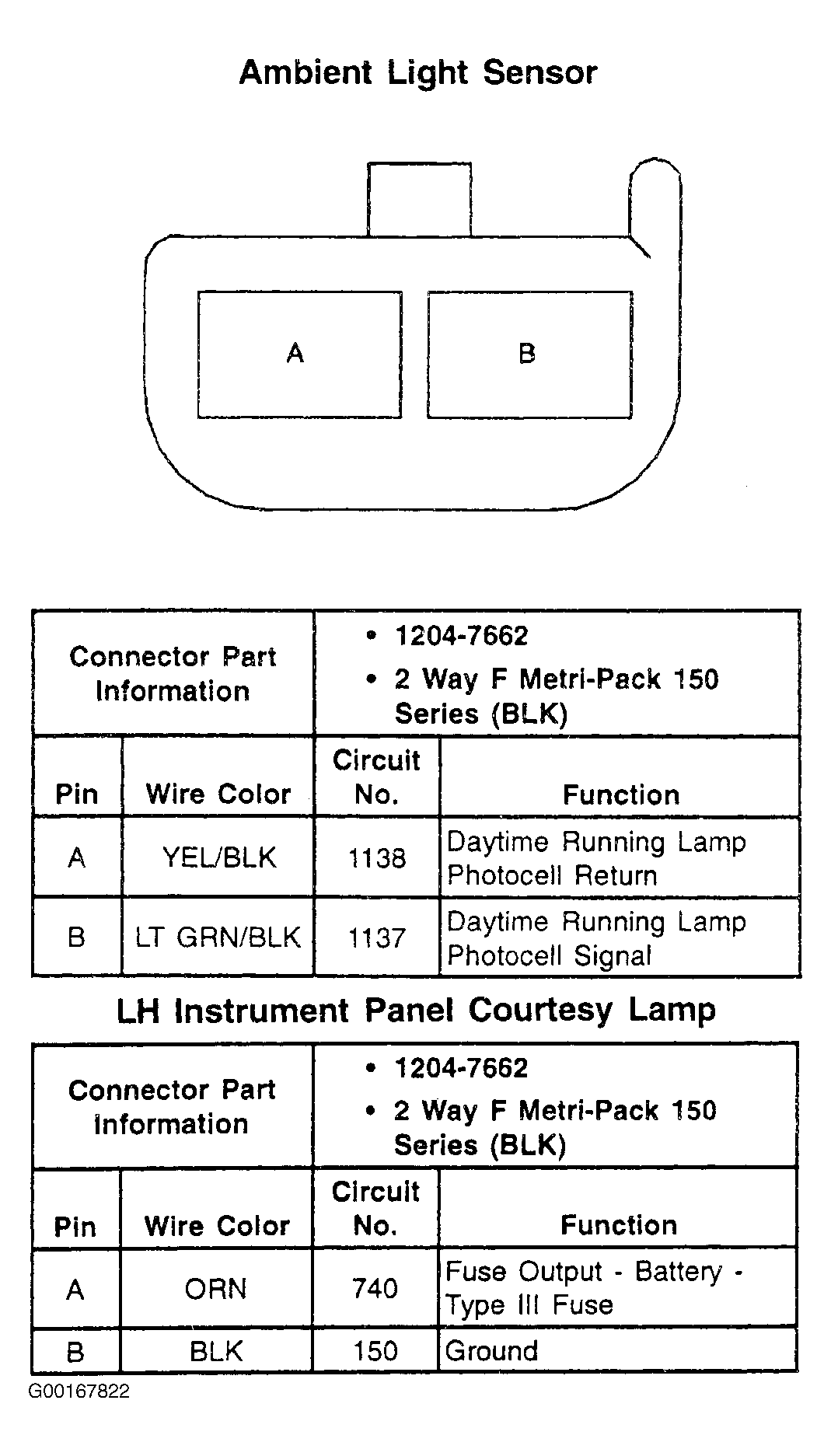

Fig 1: Ambient Light Sensor & Instrument Panel Courtesy Lamp (LH) - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
