Data Link Connector (DLC) System Check

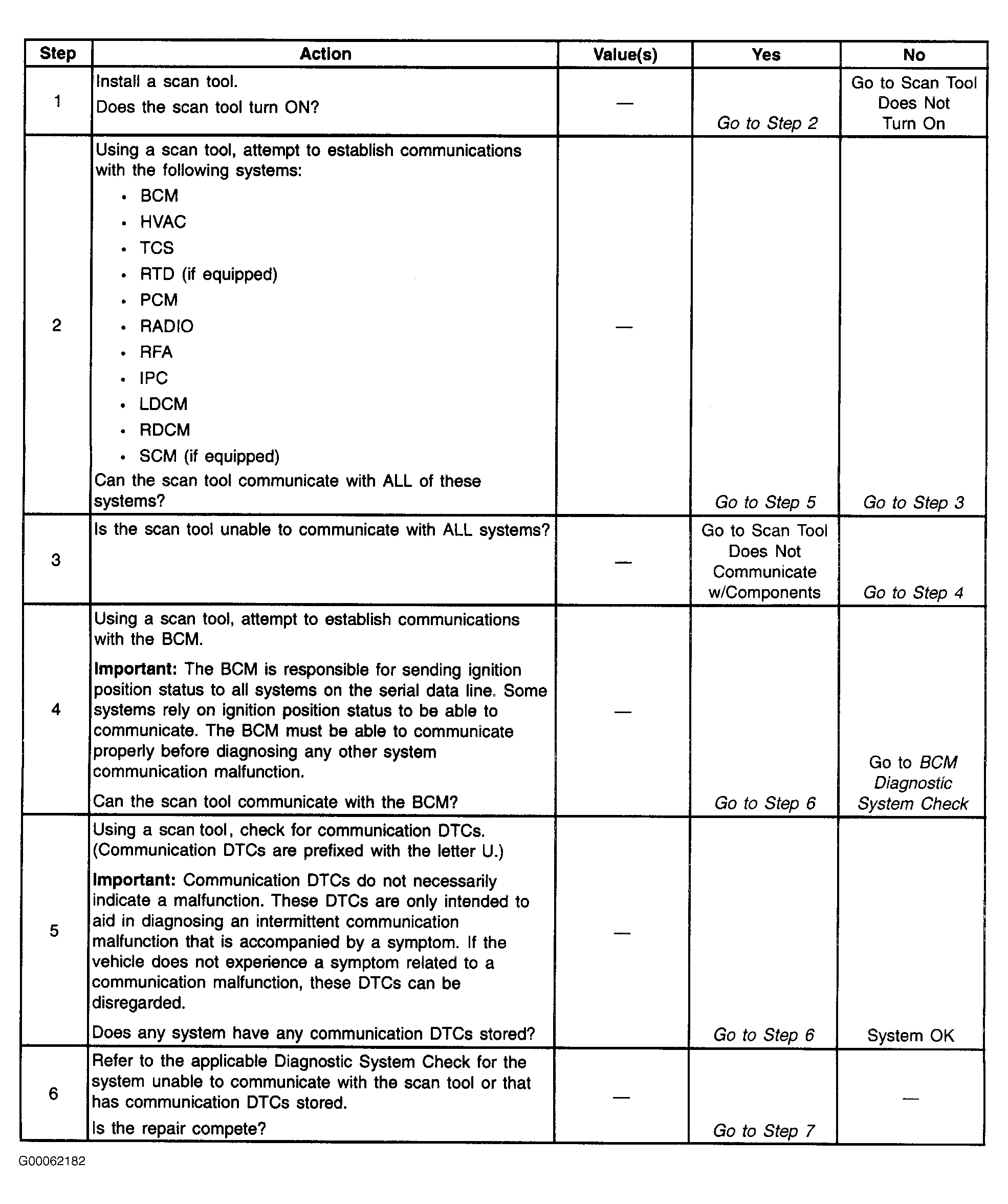

Fig 1: Data Link Connector (DLC) System Check

G00062182

Courtesy of GENERAL MOTORS
