Water In Fuel Indicator Sensor (Diesel)

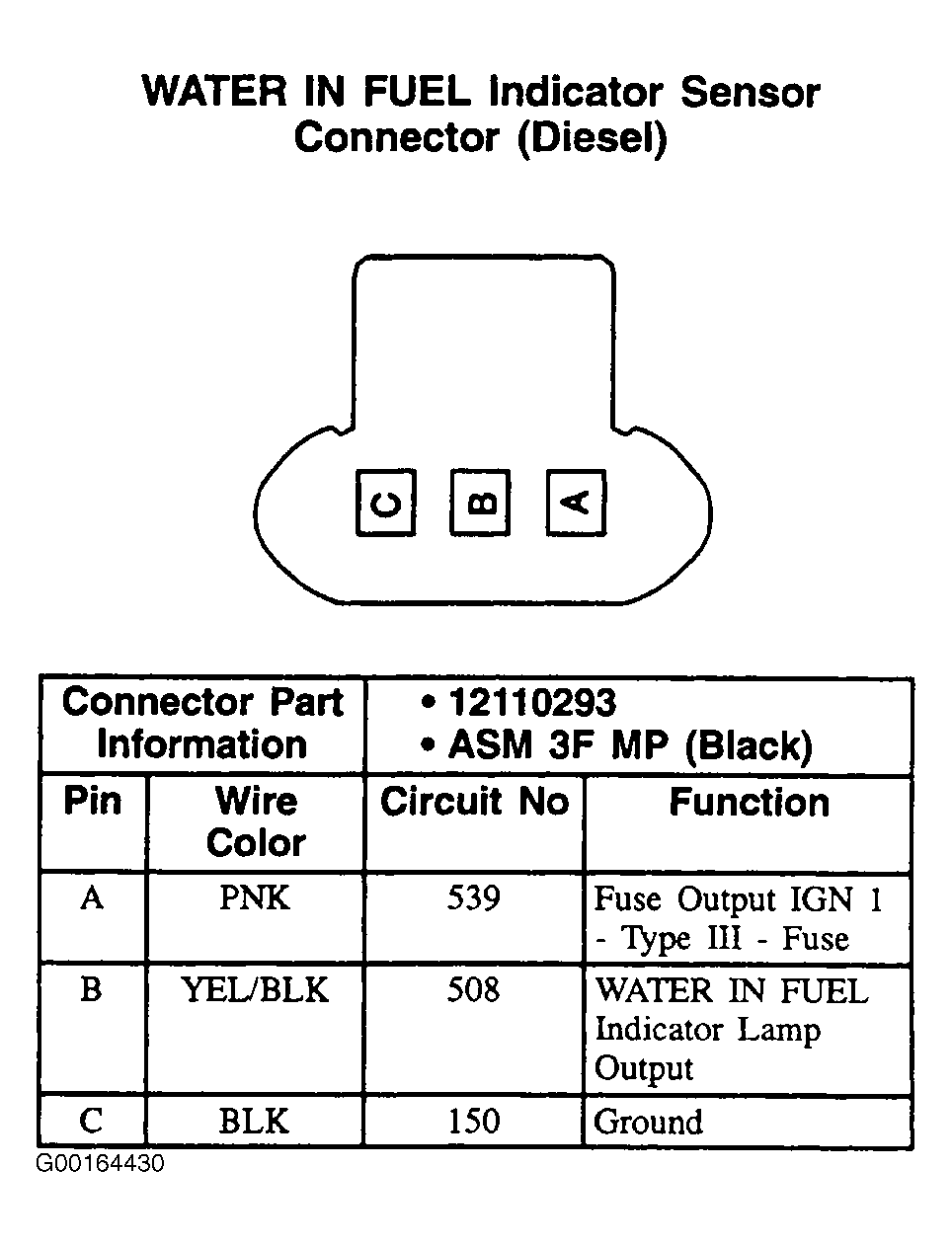

Fig 1: Water In Fuel Indicator Sensor (Diesel) - 3-Pin Connector, Black

G00164430

Courtesy of GENERAL MOTORS CORP.
