Connector Terminal Identification (G Series)
>>
Park Brake Warning Switch
Park Brake Warning Switch

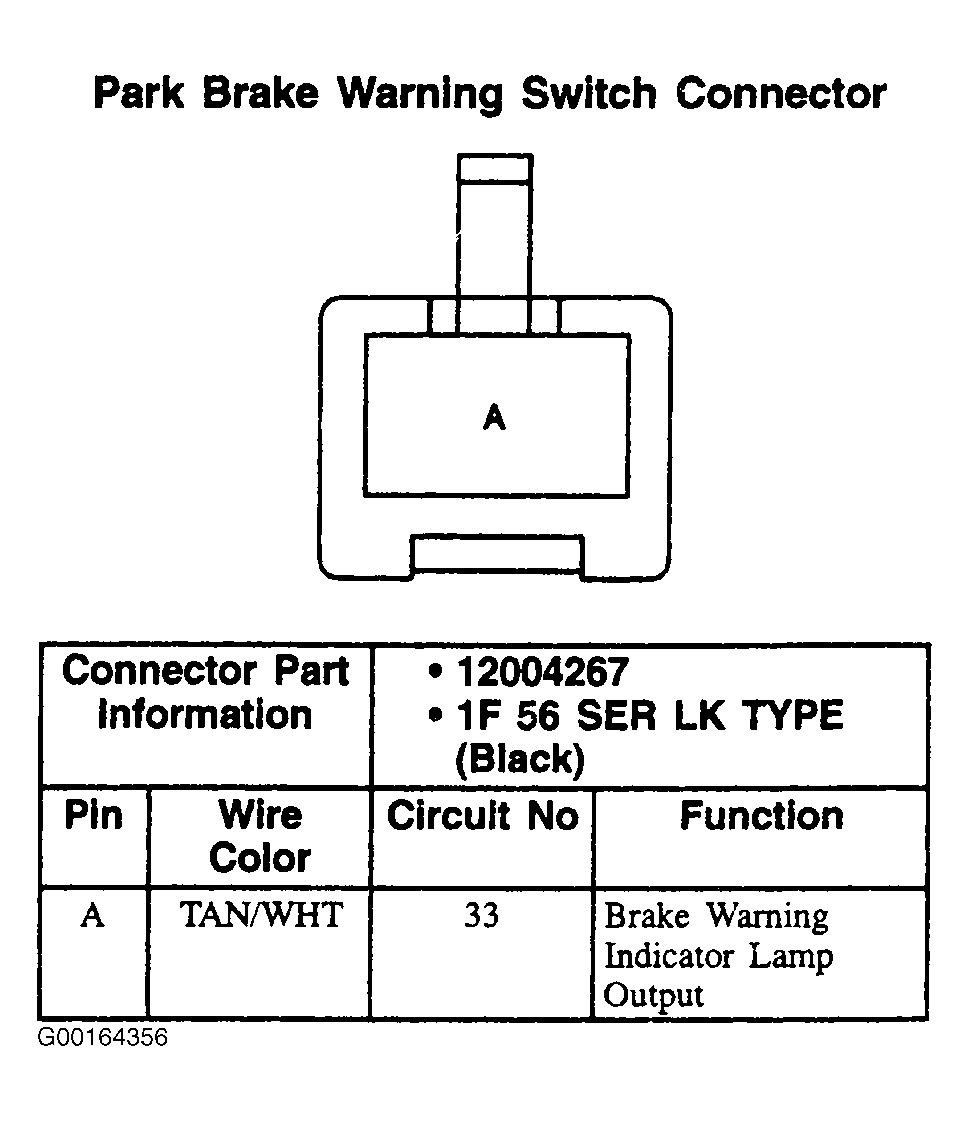

Fig 1: Park Brake Warning Switch - 1-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
