Optical Fuel Temperature Sensor (Diesel)

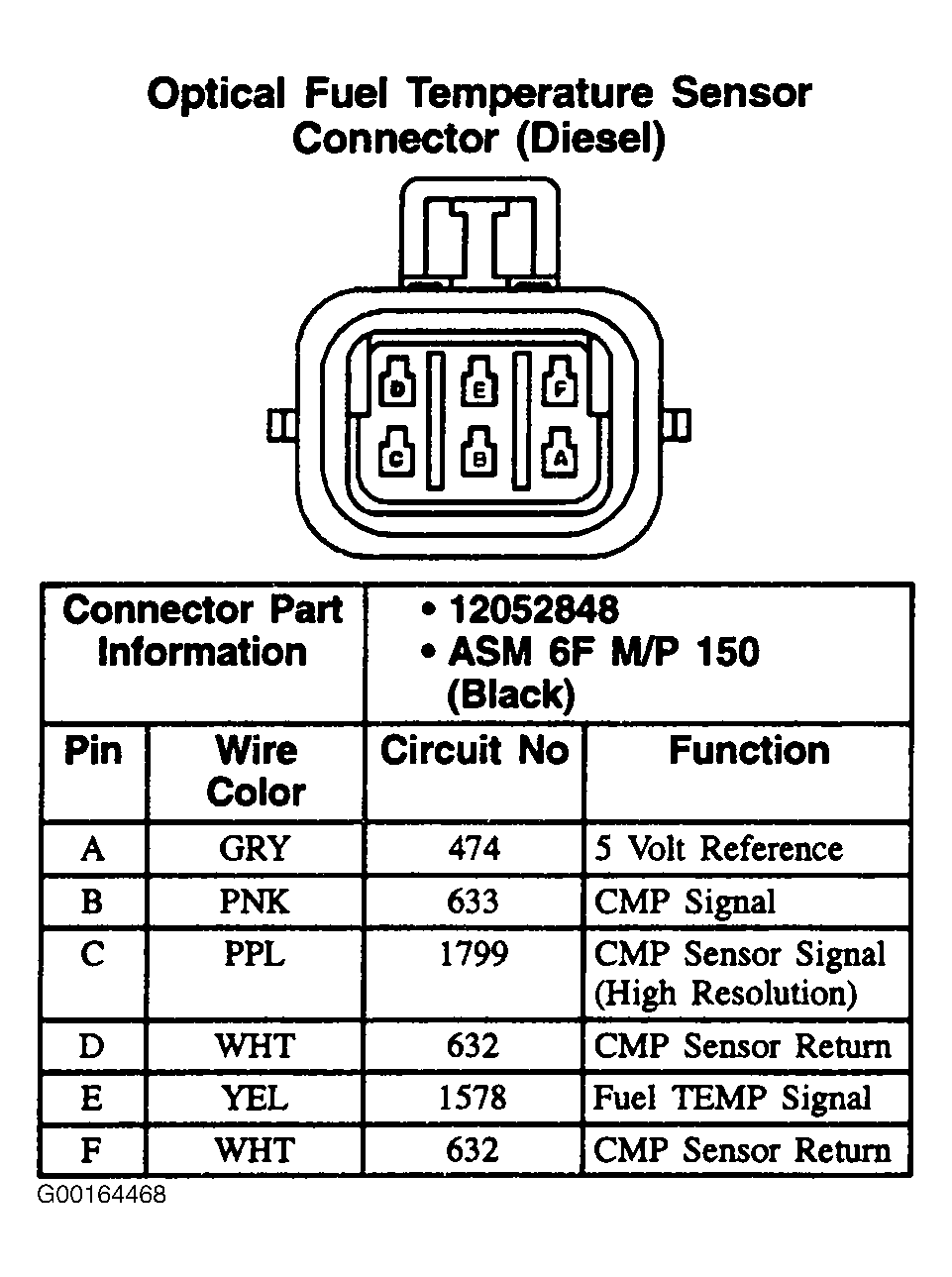

Fig 1: Optical Fuel Temperature Sensor (Diesel) - 6-Pin Connector, Black

G00164468

Courtesy of GENERAL MOTORS CORP.
