Chevy Express G1500, Van Cargo
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification (G Series)
>>
Wheel Speed Sensor
Wheel Speed Sensor

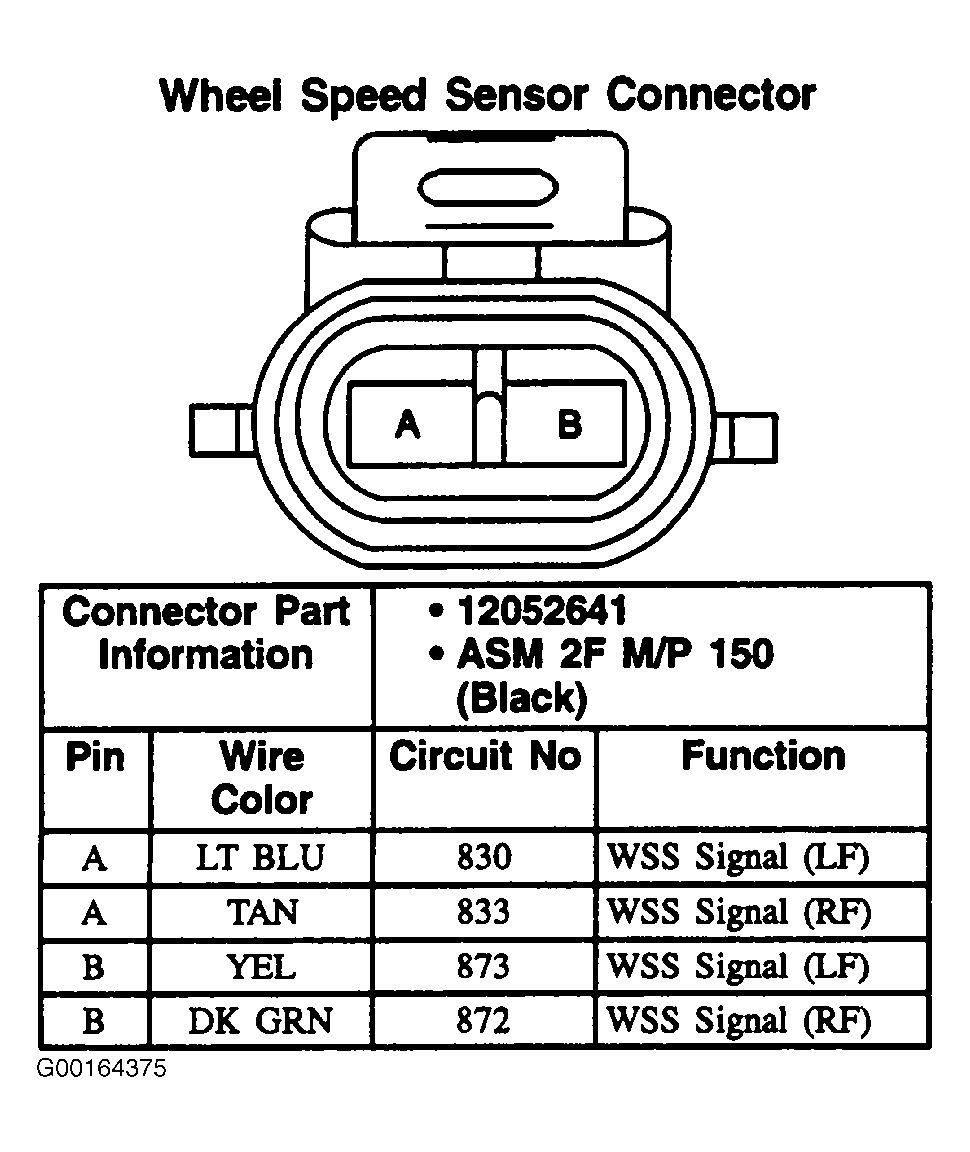

Fig 1: Wheel Speed Sensor - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
