Connector Terminal Identification (G Series)
>>
TCC/STOPLAMP Switch
TCC/STOPLAMP Switch

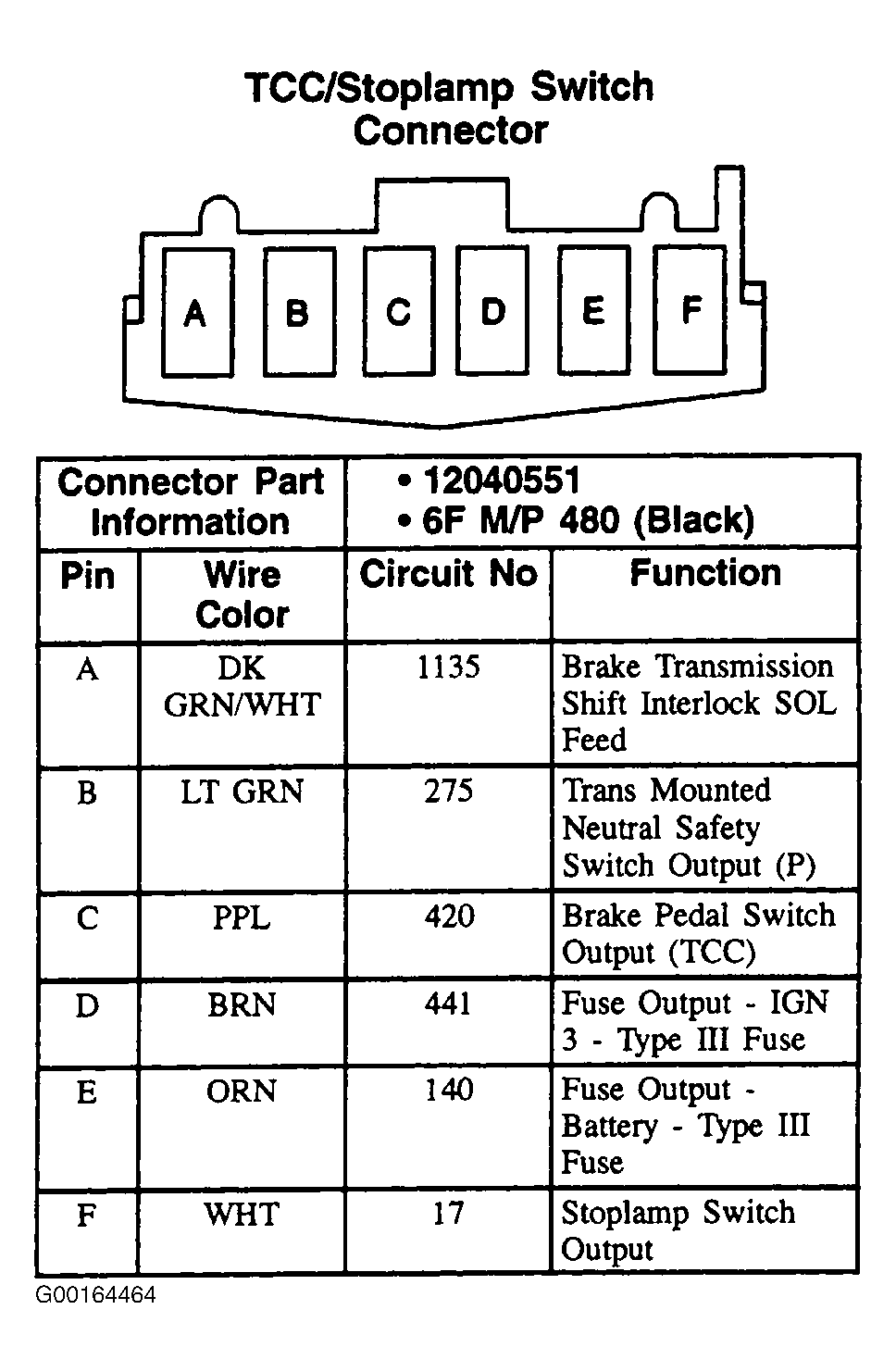

Fig 1: TCC/Stoplamp Switch - 6-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
