Connector Terminal Identification (G Series)
>>
Rear Auxiliary HVAC Control Module
Rear Auxiliary HVAC Control Module

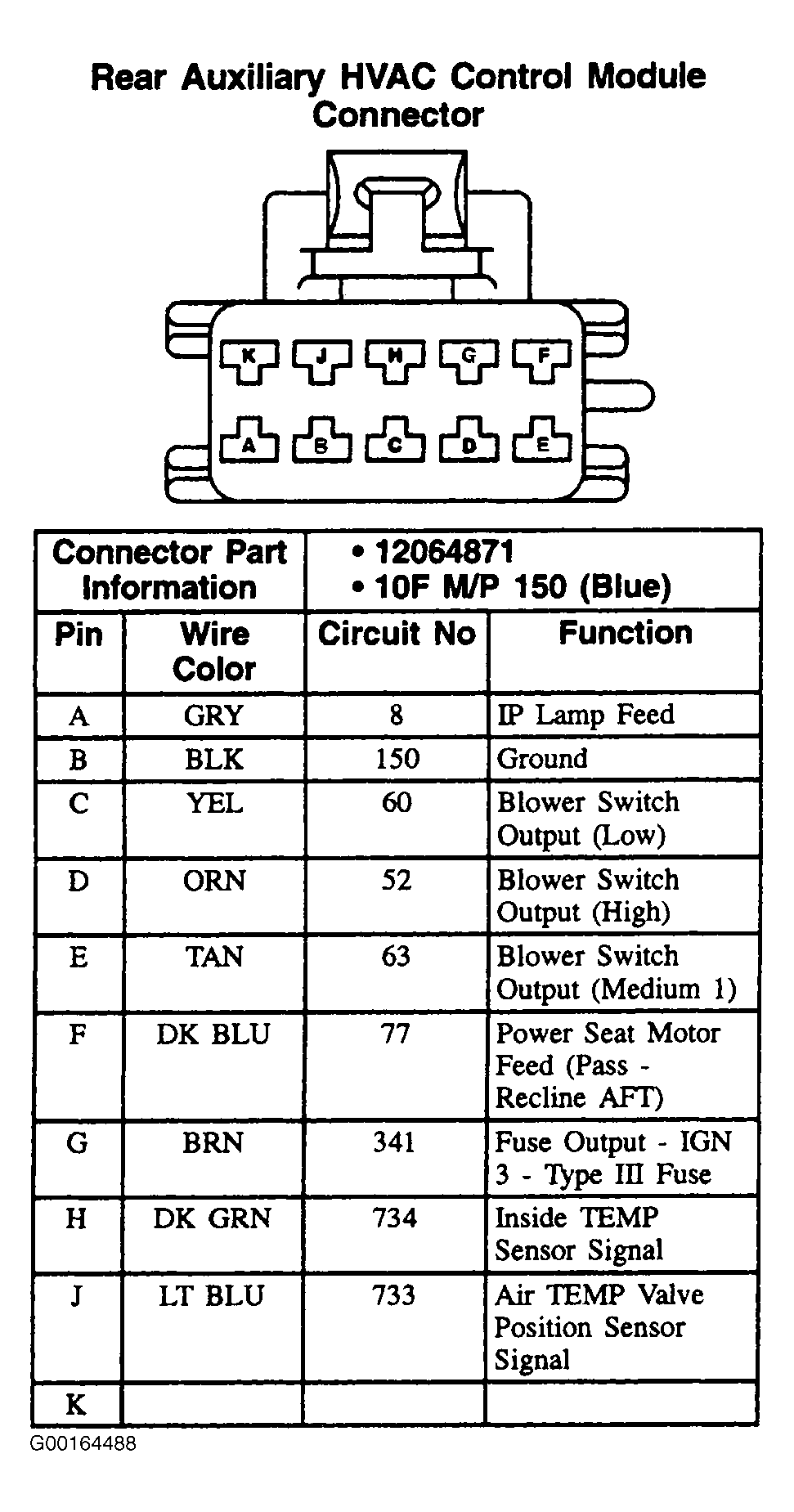

Fig 1: Rear Auxiliary HVAC Control Module - 10-Pin Connector, Blue
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
