Chevy Express G1500, Van Cargo
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification (G Series)
>>
Power Steering Control Module
Power Steering Control Module

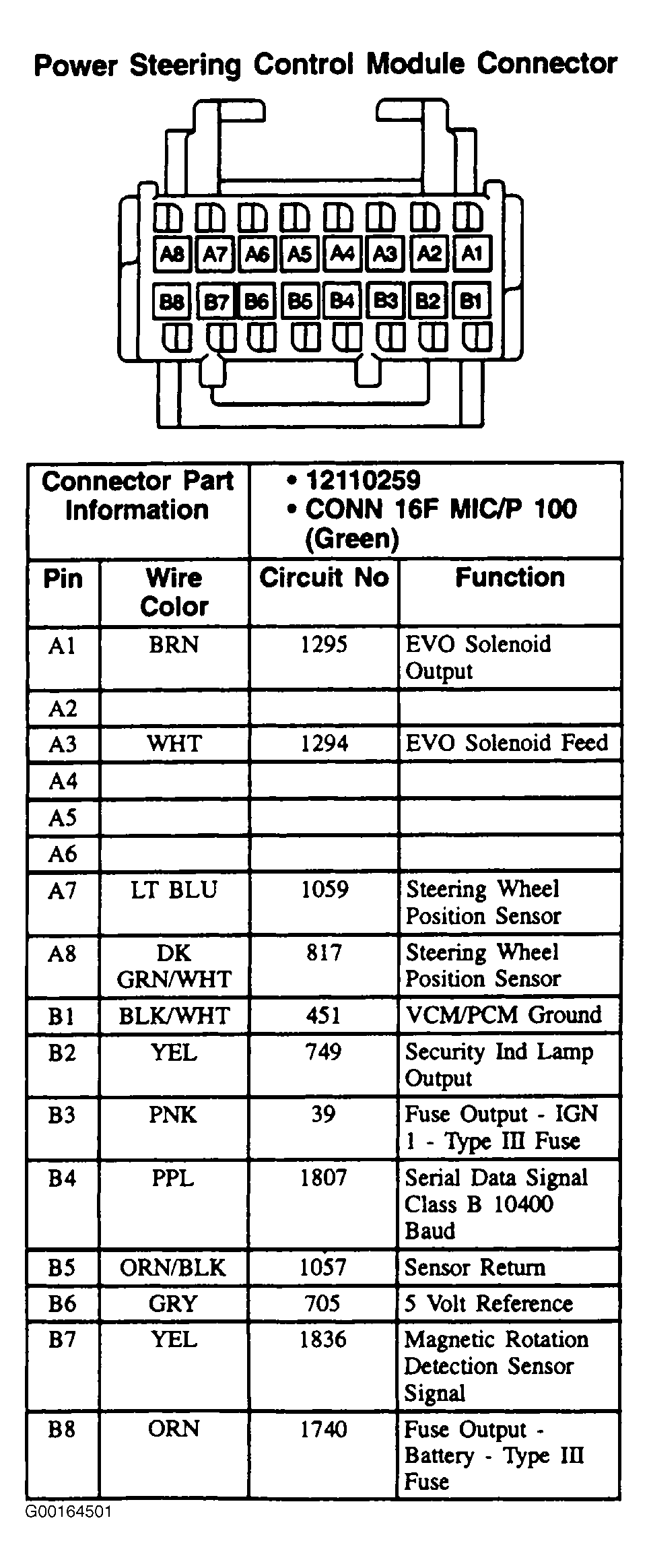

Fig 1: Power Steering Control Module - 16-Pin Connector, Green
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
