Connector Terminal Identification (G Series)
>>
Instrument Panel Relay Center
Instrument Panel Relay Center

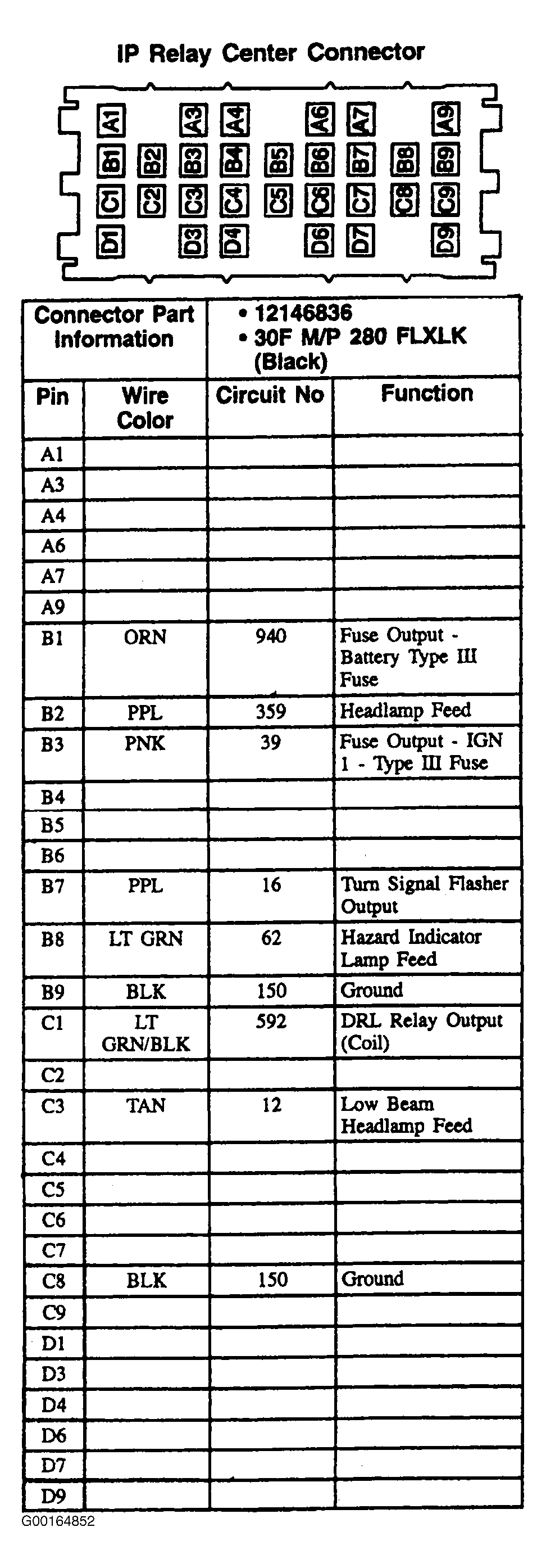

Fig 1: Instrument Panel Relay Center - 30-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
