Chevy Express G1500, Van Cargo
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification (G Series)
>>
Instrument Panel Fuse Block
Instrument Panel Fuse Block

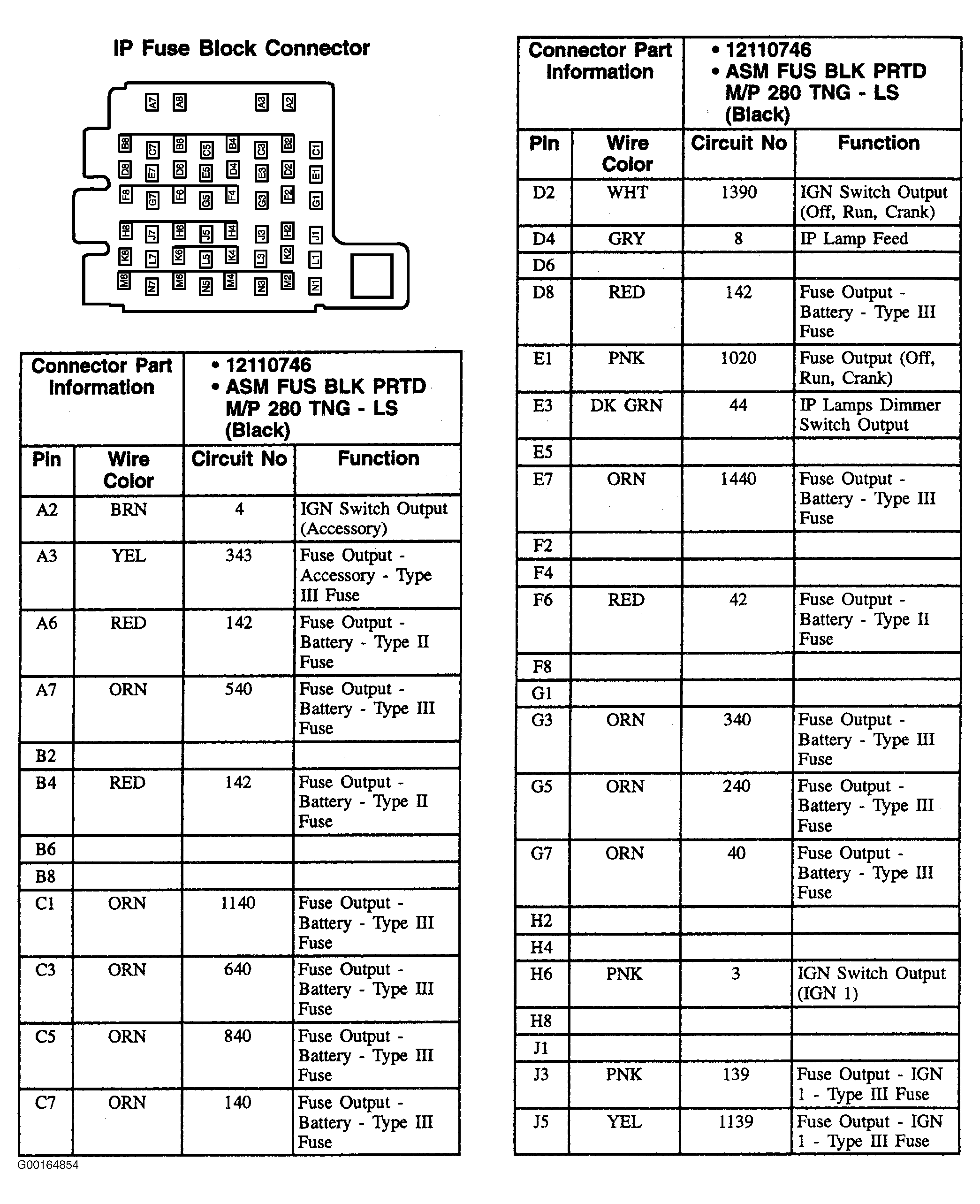

Fig 1: Instrument Panel Fuse Block - 52-Pin Connector, Black (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

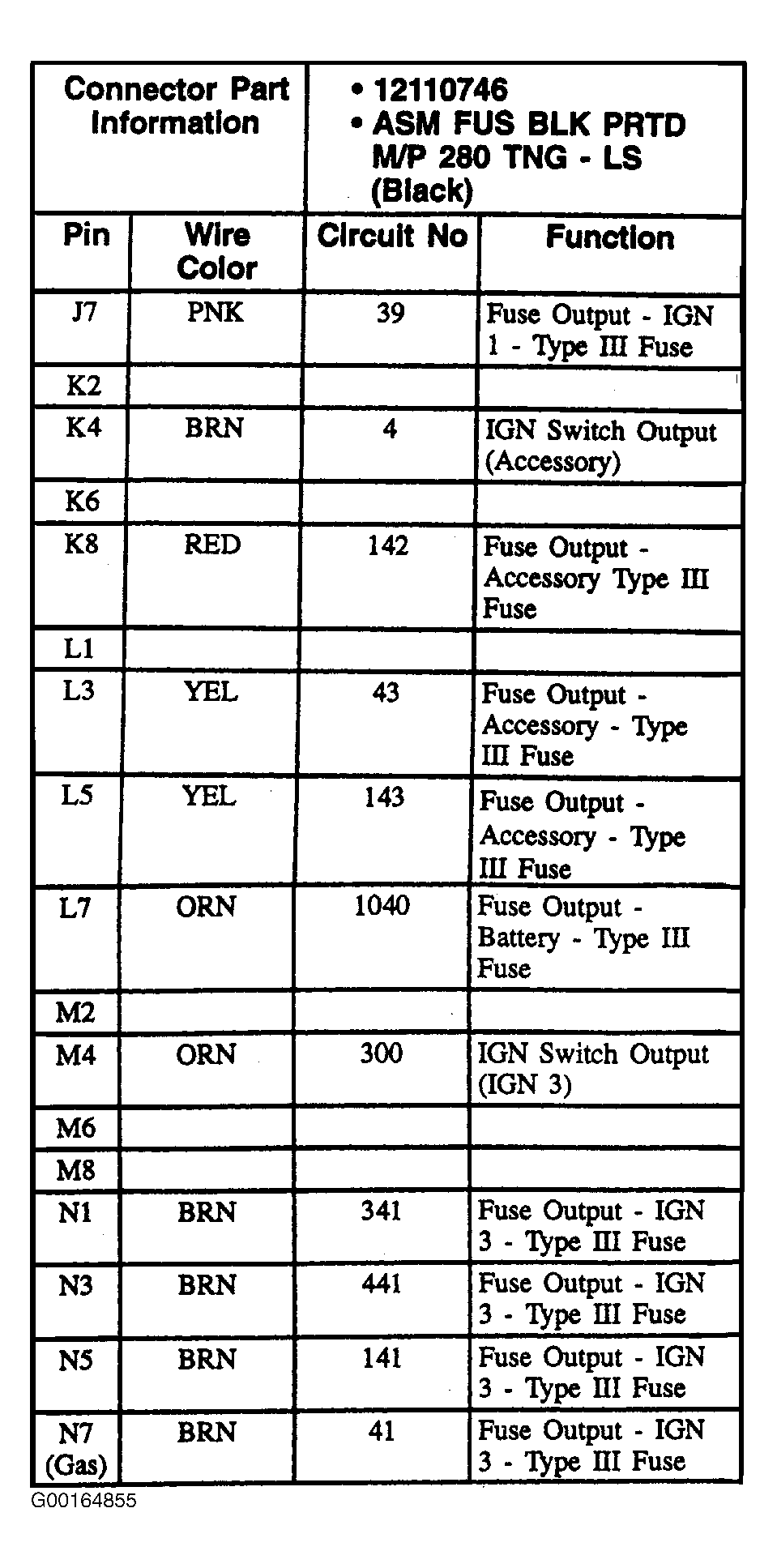

Fig 2: Instrument Panel Fuse Block - 52-Pin Connector, Black (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
