Inflatable Restraint Sensing & Diagnostic Module

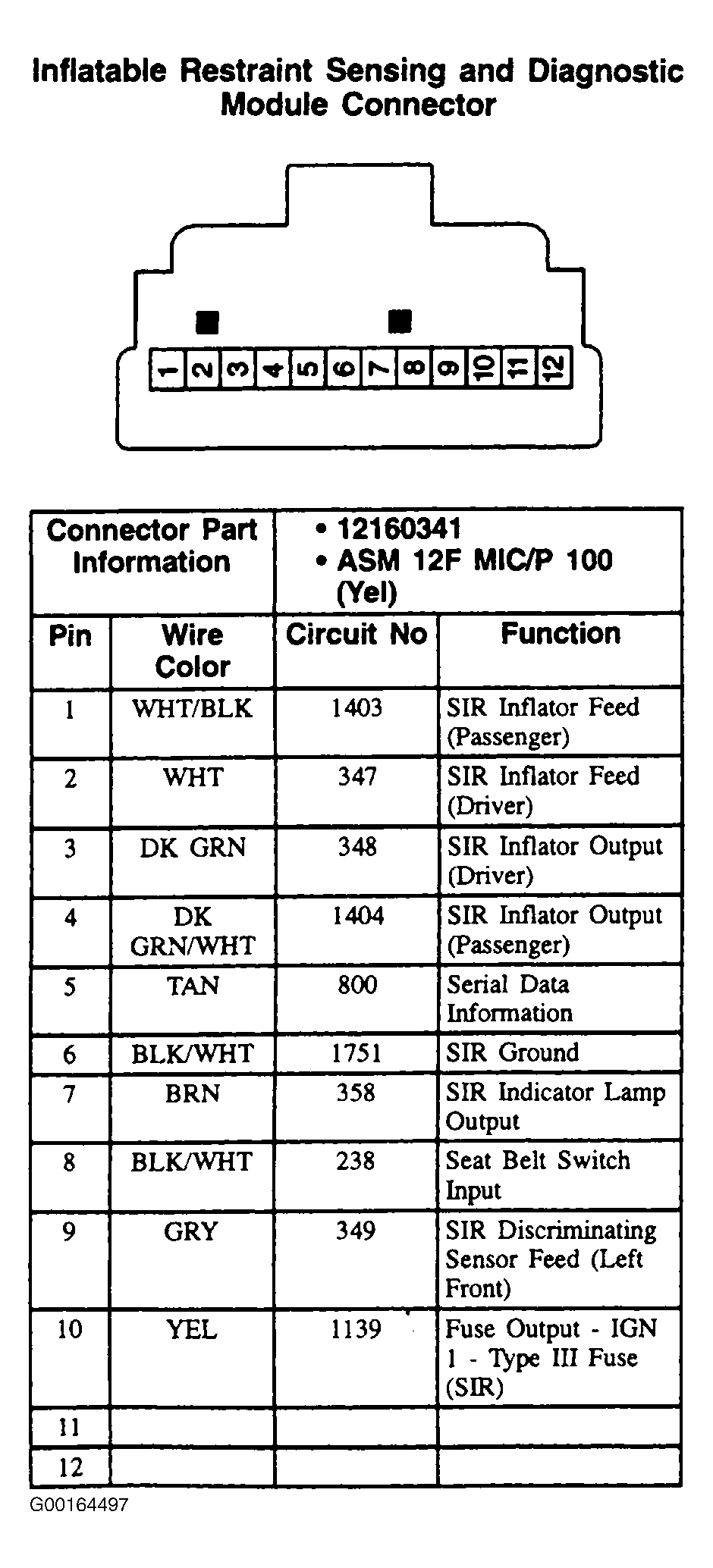

Fig 1: Inflatable Restraint Sensing & Diagnostic Module - 12-Pin Connector, Yellow

G00164497

Courtesy of GENERAL MOTORS CORP.
