Home >> Chevrolet >> 1997 >> Chevy Express G1500, Van Cargo >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification (G Series) >> Inflatable Restraint Front End Discriminating Sensor

Inflatable Restraint Front End Discriminating Sensor

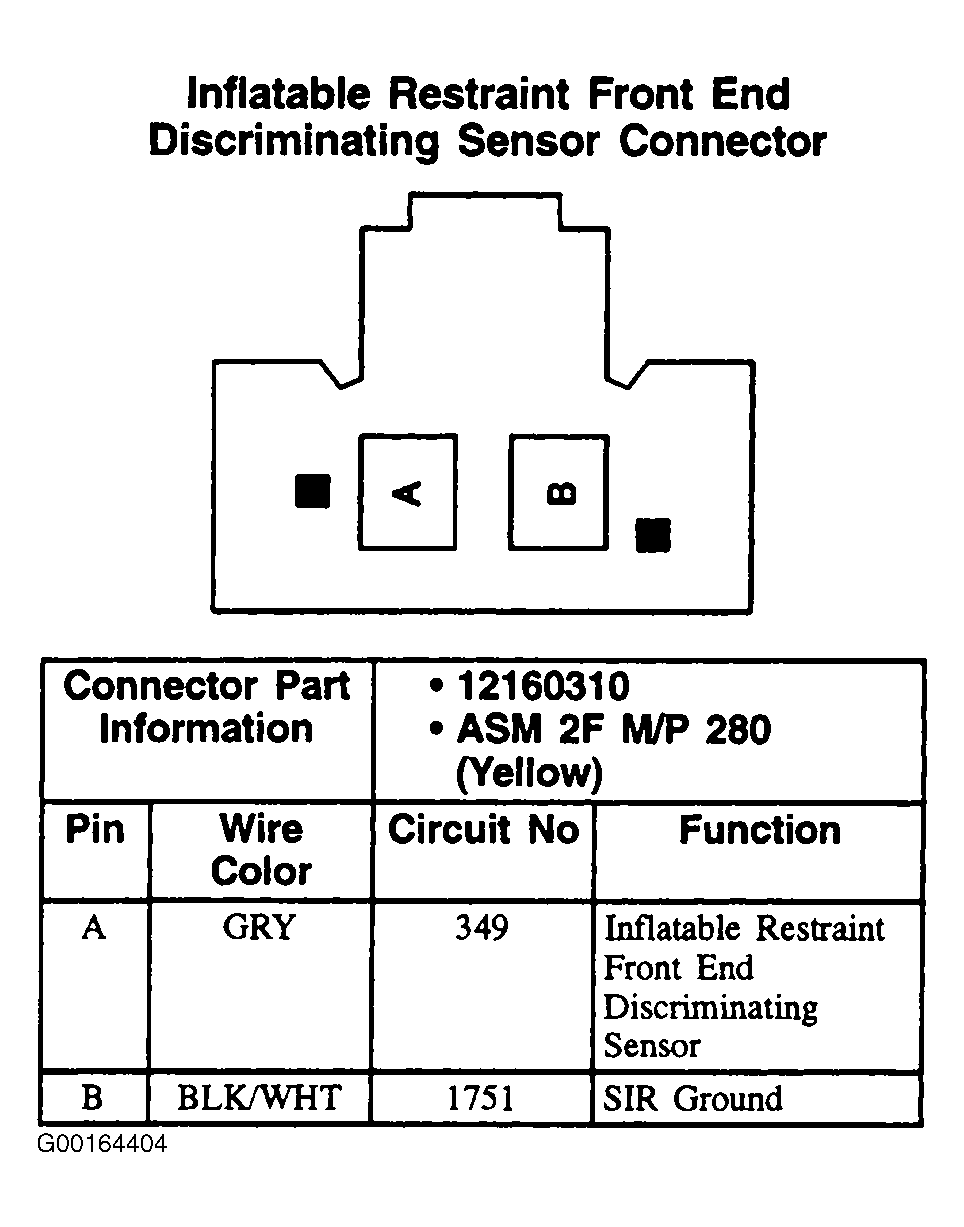

Fig 1: Inflatable Restraint Front End Discriminating Sensor - 2-Pin Connector, Yellow

G00164404

Courtesy of GENERAL MOTORS CORP.
