Connector Terminal Identification (G Series)
>>
Illuminated Entry Module
Illuminated Entry Module

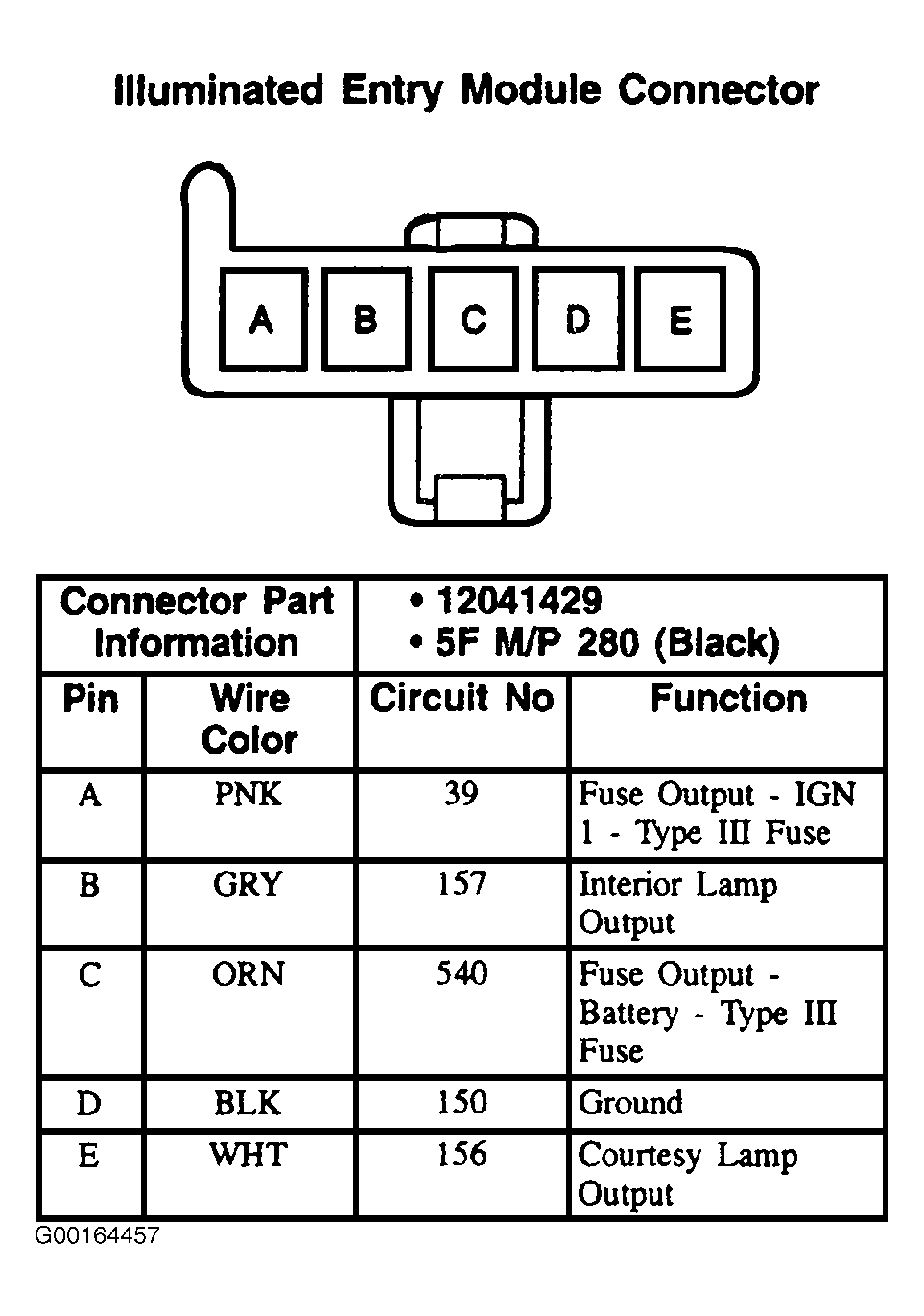

Fig 1: Illuminated Entry Module - 5-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
