Connector Terminal Identification (G Series)
>>
Ignition Control Module
Ignition Control Module

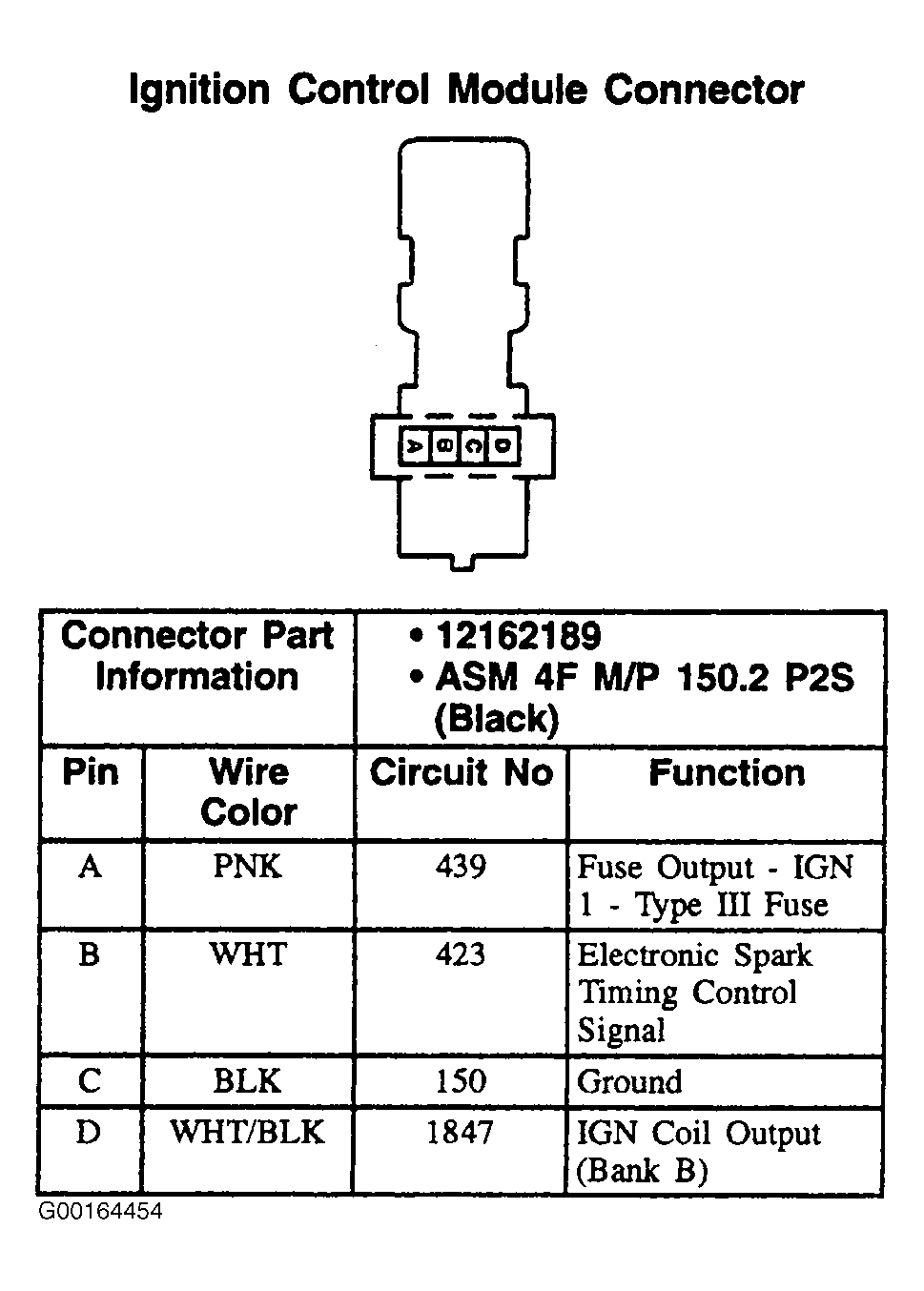

Fig 1: Ignition Control Module - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
