Heater & A/C Control Logic Module

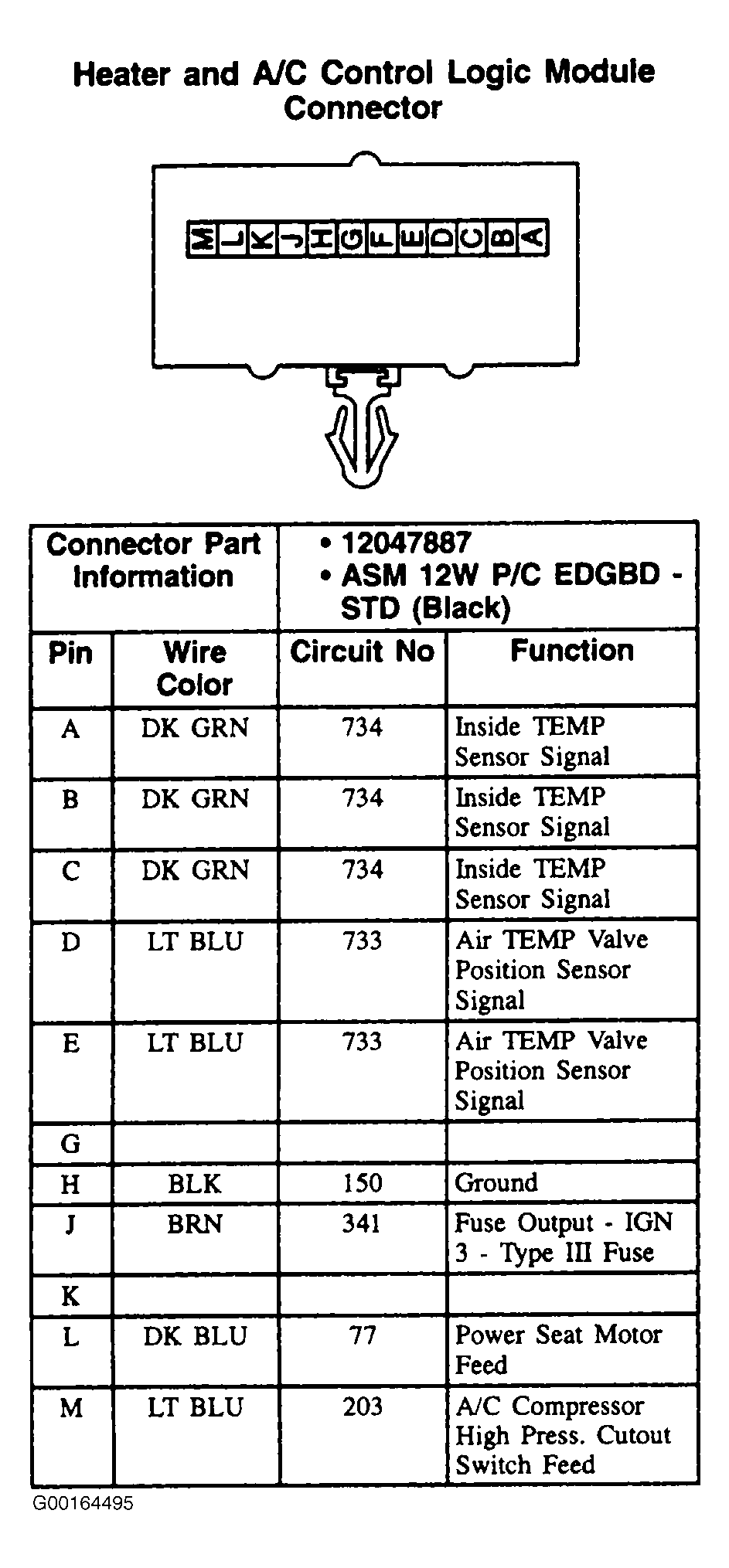

Fig 1: Heater & A/C Control Logic Module - 12-Pin Connector, Black

G00164495

Courtesy of GENERAL MOTORS CORP.
