Fuel Sender Buffer Module

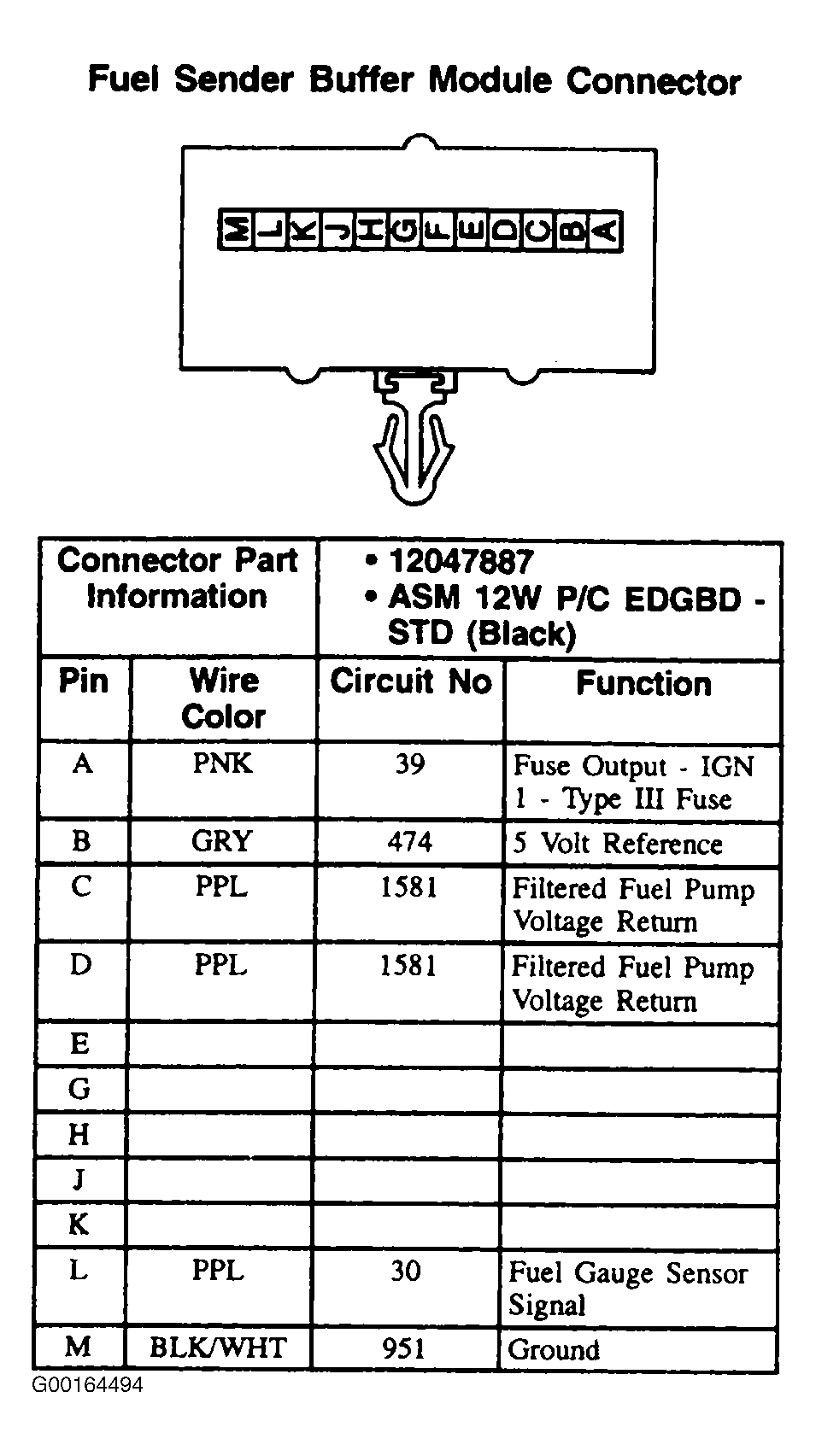

Fig 1: Fuel Sender Buffer Module - 12-Pin Connector, Black

G00164494

Courtesy of GENERAL MOTORS CORP.
