Front Auxiliary HVAC Control Module (Passenger)

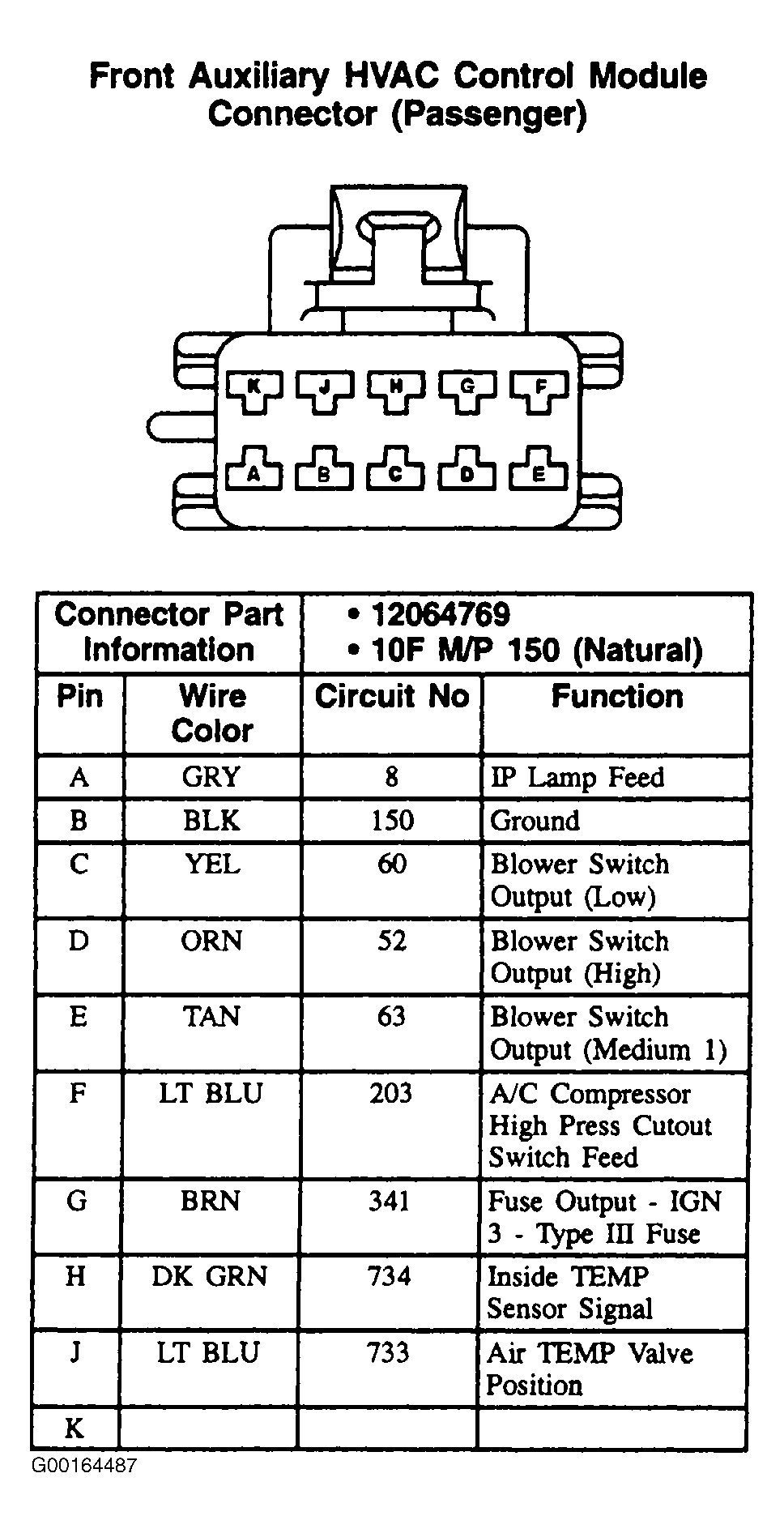

Fig 1: Front Auxiliary HVAC Control Module (Passenger) - 10-Pin Connector, Natural

G00164487

Courtesy of GENERAL MOTORS CORP.
