Electronic Brake Control Module (C3)

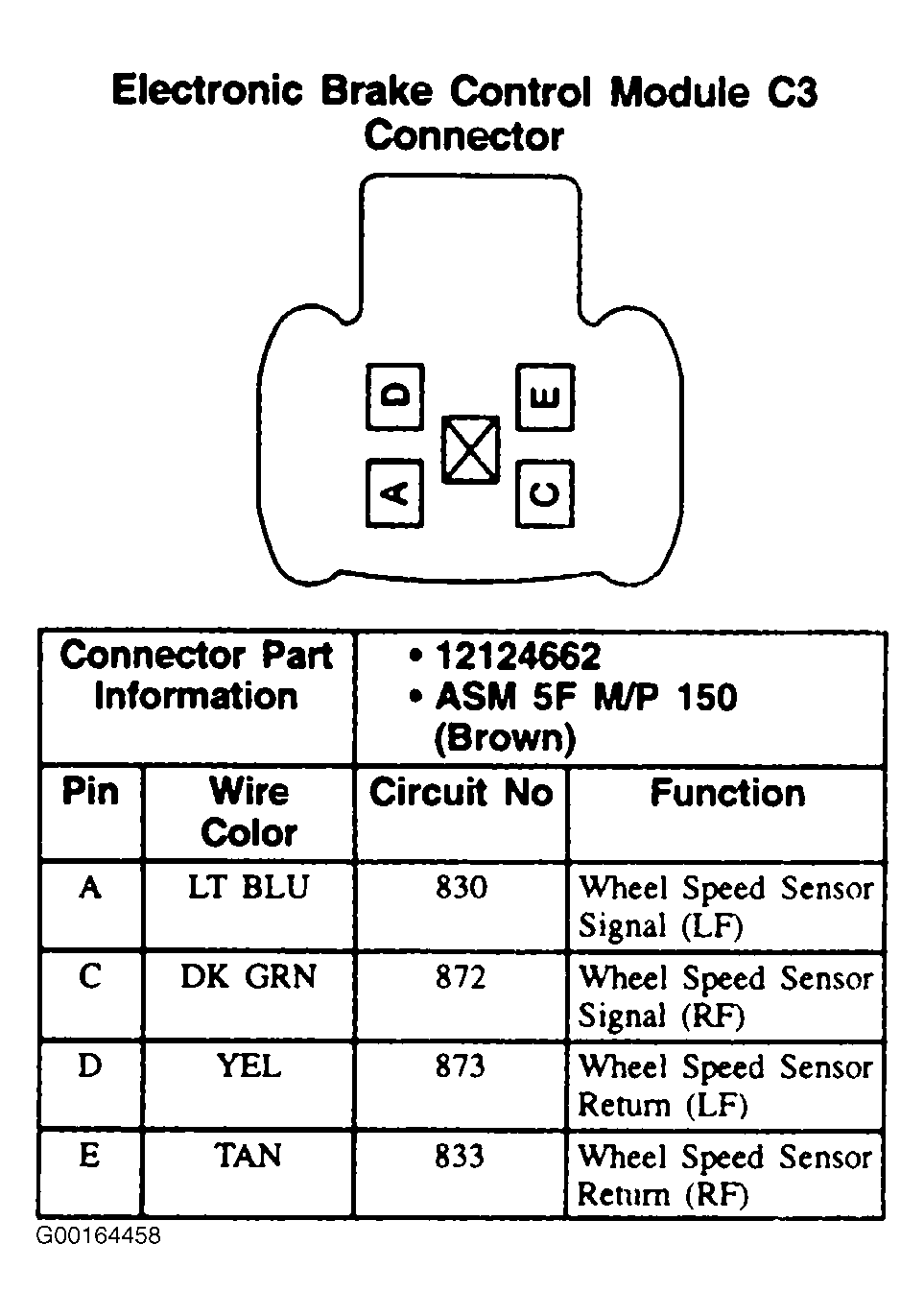

Fig 1: Electronic Brake Control Module (C3) - 5-Pin Connector, Brown

G00164458

Courtesy of GENERAL MOTORS CORP.
