Electronic Brake Control Module (C1)

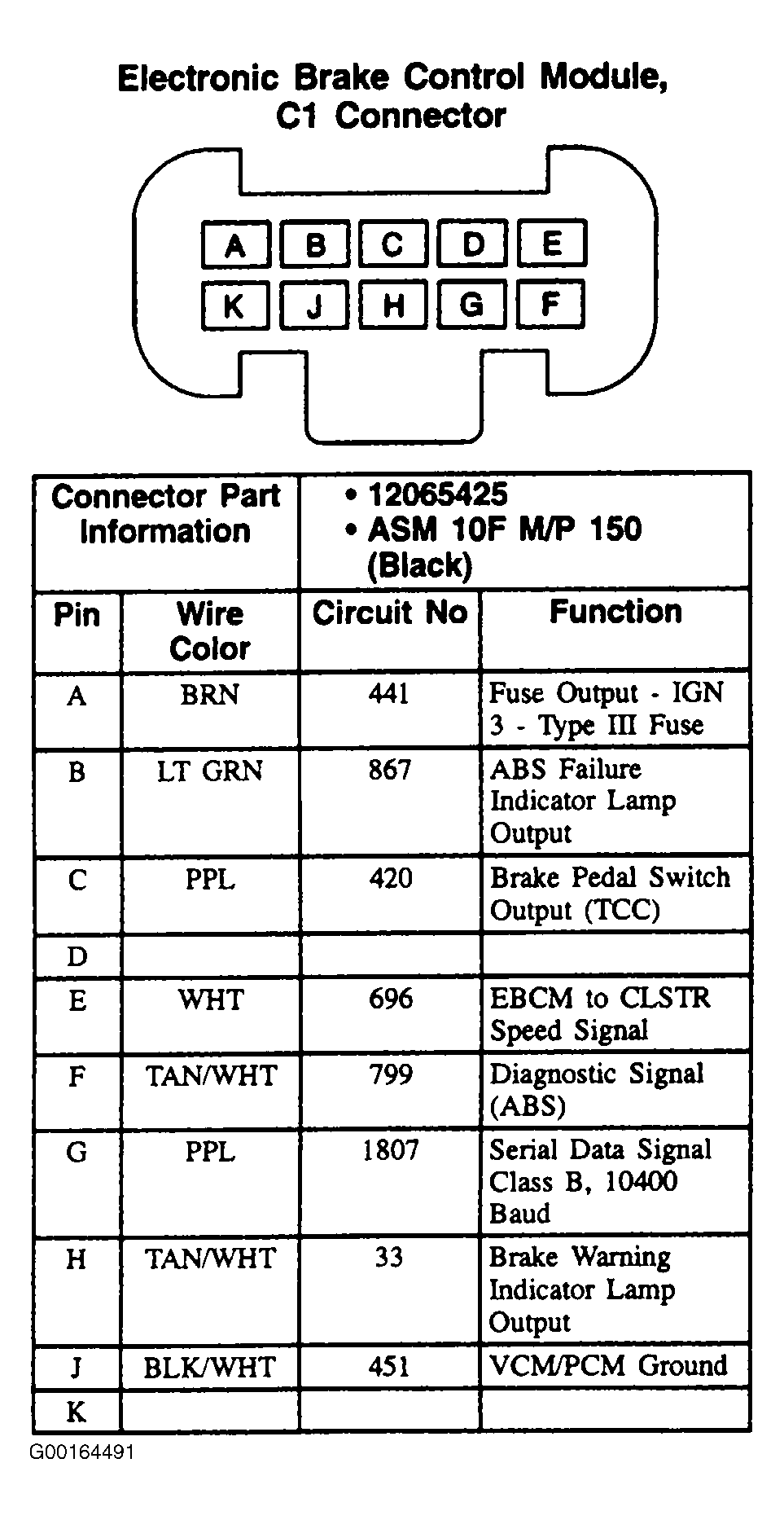

Fig 1: Electronic Brake Control Module (C1) - 10-Pin Connector, Black

G00164491

Courtesy of GENERAL MOTORS CORP.
