Chevy Express G1500, Van Cargo
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification (G Series)
>>
Cigarette Lighter
Cigarette Lighter

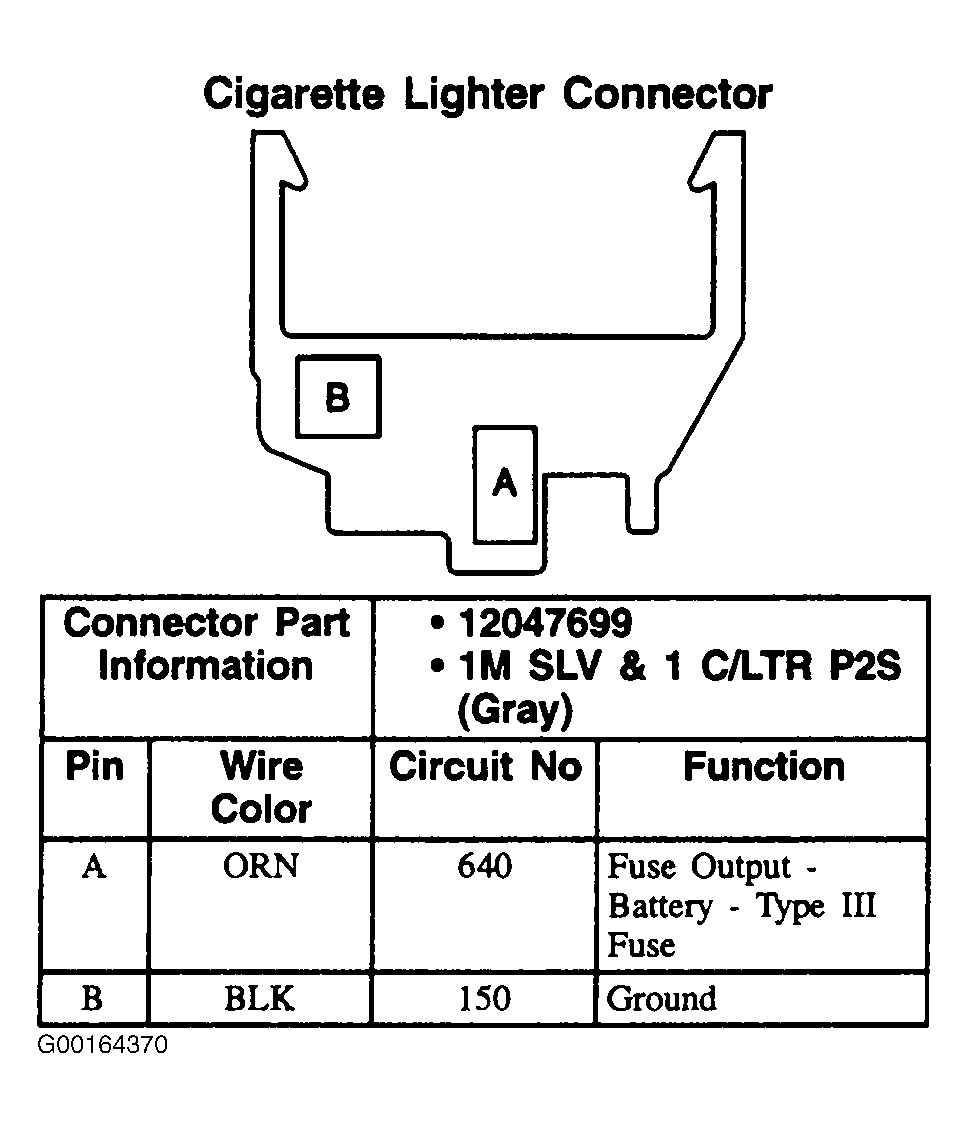

Fig 1: Cigarette Lighter - 2-Pin Connector, Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
