Connector Terminal Identification (G Series)
>>
Backup Lamp
Backup Lamp

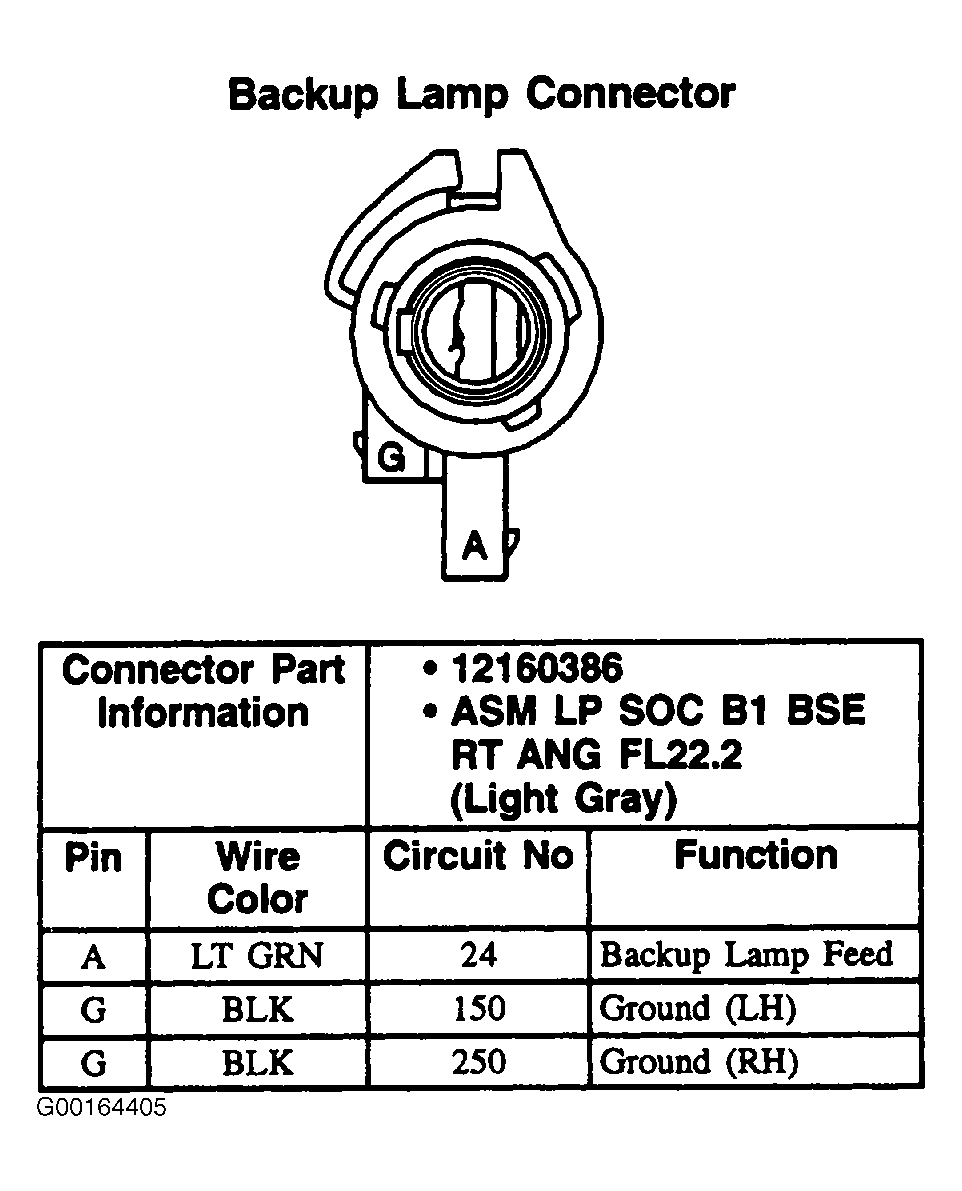

Fig 1: Backup Lamp - 2-Pin Connector, Light Gray
Courtesy of GENERAL MOTORS CORP.
