Accelerator Pedal Position Module (Diesel)

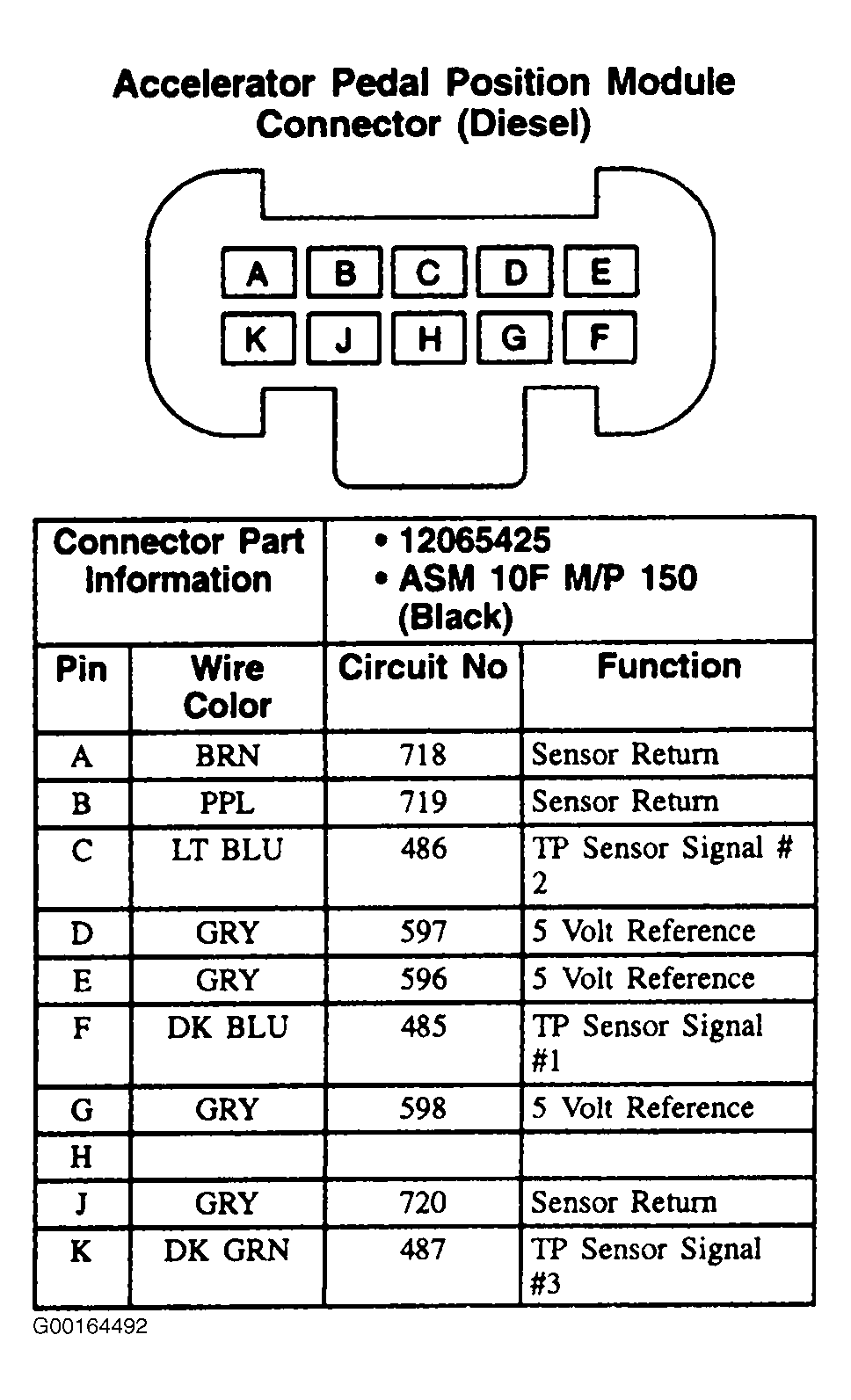

Fig 1: Accelerator Pedal Position Module (Diesel) - 10-Pin Connector, Black

G00164492

Courtesy of GENERAL MOTORS CORP.
