Convenience Center C1 & C2
Convenience Center C1 & C2

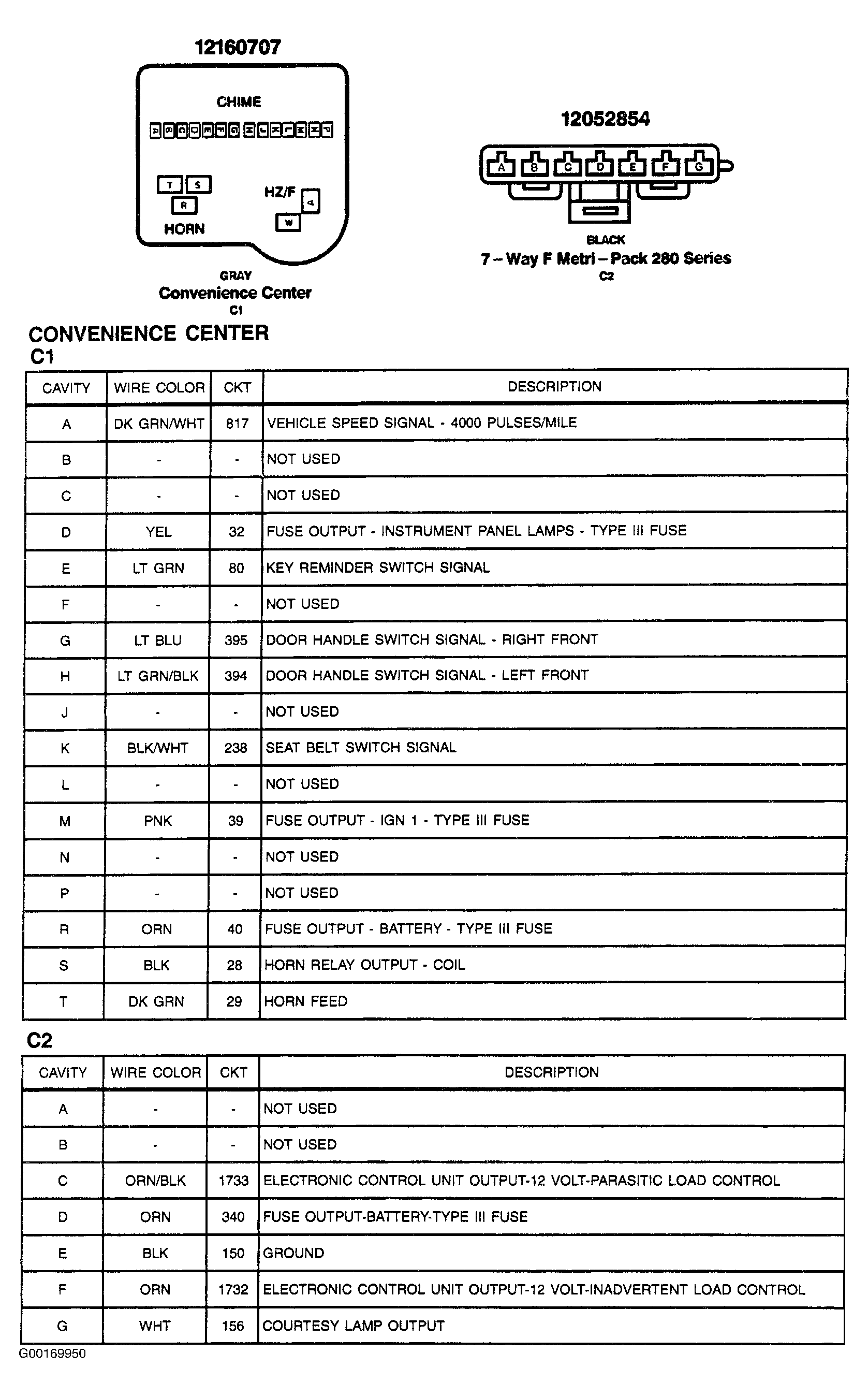

Fig 1: Convenience Center C1 & C2 - 17-Pin Connector (Gray) & 7-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
