Master Window Switch C1 (4 Door) & C2

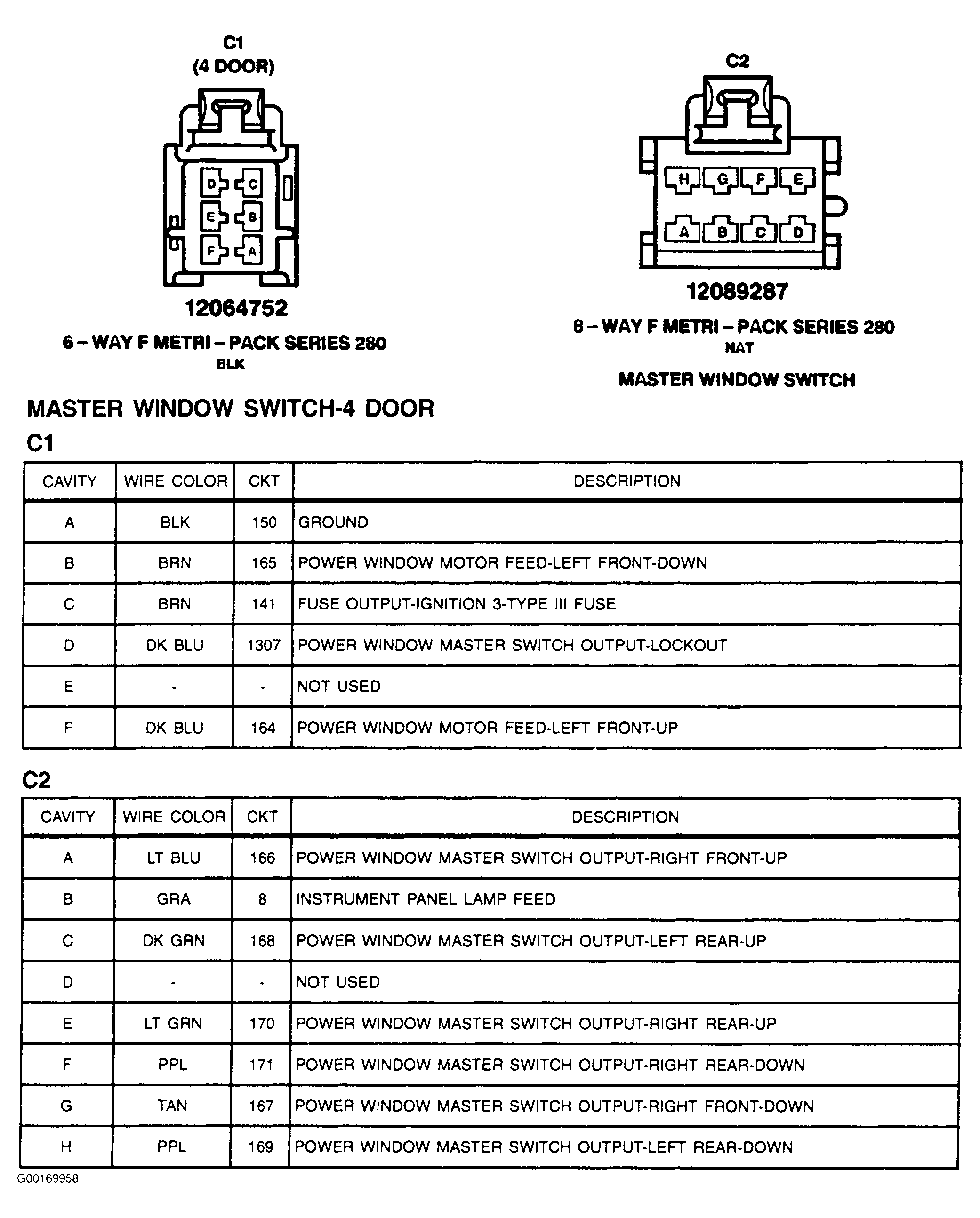

Fig 1: Master Window Switch C1 (4 Door) & C2 - 6-Pin Connector (Black) & 8-Pin Connector (Natural)

G00169958

Courtesy of GENERAL MOTORS CORP.
