Component Locations

COMPONENT LOCATIONS

Component	Location
Data Link Connector (DLC)	Lower Driver Side Of Instrument Panel. See Fig 1 .
Electronic Brake Control Module (EBCM)	Lower Driver Side Of Instrument Panel. See Fig 2 .
Fuse Block	Lower Driver Side Of Instrument Panel. See Fig 3 .
Instrument Panel Cluster	Driver Side Of Instrument Panel. See Fig 4 .
Powertrain Control Module (PCM)	Passenger Front Corner Of Cabin, Behind Fascia. See Fig 5 .
Sensing Diagnostic Module (SDM)	Under Front Passenger Seat. See Fig 6 .
C100 (28 Terminals)	Driver Side Of Engine Compartment. See Fig 7 .
G110	Passenger Front Of Engine Compartment. See Fig 8 .
G204	Lower Driver Side Of Instrument Panel. See Fig 3 .
P201	Lower Driver Side Of Instrument Panel, Below Steering Column. See Fig 7 .
S171 (VIN 4)	Driver Front Of Engine. See Fig 9 .
S171 (VIN T)	Passenger Side Of Engine Compartment. See Fig 7 .
S205	Lower Driver Side Of Instrument Panel. See Fig 3 .
S209	Lower Driver Side Of Instrument Panel. See Fig 1 .
S217	Lower Driver Side Of Instrument Panel. See Fig 2 .
S277	Lower Driver Side Of Instrument Panel. See Fig 1 .

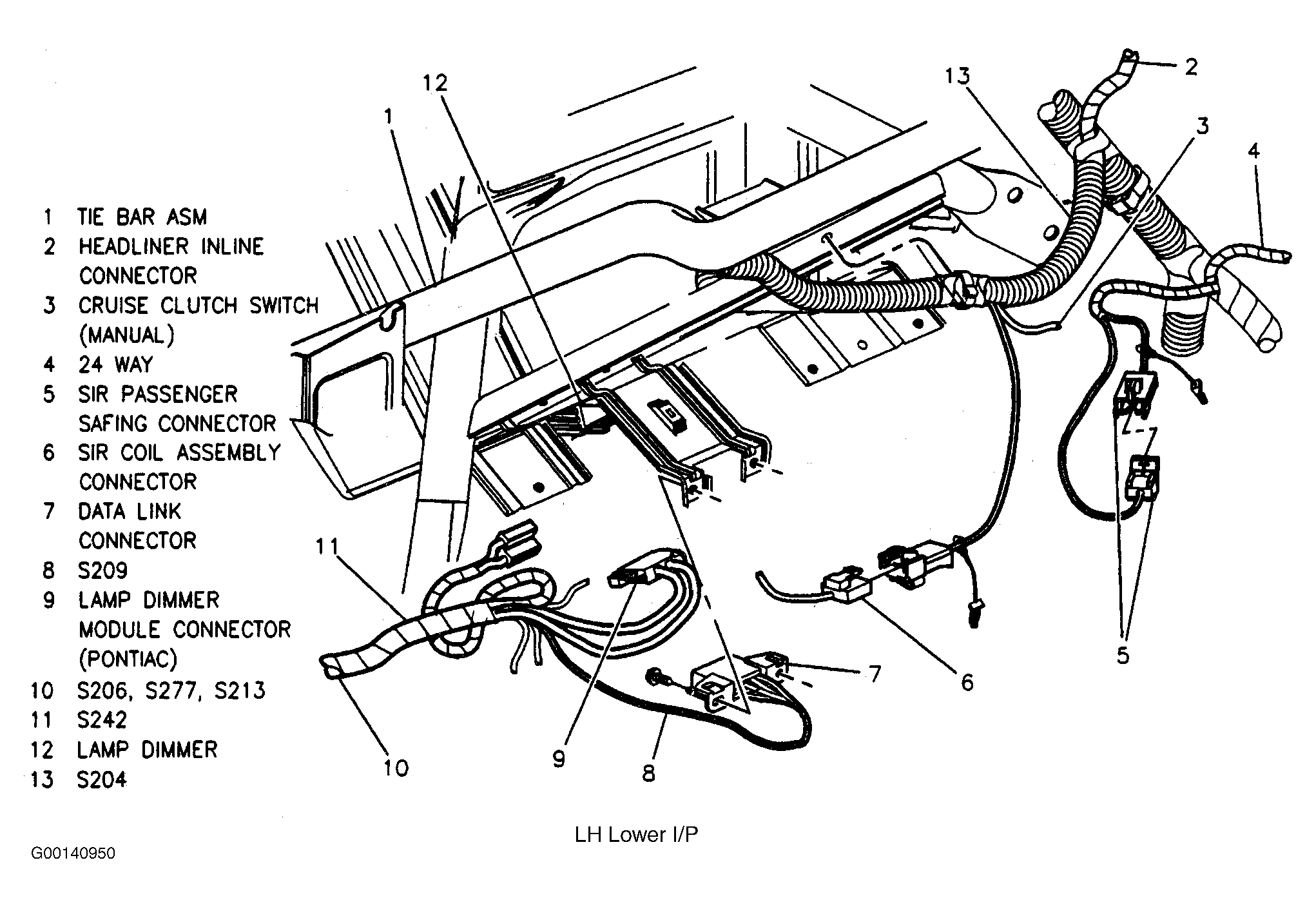

Fig 1: Locating DLC, S209 & S277

G00140950

Courtesy of GENERAL MOTORS CORP.

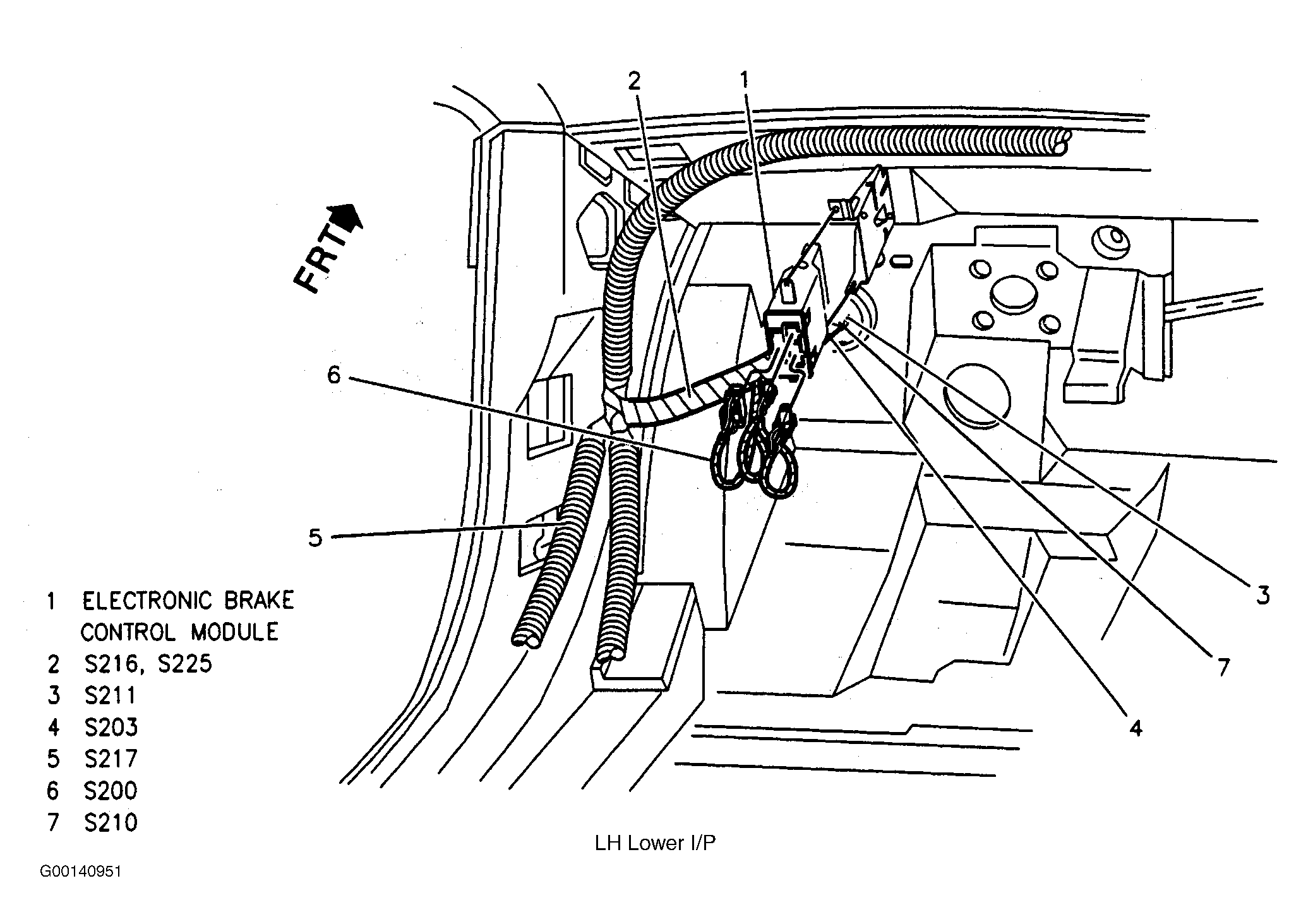

Fig 2: Locating EBCM & S217

G00140951

Courtesy of GENERAL MOTORS CORP.

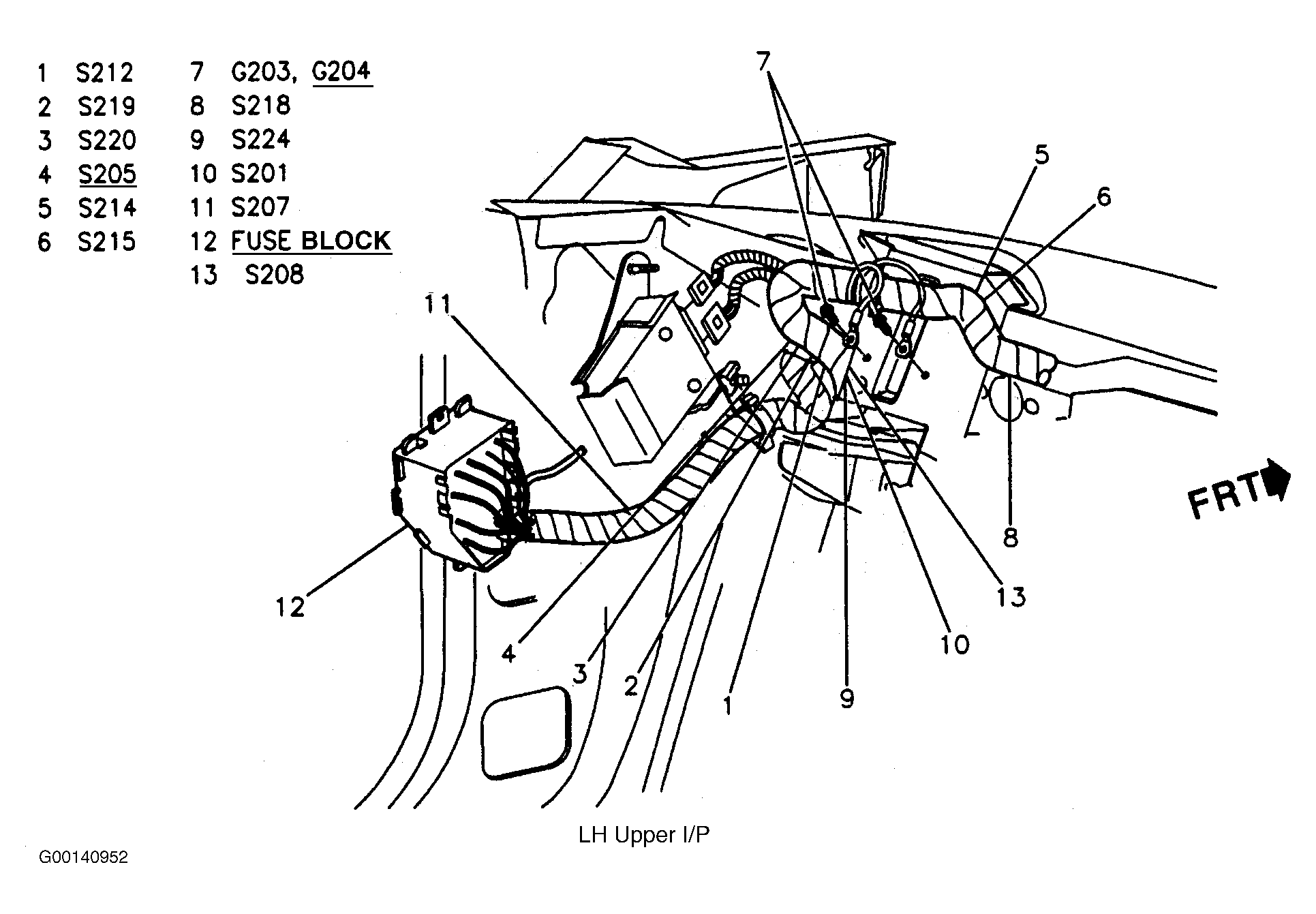

Fig 3: Locating Fuse Block, G204 & S205

G00140952

Courtesy of GENERAL MOTORS CORP.

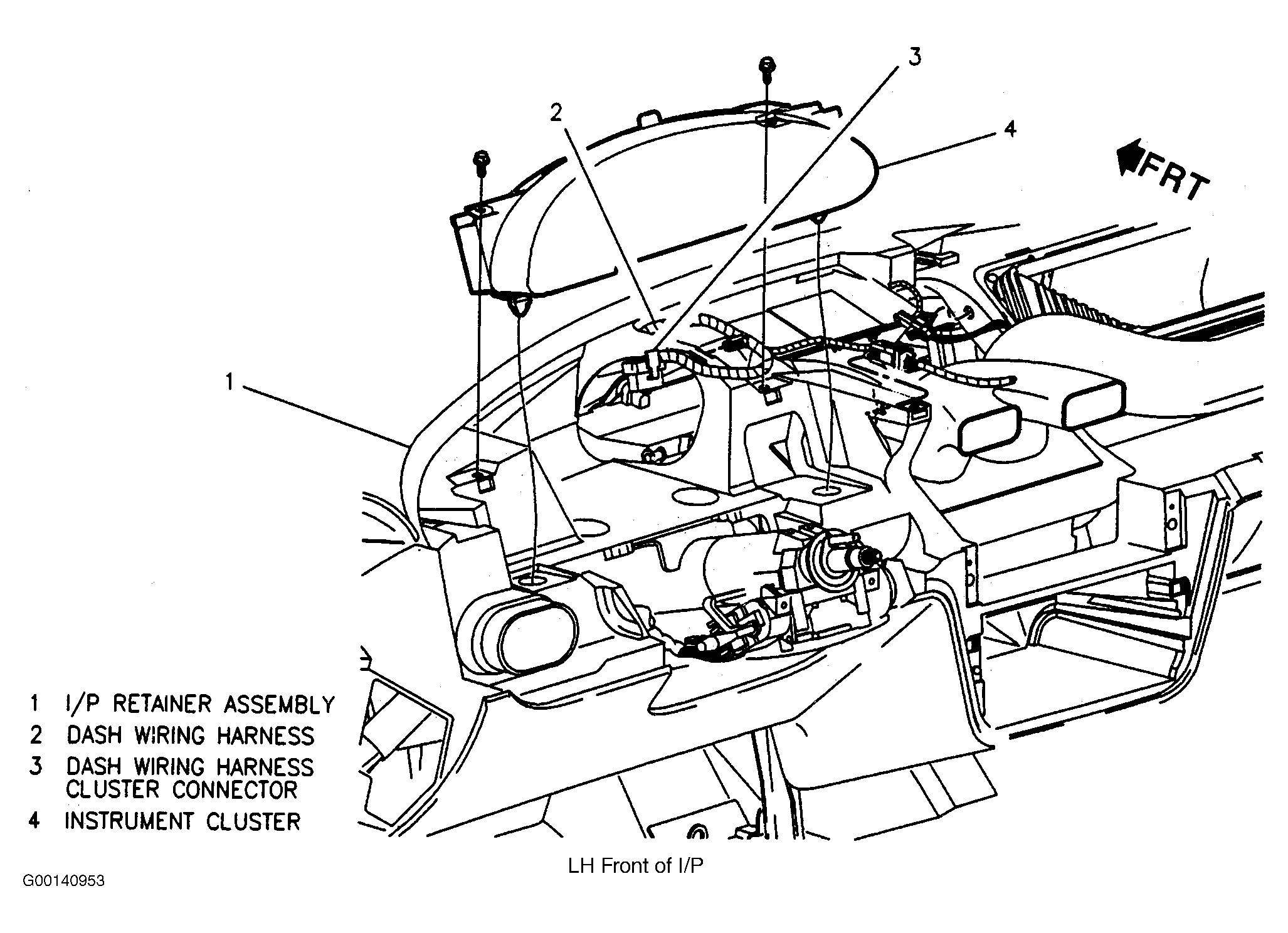

Fig 4: Locating Instrument Panel Cluster

G00140953

Courtesy of GENERAL MOTORS CORP.

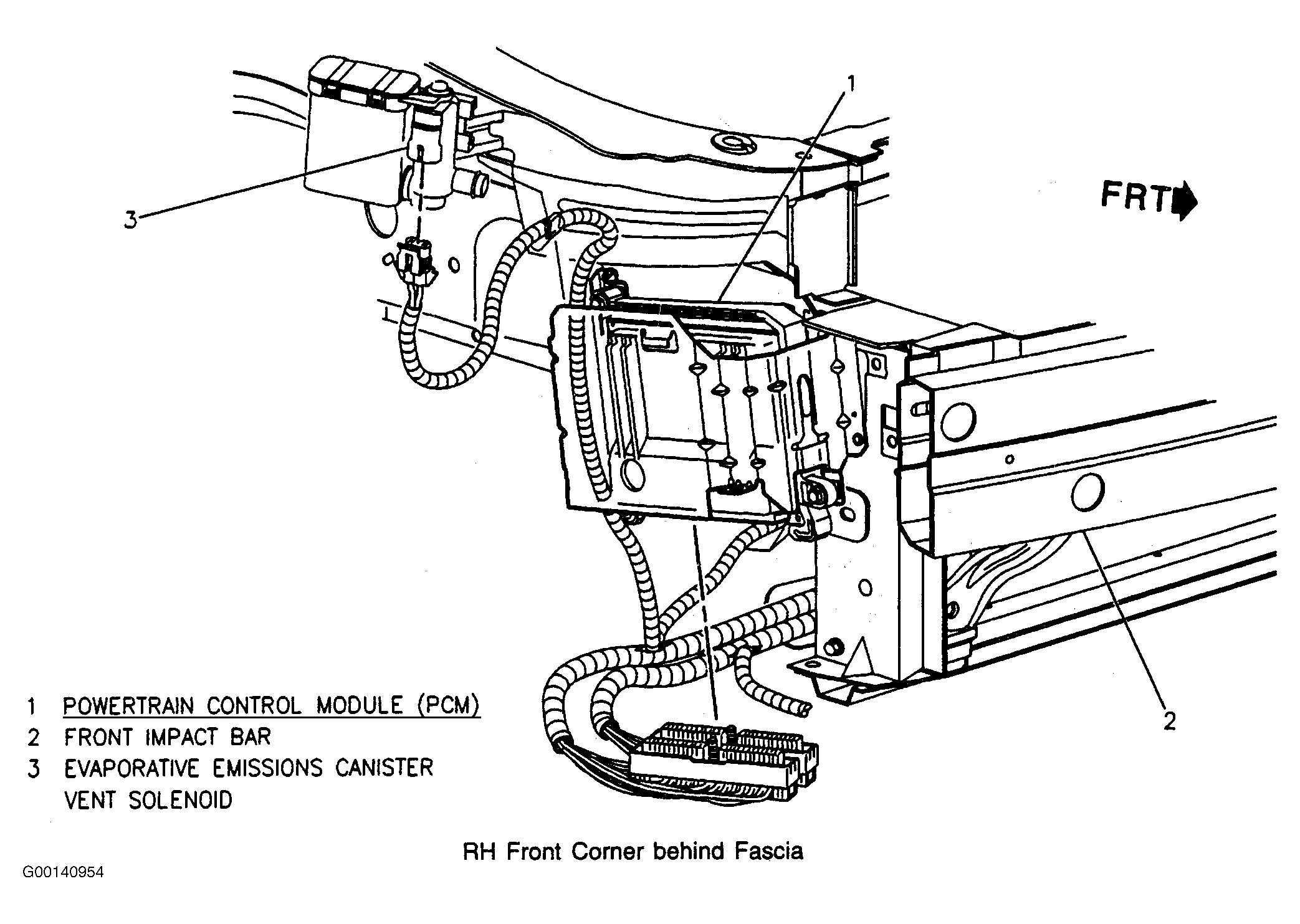

Fig 5: Locating PCM

G00140954

Courtesy of GENERAL MOTORS CORP.

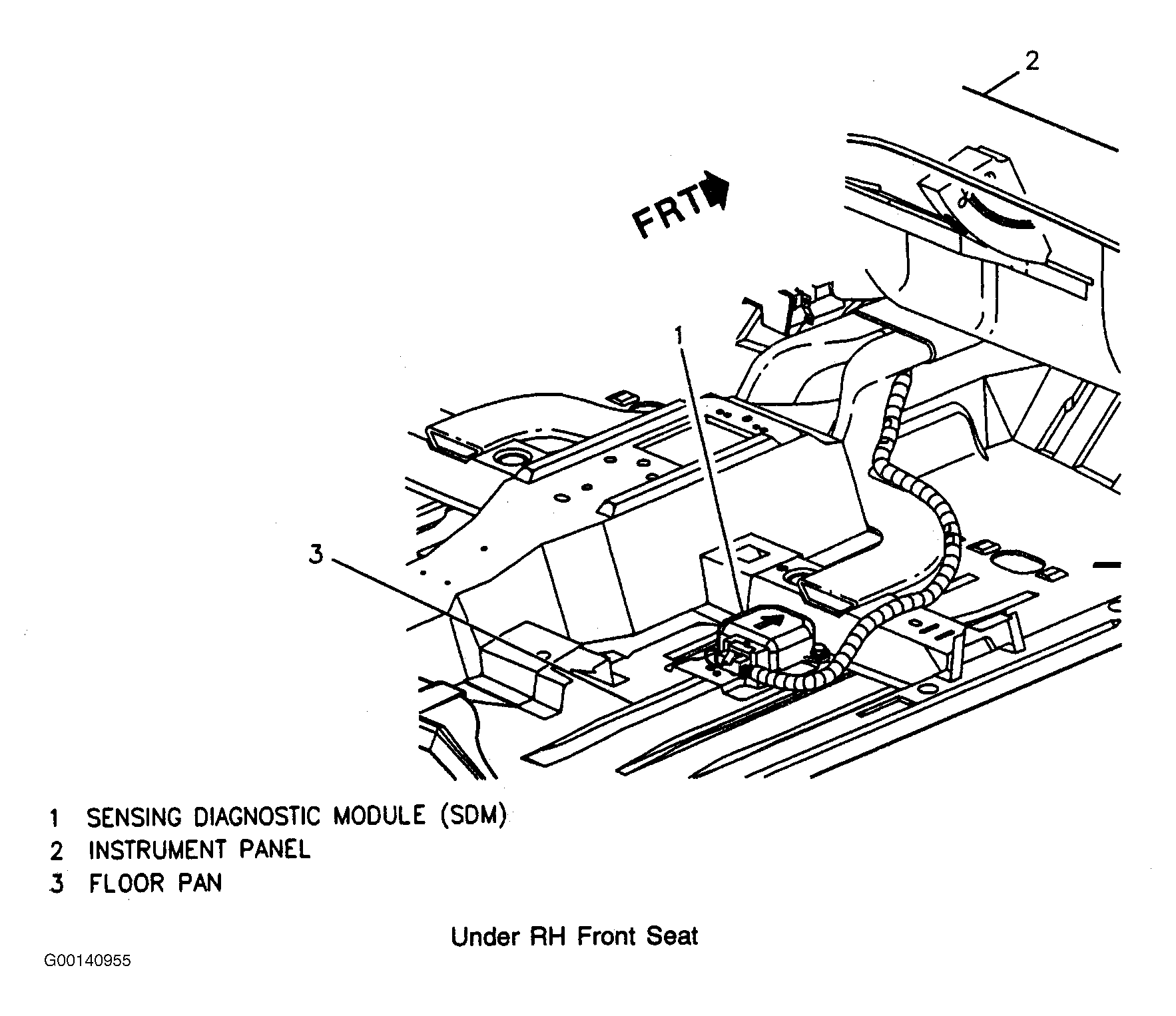

Fig 6: Locating SDM

G00140955

Courtesy of GENERAL MOTORS CORP.

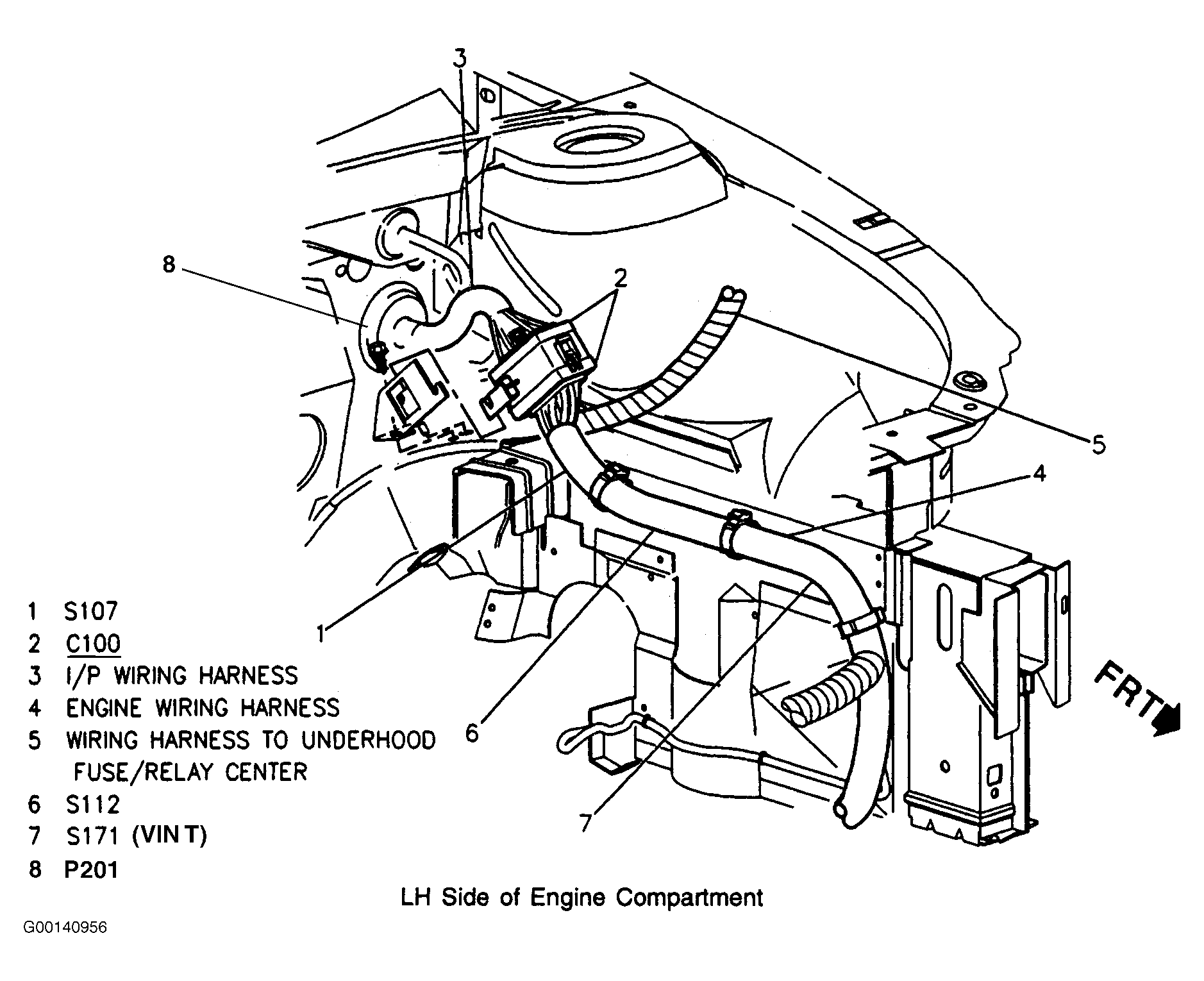

Fig 7: Locating C100, P201 & S171 (VIN T)

G00140956

Courtesy of GENERAL MOTORS CORP.

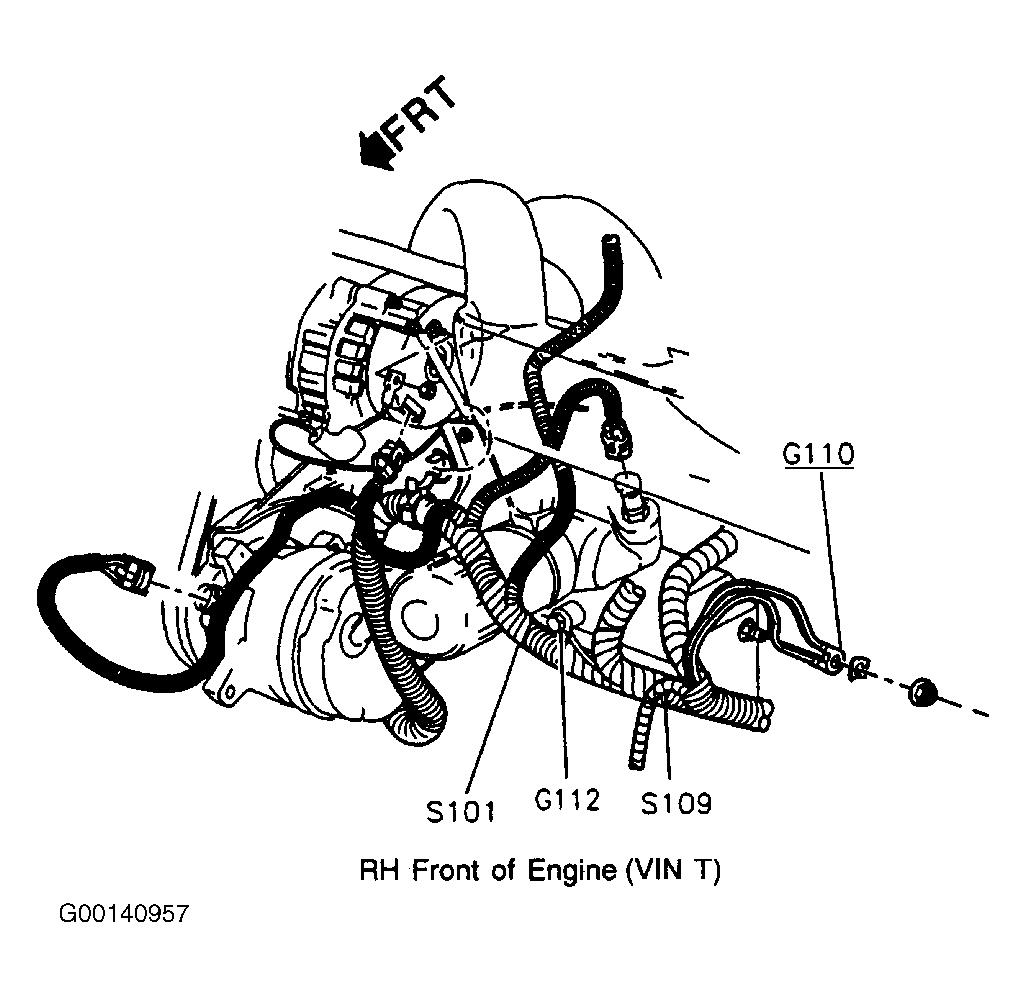

Fig 8: Locating G110 (VIN T)

G00140957

Courtesy of GENERAL MOTORS CORP.

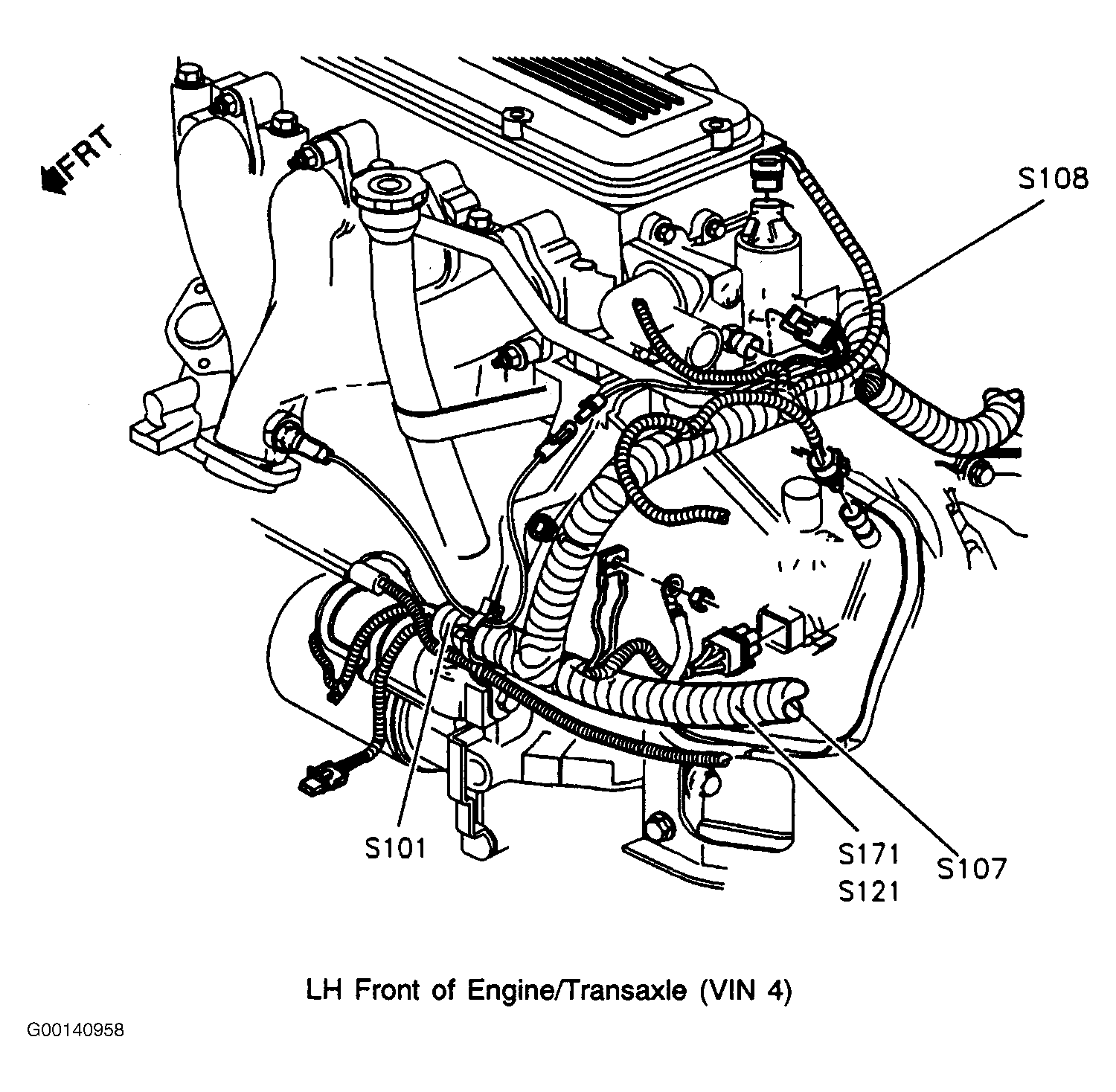

Fig 9: Locating S171 (VIN 4)

G00140958

Courtesy of GENERAL MOTORS CORP.
