PCM Connector C1

Fig 1: PCM C1 80-Pin Connector (Blue) - Terminal Identification
G00169938

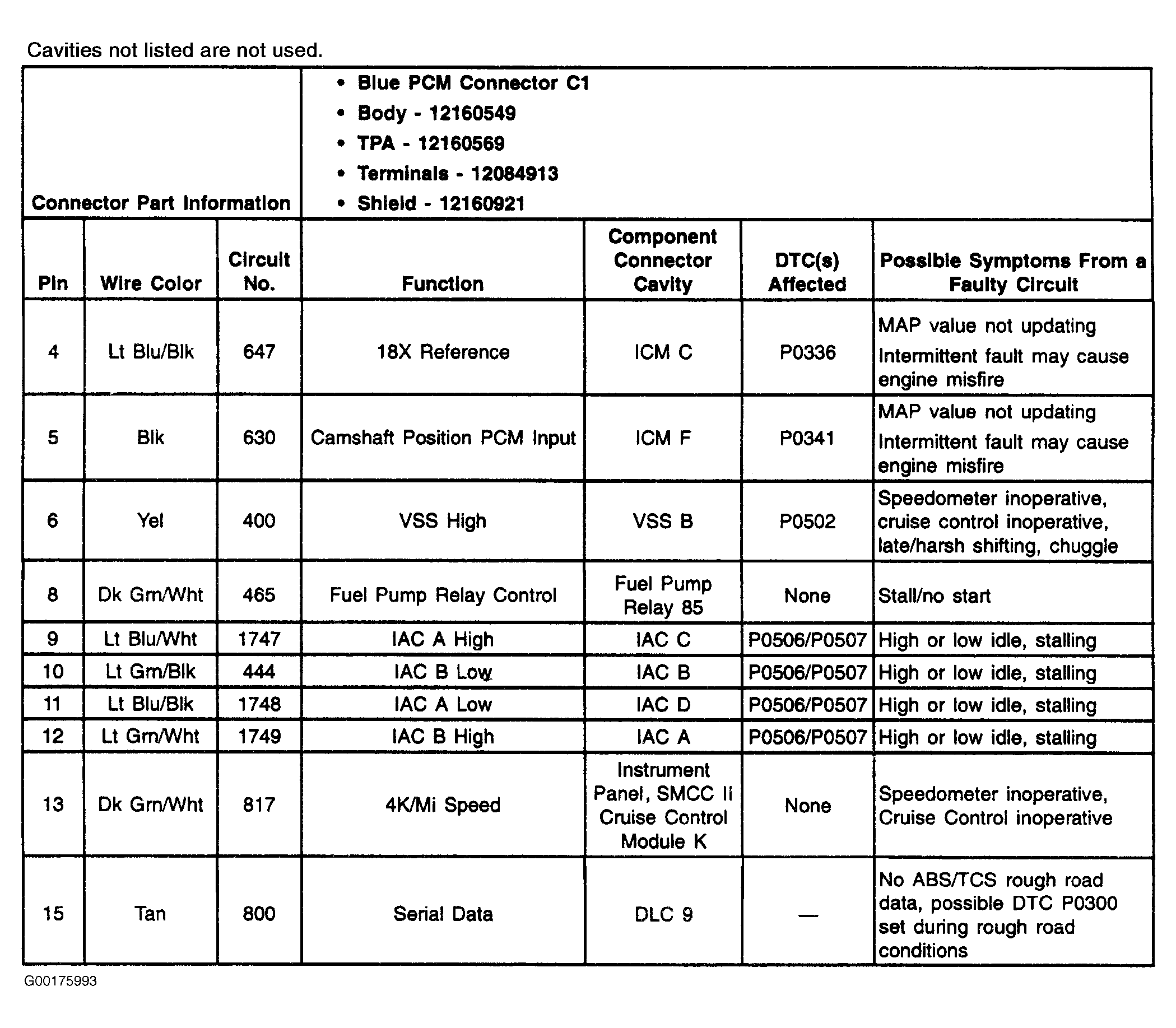

Fig 2: PCM C1 80-Pin Connector (Blue) - Legend (1 Of 3)
G00175993Courtesy of GENERAL MOTORS CORP.

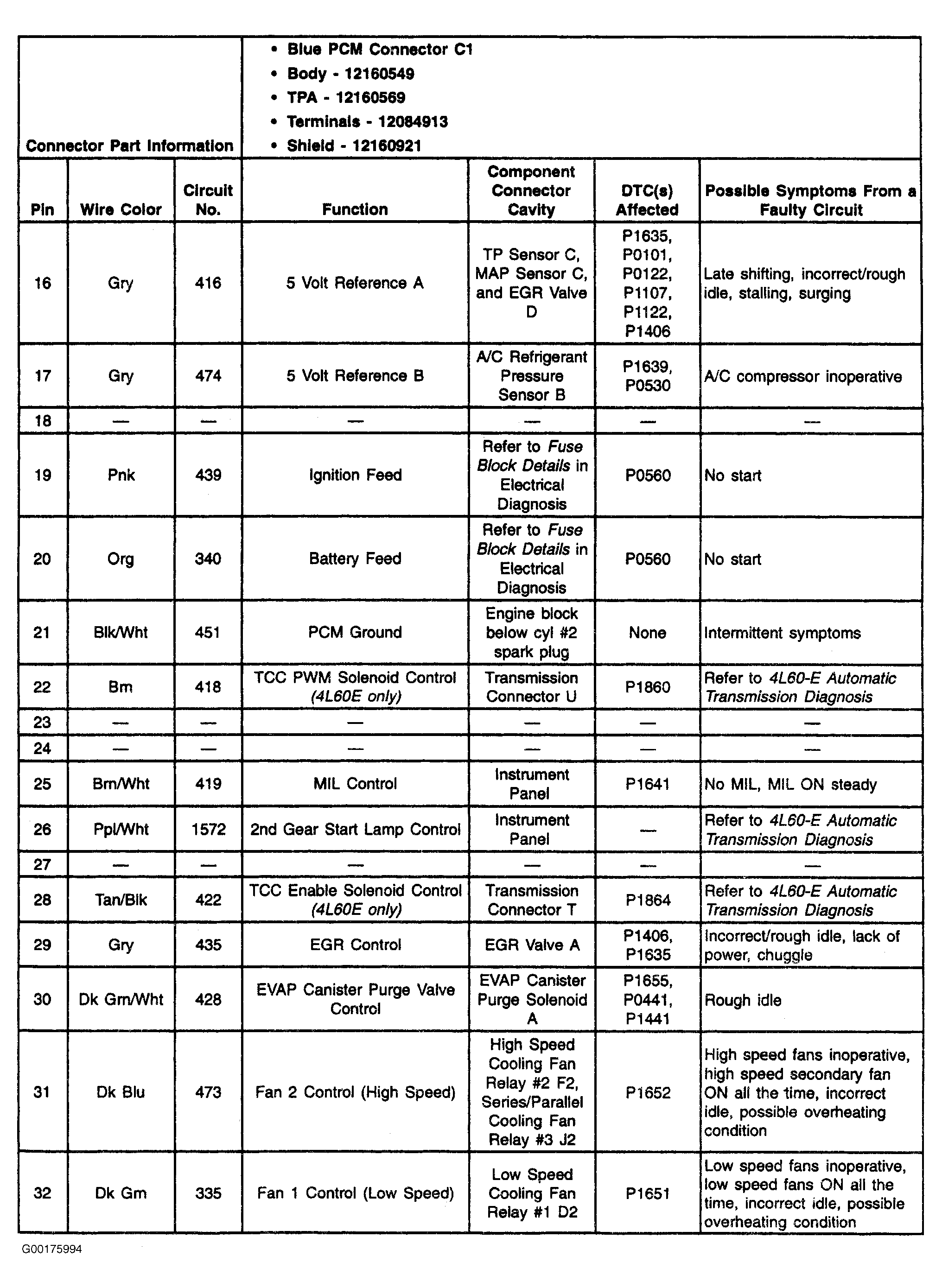

Fig 3: PCM C1 80-Pin Connector (Blue) - Legend (2 Of 3)
G00175994Courtesy of GENERAL MOTORS CORP.

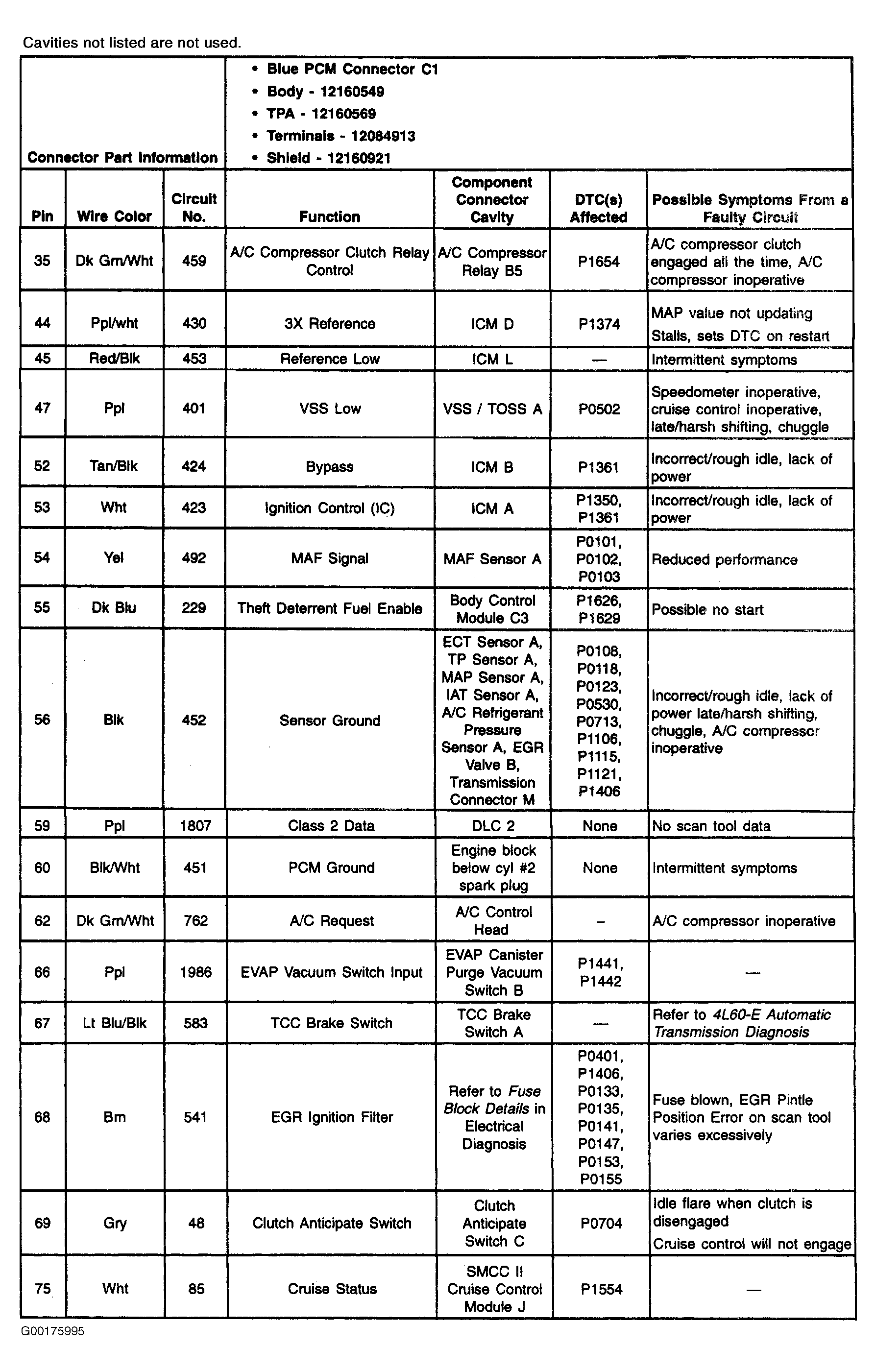

Fig 4: PCM C1 80-Pin Connector (Blue) - Legend (3 Of 3)
G00175995Courtesy of GENERAL MOTORS CORP.
