Power Window & Door Lock Switch (RH)

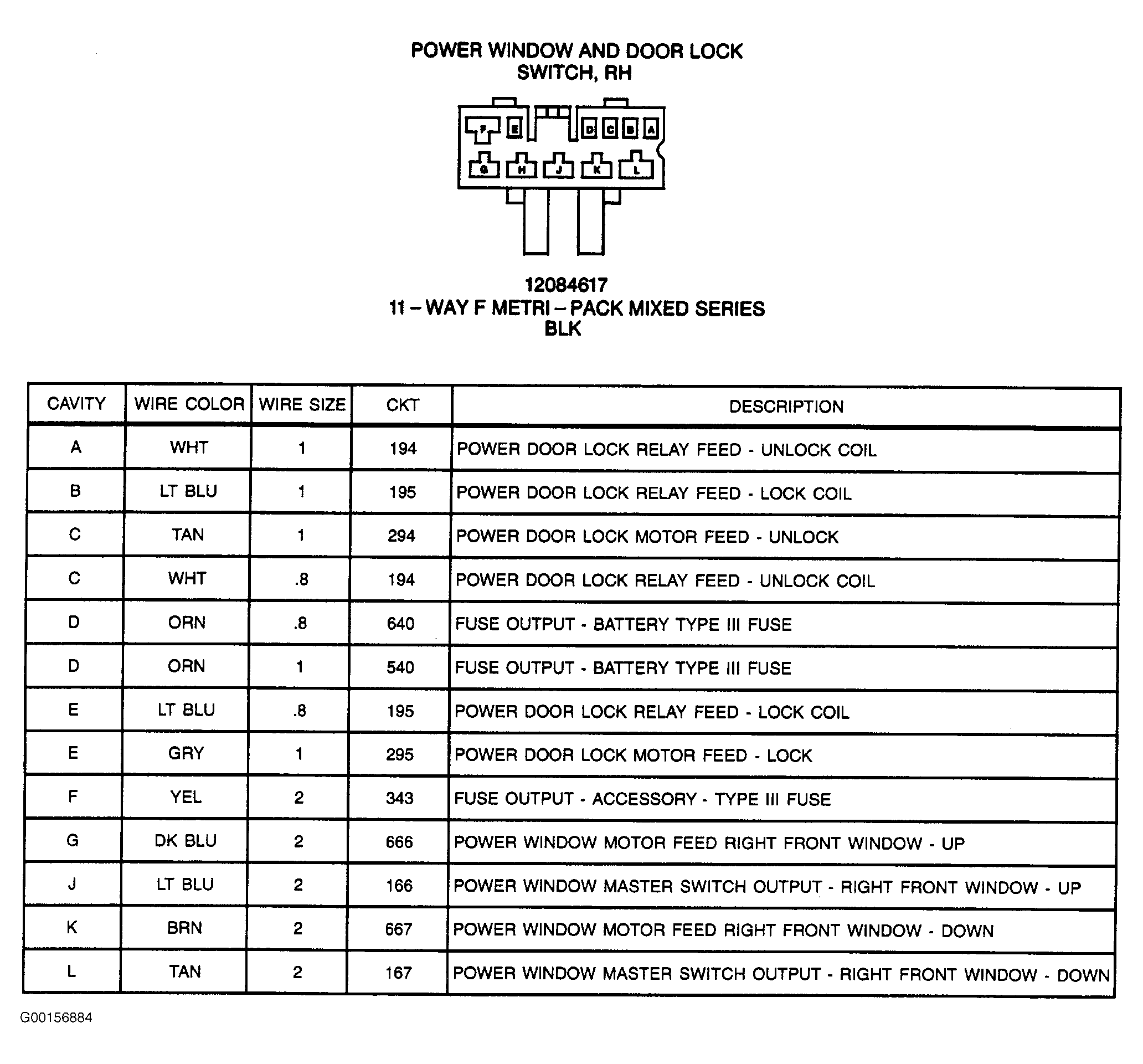

Fig 1: Power Window & Door Lock Switch (RH) - 11-Pin Connector, Black

G00156884

Courtesy of GENERAL MOTORS CORP.
