Power Window & Door Lock Switch (LH)

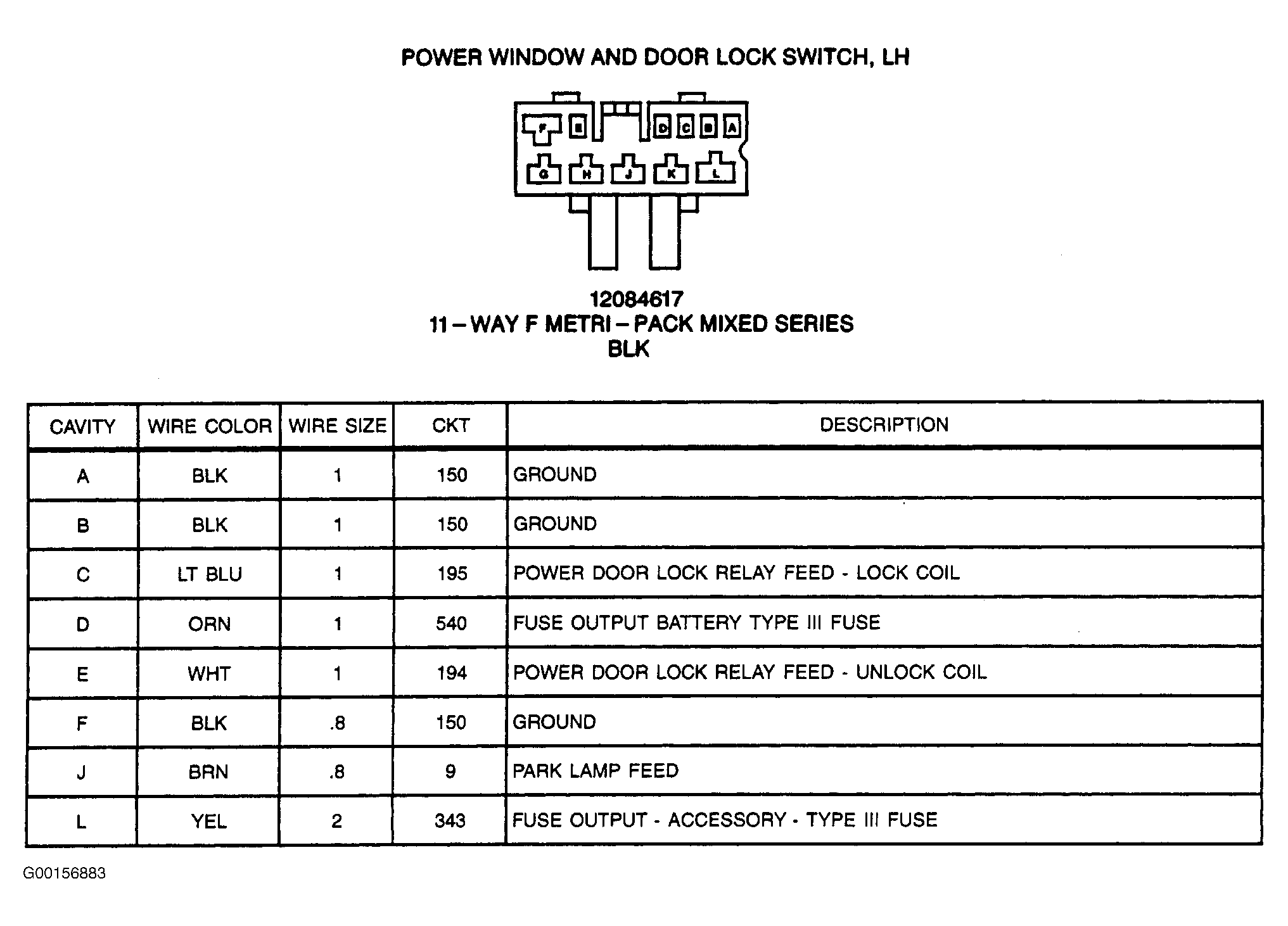

Fig 1: Power Window & Door Lock Switch (LH) - 11-Pin Connector, Black

G00156883

Courtesy of GENERAL MOTORS CORP.
